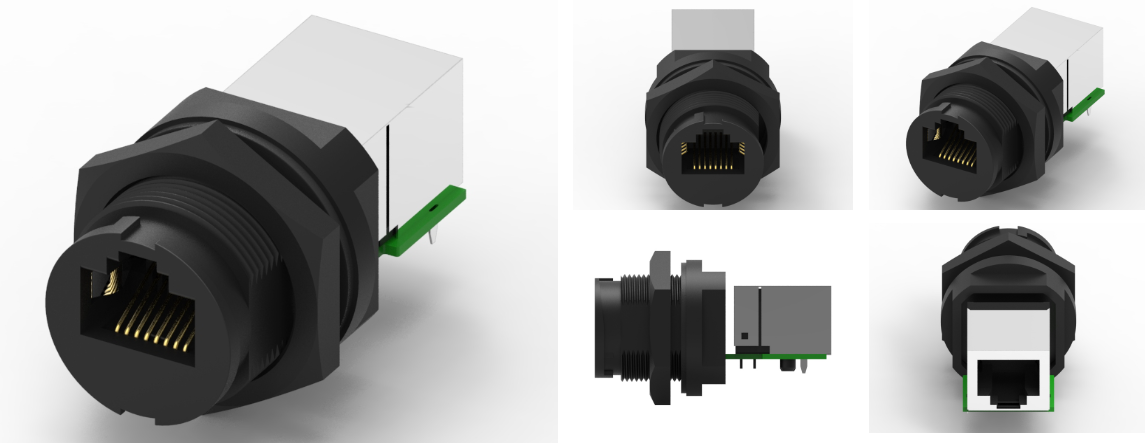

品名：RJ45 母头8PIN 防水转接器
1.材料：
1-1.外壳：PBTUL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：PA66 UL94V-0；颜色：黑色
1-4.圆形：SUS
1-5.垫片：硅胶；颜色：灰黑色
1-6. 螺母：PA66
2.完成：
2-1.触点：镀金
2-2.圆形：镀镍
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：125V AC
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
RJ45 母头 8PIN 防水转接器
RJ45 母头 8PIN 防水转接器是一种用于连接网络设备的配件，结合了标准 RJ45 接口和防水功能，适合在潮湿或户外环境中使用。它能够实现不同网络设备之间的信号转换，确保数据传输的可靠性。
主要特点
1.防水设计：
防护等级：通常达到 IP67 或更高级别，能有效阻止水和灰尘的进入，适合各种天气条件。
密封机制：采用 O 型圈或密封胶，确保连接部位的防水性，适配潮湿的环境。
2.RJ45 接口标准：
8PIN 配置：符合以太网标准，能够支持 10/100/1000Mbps 的网络传输速度。
广泛兼容性：与各种网络设备（如路由器、交换机、摄像头等）兼容，易于连接和替换。
3.耐久性：
优质材料：使用耐磨、高强度的塑料和金属组件，确保连接器在恶劣环境下的耐用性。
抗冲击：设计能承受一定的冲击和振动，适合工业和户外使用。
4.简单的安装与维护：
用户友好设计：简化连接过程，方便快速安装和拆卸，减少人工成本。
模块化结构：便于在需要时更换或升级设备，增加灵活性。
应用领域
1.户外网络设备：如远程监控摄像头、无线接入点、路由器，确保长期稳定的网络连接。
2.工业环境：在工厂自动化设备、控制系统中使用，适应各种恶劣的工作条件。
3.通信线路：用于户外或潮湿区域的网络布线，确保信号稳定。
使用注意事项
1.确保安装正确：在安装时确保连接紧密，避免水分渗透。
2.定期检查：定期检查转接器及密封圈的完好性，确保防水功能。
3.遵守电气参数：在额定电压和电流范围内使用，确保设备安全稳定运行。
4.保持干燥：尽量保持连接器内部干燥，避免因潮湿导致的故障。
总结
RJ45 母头 8PIN 防水转接器为网络设备提供了可靠的防水连接解决方案，特别适用于户外、工业和潮湿环境。它不仅确保了信号的稳定与高效，还提高了设备的耐用性和适应性，使其成为各种应用场景中的理想选择。如果需要进一步的信息或技术支持，欢迎联系技术员！
Product Name: RJ45 Female 8PIN Waterproof Adapter
1. Materials:
1-1. Shell: PBTUL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: PA66 UL94V-0； Color: Black
1-4. Circular: SUS
1-5. Gasket: Silicone; Color: Grey Black
1-6. Nut: PA66
2. Complete:
2-1. Contact: Gold plating
2-2. Circular: Nickel plated
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 125V AC
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
RJ45 Female 8PIN Waterproof Adapter
RJ45 female 8PIN waterproof adapter is an accessory used to connect network devices, combining standard RJ45 interface and waterproof function, suitable for use in humid or outdoor environments. It can achieve signal conversion between different network devices, ensuring the reliability of data transmission.
main features
1. Waterproof design:
Protection level: usually reaching IP67 or higher, it can effectively prevent water and dust from entering, suitable for various weather conditions.
Sealing mechanism: O-ring or sealant is used to ensure the waterproofness of the connection part and adapt to humid environments.
2. RJ45 interface standard:
8PIN configuration: Compliant with Ethernet standards, capable of supporting network transmission speeds of 10/100/1000Mbps.
Wide compatibility: Compatible with various network devices such as routers, switches, cameras, etc., easy to connect and replace.
3. Durability:
High quality materials: using wear-resistant and high-strength plastic and metal components to ensure the durability of the connector in harsh environments.
Impact resistance: Designed to withstand certain impacts and vibrations, suitable for industrial and outdoor use.
4. Simple installation and maintenance:
User friendly design: simplifies the connection process, facilitates quick installation and disassembly, and reduces labor costs.
Modular structure: facilitates the replacement or upgrade of equipment when needed, increasing flexibility.
application area
1. Outdoor network equipment: such as remote monitoring cameras, wireless access points, routers, to ensure long-term stable network connectivity.
2. Industrial environment: Used in factory automation equipment and control systems to adapt to various harsh working conditions.
3. Communication line: Used for network wiring in outdoor or humid areas to ensure stable signals.
Precautions for use
1. Ensure correct installation: Ensure tight connections during installation to avoid moisture infiltration.
2. Regular inspection: Regularly check the integrity of the adapter and sealing ring to ensure waterproof function.
3. Comply with electrical parameters: Use within the rated voltage and current range to ensure safe and stable operation of the equipment.
4. Keep it dry: Try to keep the inside of the connector dry to avoid malfunctions caused by moisture.
summary
The RJ45 female 8PIN waterproof adapter provides a reliable waterproof connection solution for network devices, especially suitable for outdoor, industrial, and humid environments. It not only ensures the stability and efficiency of the signal, but also improves the durability and adaptability of the equipment, making it an ideal choice in various application scenarios. If you need further information or technical support, please feel free to contact the technician!
