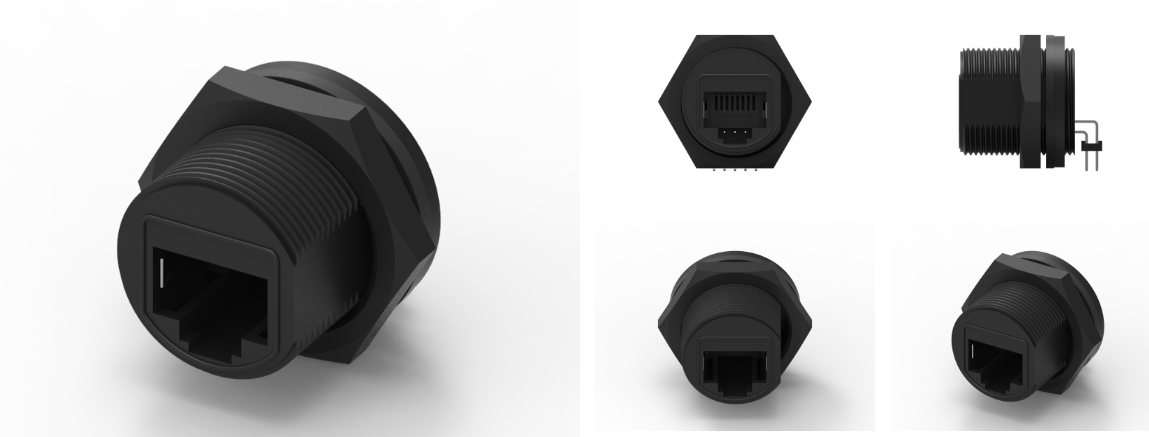

品名：RJ45 母头防水连接器
1.材料：
1-1. 外壳：PBT UL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：PA66 UL94V-0；颜色：黑色
1-4.接地：SUS 301
1-5.垫片：硅胶；颜色：黑色
1-6. 螺母：PA66
2.完成：
2-1.触点：镀金
2-2. 接地：镀镍
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：125VAC
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
RJ45 母头防水连接器
RJ45 母头防水连接器是专为网络通讯设计的一种连接器，具有防水特性，能够在潮湿或恶劣的环境中提供可靠的连接。它适用于多种应用，包括网络设备、监控系统、工业自动化和户外设备等。
主要特点
1.防水性能：
IP等级：通常达到 IP67 或更高的防护等级，能够有效防止水和灰尘的进入，适合户外和潮湿环境使用。
密封设计：采用 O 型圈、密封胶或其他形式的密封材料，确保连接处的防水性能。
2.RJ45 接口标准：
标准化设计：符合 IEEE 802.3 标准，支持 10/100/1000Mbps 的以太网连接。
8PIN 配置：提供 8 个引脚，确保数据和电源的稳定传输，广泛兼容各种网络设备。
3.耐用性：
材料选择：由高强度塑料和防腐蚀金属材质制造，能够抵御击打、振动和腐蚀。
耐拔拔插设计：支持多次插拔，适合频繁使用的工业环境，延长使用寿命。
3.安装简便：
用户友好：设计易于安装和拆卸，方便用户快速连接设备。
紧凑设计：占用空间小，适合在空间有限的环境中使用。
应用领域
1.网络设备：用于交换机、路由器、AP（接入点）等设备的连接。
2.监控摄像头：适用于 IP 摄像头和监控系统，确保数据传输的稳定性。
3.工业自动化：在生产线和自动化系统中使用，能够抵御恶劣的作业环境。
4.户外网络设备：适用于户外使用的设备，防止水分和尘土损害。
使用注意事项
1.插拔操作：在连接和断开时，务必找准插口，避免对连接器造成损害。
2.定期检查：定期检查密封组件，确保防水效果持久。
3.电气参数遵守：在额定电压和电流范围内使用，避免过载导致故障。
4.保持清洁：确保连接器内部干燥易用，避免污垢和水分影响电气性能。
总结
RJ45 母头防水连接器兼具高防水性能和良好的电气连接能力，适用于各种恶劣环境下的网络连接需求。它尤其适合户外网络设备、监控系统和工业应用。如果您需要更多技术支持或详细信息，欢迎联系技术员！
Product Name: RJ45 Female Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: PA66 UL94V-0； Color: Black
1-4. Grounding: SUS 301
1-5. Gasket: Silicone; Color: Black
1-6. Nut: PA66
2. Complete:
2-1. Contact: Gold plating
2-2. Grounding: Nickel plating
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 125VAC
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
RJ45 female waterproof connector
RJ45 female waterproof connector is a type of connector designed specifically for network communication, with waterproof characteristics that can provide reliable connections in humid or harsh environments. It is suitable for various applications, including network devices, monitoring systems, industrial automation, and outdoor equipment.
main features
1. Waterproof performance:
IP rating: typically reaching IP67 or higher protection level, effectively preventing water and dust from entering, suitable for outdoor and humid environments.
Sealing design: O-ring, sealant or other forms of sealing materials are used to ensure the waterproof performance of the connection.
2. RJ45 interface standard:
Standardized design: Complies with IEEE 802.3 standard and supports 10/100/1000Mbps Ethernet connections.
8PIN configuration: Provides 8 pins to ensure stable transmission of data and power, widely compatible with various network devices.
3. Durability:
Material selection: Made of high-strength plastic and corrosion-resistant metal materials, capable of withstanding impact, vibration, and corrosion.
Durable plug and unplug design: supports multiple insertions and removals, suitable for frequent industrial environments, and extends service life.
3. Easy installation:
User friendly: The design is easy to install and disassemble, making it convenient for users to quickly connect devices.
Compact design: takes up minimal space and is suitable for use in environments with limited space.
application area
1. Network equipment: used for connecting devices such as switches, routers, APs (access points), etc.
2. Monitoring camera: Suitable for IP cameras and monitoring systems, ensuring stable data transmission.
3. Industrial automation: Used in production lines and automation systems, it can withstand harsh working environments.
4. Outdoor network equipment: devices suitable for outdoor use to prevent damage from moisture and dust.
Precautions for use
1. Plug and unplug operation: When connecting and disconnecting, be sure to find the correct socket to avoid damage to the connector.
2. Regular inspection: Regularly inspect the sealing components to ensure long-lasting waterproof effect.
3. Compliance with electrical parameters: Use within the rated voltage and current range to avoid overload causing faults.
4. Keep clean: Ensure that the inside of the connector is dry and easy to use, and avoid dirt and moisture affecting electrical performance.
summary
RJ45 female waterproof connector combines high waterproof performance and good electrical connection capability, suitable for network connection needs in various harsh environments. It is particularly suitable for outdoor network equipment, monitoring systems, and industrial applications. If you need more technical support or detailed information, please feel free to contact a technician!
