KSD-SPD-06F1-01

KSD-SPD-06F1-01

  • 产品特性
  • 应用范围

图纸下载 样品申请

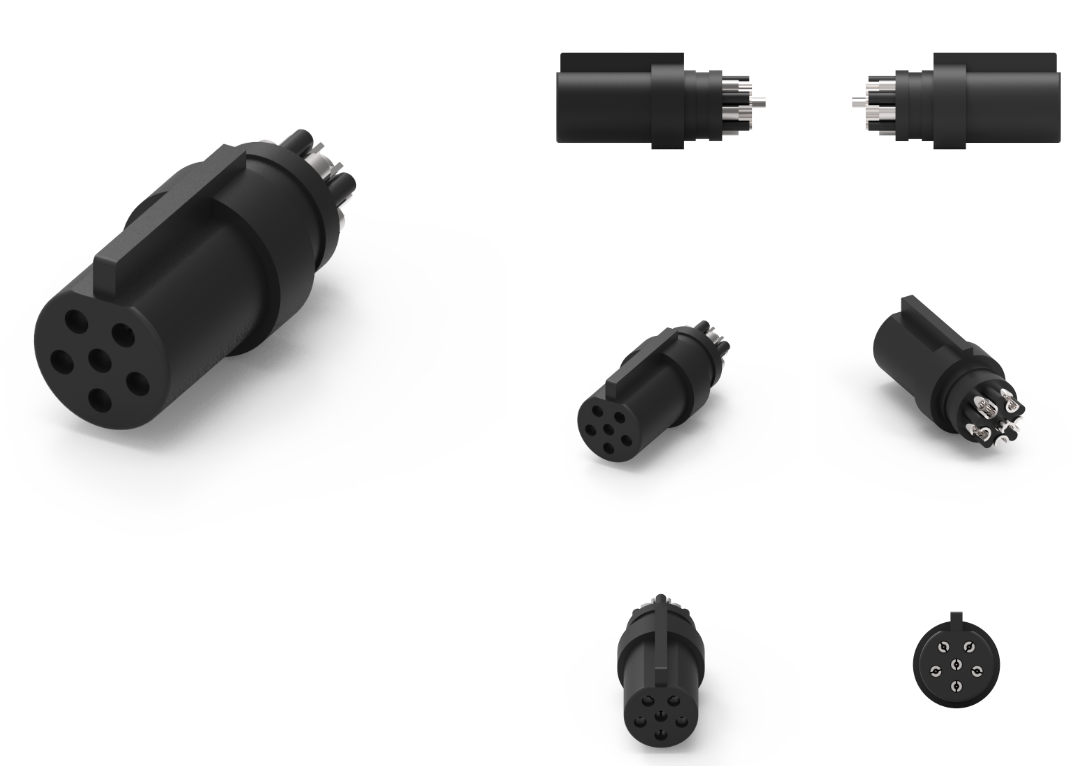

品名：Special Power DIN 母头线端成型式连接器
注：
1.材料：
1-1.外壳：PBT（黑色）
1-2.触点：磷青铜
2.电镀：
2-1.触点：最小30微英寸
镍表面SiIver镀层
3.安全：
3-1.额定电流：1A
3-2.额定电压：30V
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Special Power DIN 母头线端成型式连接器 是一种关键的连接组件，常用于电力和信号传输应用。相比公头连接器，母头连接器通常是接收端，用于与公头连接器结合实现电气连接。以下是对这一连接器的详细说明，包括其特征、应用及优点。

特征
1.设计结构：
母头接口：适合与公头连接器配合，确保稳定可靠的连接。

线端成型式：使其可以直接在电缆末端进行焊接或其他固定，提供稳固的电气连接。

2.多种配置：
提供多种针脚和极性配置，便于适应不同应用需求。例如，常见的针脚数量包括3针、5针、7针等。

3.优质材料：
通常采用高质量的材料（如镀金或镀银的优质金属）来提高导电性能和耐腐蚀性。

4.耐用性：
具备良好的机械强度和抗环境影响能力，能够适应高温、低温、湿气等多种环境条件。

应用领域
1.工业自动化：
广泛应用于工业设备，如传感器、执行器和控制系统中，提供高可靠性的电压和信号传输。

2.音响设备：
在专业音响设备中常用作音频信号输入接口，以保证音质的清晰度和稳定性。

3.医疗设备：
适用于医疗仪器和设备，能够确保安全、可靠的电力和信号连接。

4.电力系统：
在电力配电系统和通信设备中，用于连接和传输电能和信号，保证系统的正常运行。

安装与维护建议
1.焊接技巧：
在焊接过程中，使用合适的焊接工具和温度，确保连接牢固，并防止由于高温导致的材料损坏。

2.确认极性：
在连接时，确保连接器的极性匹配，防止短路或设备损坏。

3.定期检查：
定期检查连接器是否有氧化或脏污，保持接触面清洁，以避免信号衰减或连接不良。

4.遵循额定参数：
确保连接器在其额定电流和电压范围内工作，避免过载导致设备损坏或故障。

总结
Special Power DIN 母头线端成型式连接器 是一种可靠的连接解决方案，适用于多种电气设备和系统的高效连接。通过适当的安装和维护，可以确保其长期稳定的工作性能。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: Special Power DIN Female End Forming Connector
Note:
1. Materials:
1-1. Shell: PBT (black)
1-2. Contact: phosphor bronze
2. Electroplating:
2-1. Contact: Minimum 30 microinches
SiIver coating on nickel surface
3. Safety:
3-1. Rated current: 1A
3-2. Rated voltage: 30V
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The Special Power DIN female end molded connector is a critical connection component commonly used in power and signal transmission applications. Compared to male connectors, female connectors are usually the receiving end used to connect with male connectors for electrical purposes. The following is a detailed description of this connector, including its features, applications, and advantages.

features
1. Design structure:
Female connector interface: suitable for mating with male connectors to ensure stable and reliable connection.

Wire end forming type: allows it to be directly welded or otherwise fixed at the end of the cable, providing a stable electrical connection.

2. Multiple configurations:
Provide multiple pin and polarity configurations to adapt to different application requirements. For example, common pin numbers include 3, 5, 7, etc.

3. High quality materials:
High quality materials such as gold-plated or silver plated high-quality metals are usually used to improve conductivity and corrosion resistance.

4. Durability:
Has good mechanical strength and resistance to environmental influences, and can adapt to various environmental conditions such as high temperature, low temperature, and humidity.

application area
1. Industrial automation:
Widely used in industrial equipment such as sensors, actuators, and control systems, providing high reliability voltage and signal transmission.

2. Audio equipment:
It is commonly used as an audio signal input interface in professional audio equipment to ensure clarity and stability of sound quality.

3. Medical equipment:
Suitable for medical instruments and equipment, ensuring safe and reliable power and signal connections.

4. Power system:
In power distribution systems and communication equipment, it is used to connect and transmit electrical energy and signals to ensure the normal operation of the system.

Installation and maintenance recommendations
1. Welding techniques:
During the welding process, use appropriate welding tools and temperature to ensure a secure connection and prevent material damage caused by high temperatures.

2. Confirm polarity:
When connecting, ensure that the polarity of the connector matches to prevent short circuits or equipment damage.

3. Regular inspection:
Regularly check the connector for oxidation or dirt, keep the contact surface clean to avoid signal attenuation or poor connection.

4. Follow the rated parameters:
Ensure that the connector operates within its rated current and voltage range to avoid equipment damage or failure caused by overload.

summary
The Special Power DIN female end molded connector is a reliable connection solution suitable for efficient connection of various electrical equipment and systems. By proper installation and maintenance, its long-term stable performance can be ensured. If you have further questions or need specific technical parameters, please feel free to contact the technician!
