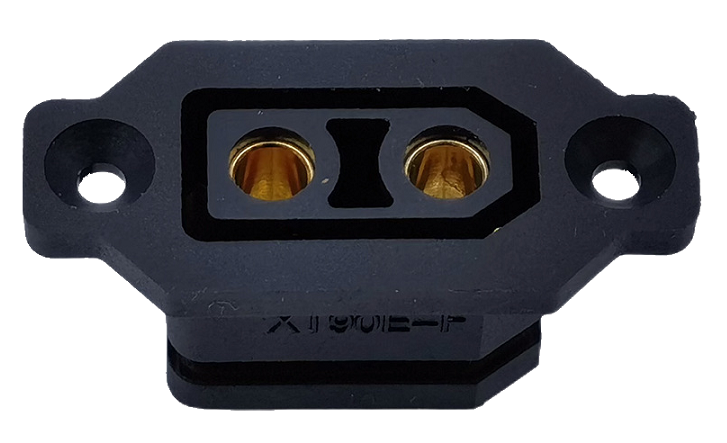

KSD-TX-90E-M-F

KSD-TX-90E-M-F

  • 产品特性
  • 应用范围

图纸下载 样品申请

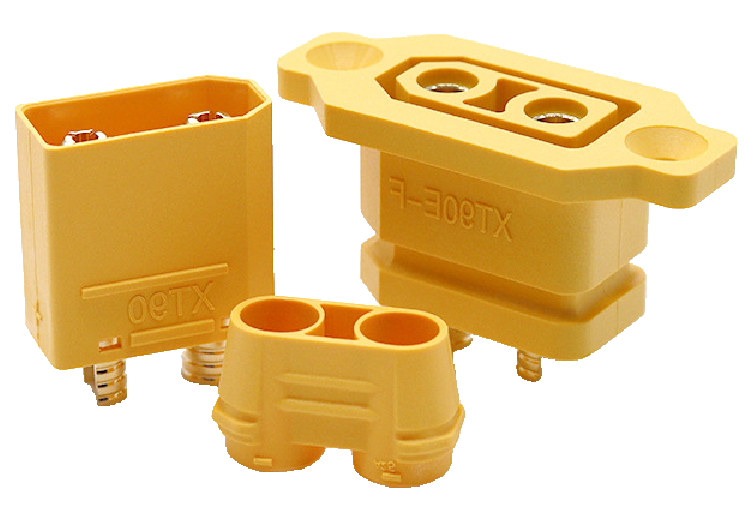

产品名称：TX90连接器

规格：
瞬间电流：90A
额定电流：45A
额定电压：DC500V
接触电阻：0.3mΩ
金属材质:镀金
推荐线规:8#/10#/12#
绝缘材质:PA6
工作温度：-20℃-120℃
推荐线规：10AWG
推荐使用次数：1000TIMES
阻燃等级:UL94-V0
产品符合：ROHS
品牌：科斯达开关KSDKG
产地：中国东莞


TX90连接器是一种用于电池连接和电气设备的连接器，通常在电动车、无人机、机器人以及其他高功率应用中使用。它们的设计特点包括：
1.高电流承载能力：TX90连接器通常能够承载高达90A的电流，适合需要高功率的应用。

2.耐用性：连接器通常具备良好的耐磨性和耐腐蚀性，适合在恶劣环境中使用。

3.易于连接和断开：TX90连接器设计为方便快速连接和断开，常见于需要频繁更换电池的应用。

4.安全性：连接器通常带有安全锁设计，避免误连接或脱落。

5.多样性：TX90连接器有多种配件和适配器，可以与不同类型的电缆和设备连接。


TX90连接器是一种电连接器，通常用于电池或高功率应用中。它的设计旨在提供安全、可靠的连接，以承载高电流负载。以下是TX90连接器的一些主要特点和用途：
特点
1.高电流承载能力：TX90通常能承受高达90安培的电流，非常适合用于电动自行车、电动滑板车和其他电动交通工具。

2.耐用材料：连接器通常采用高强度塑料和金属材料制造，以确保在不同环境条件下的耐用性。

3.安全设计：带有防反接设计，避免误插造成损坏，具有一定的防水功能（具体取决于型号）。

4.易于连接和断开：连接器的设计使得连接和断开相对简单，方便用户操作。

5.兼容性：TX90与多种设备和系统兼容，广泛应用于电动汽车、机器人和其他需要高功率连接的设备。

用途
电动交通工具：如电动自行车、电动滑板车等电池连接。
机器人技术：为电动马达和电池提供电源连接。
可再生能源：在太阳能和其他可再生能源系统中的电池连接。
其他高性能应用：如电源管理系统、工业设备等。

小结
TX90连接器因其高电流承载能力、安全设计和耐用性而受到广泛使用，适合各种需要高功率连接的应用。


TX90连接器是一种常用的电气连接器，广泛应用于电动模型、无人机、机器人等领域。其主要特点包括：
1.高导电性：TX90连接器一般采用优质金属材料，具有良好的导电性能，能够承受较大的电流。

2.耐高温：材料通常具有良好的耐热性能，适合在高温环境下工作。

3.牢固连接：TX90连接器设计通常较为紧凑，能够实现稳定的连接，防止在振动或拉力下松动。

4.易于连接与断开：连接器结构设计便于快速连接与拆卸，提高工作效率。

5.多种颜色选择：TX90连接器通常提供多种颜色选择，适合不同电源和设备的区分标识。

6.防尘防水：某些型号的TX90连接器具有较好的防尘和防水功能，为在恶劣环境下的使用提供了保障。

7.适用性广：该类连接器除了用于模型和机器人外，还能广泛应用于电池管理系统、电动工具等高功率设备。

在选用TX90连接器时，需根据具体应用需求和电气参数进行选择。



Product Name: TX90 Connector
Specifications:
Instantaneous current: 90A
Rated current: 45A
Rated voltage: DC500V
Contact resistance: 0.3m Ω
Metal Material: Gold Plated
Recommended wire gauge: 8 #/10 #/12#
Insulation material: PA6
Working temperature: -20 ℃ -120 ℃
Recommended wire gauge: 10AWG
Recommended usage times: 1000 Times
Flame retardant grade: UL94-V0
Product compliance: ROHS
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


TX90 connector is a type of connector used for battery connection and electrical equipment, typically used in electric vehicles, drones, robots, and other high-power applications. Their design features include:
1. High current carrying capacity: TX90 connectors are typically capable of carrying up to 90A of current, making them suitable for applications that require high power.

2. Durability: Connectors typically have good wear resistance and corrosion resistance, making them suitable for use in harsh environments.

3. Easy to connect and disconnect: The TX90 connector is designed for quick and easy connection and disconnection, and is commonly used in applications that require frequent battery replacement.

4. Safety: Connectors usually come with a safety lock design to prevent misconnection or detachment.

5. Diversity: The TX90 connector has a variety of accessories and adapters that can be connected to different types of cables and devices.


TX90 connector is an electrical connector commonly used in batteries or high-power applications. Its design aims to provide safe and reliable connections to carry high current loads. Here are some of the main features and uses of TX90 connectors:
characteristic
1. High current carrying capacity: TX90 can typically withstand currents up to 90 amperes, making it ideal for use in electric bicycles, electric scooters, and other electric vehicles.

2. Durable materials: Connectors are typically made of high-strength plastic and metal materials to ensure durability under different environmental conditions.

3. Safety design: With anti reverse connection design to avoid damage caused by accidental insertion, it has a certain waterproof function (depending on the model).

4. Easy to connect and disconnect: The design of the connector makes connection and disconnection relatively simple, making it convenient for users to operate.

5. Compatibility: TX90 is compatible with various devices and systems, and is widely used in electric vehicles, robots, and other devices that require high-power connections.

purpose
Electric transportation vehicles: such as electric bicycles, electric scooters, etc. with battery connections.
Robotics technology: providing power connections for electric motors and batteries.
Renewable energy: Battery connections in solar and other renewable energy systems.
Other high-performance applications: such as power management systems, industrial equipment, etc.

Summary
The TX90 connector is widely used due to its high current carrying capacity, safety design, and durability, making it suitable for various applications that require high-power connections.


TX90 connector is a commonly used electrical connector, widely used in fields such as electric models, drones, robots, etc. Its main features include:
1. High conductivity: TX90 connectors are generally made of high-quality metal materials, which have good conductivity and can withstand large currents.

2. High temperature resistance: Materials usually have good heat resistance and are suitable for working in high temperature environments.

3. Secure Connection: TX90 connectors are typically designed to be compact, enabling stable connections and preventing loosening under vibration or tension.

4. Easy to connect and disconnect: The connector structure design facilitates quick connection and disassembly, improving work efficiency.

5. Multiple color options: TX90 connectors typically offer multiple color options, suitable for distinguishing and labeling different power sources and devices.

6. Dustproof and Waterproof: Some models of TX90 connectors have good dustproof and waterproof functions, providing protection for use in harsh environments.

7. Wide applicability: This type of connector can be widely used in high-power devices such as battery management systems and power tools, in addition to models and robots.

When selecting TX90 connectors, it is necessary to choose according to specific application requirements and electrical parameters.
