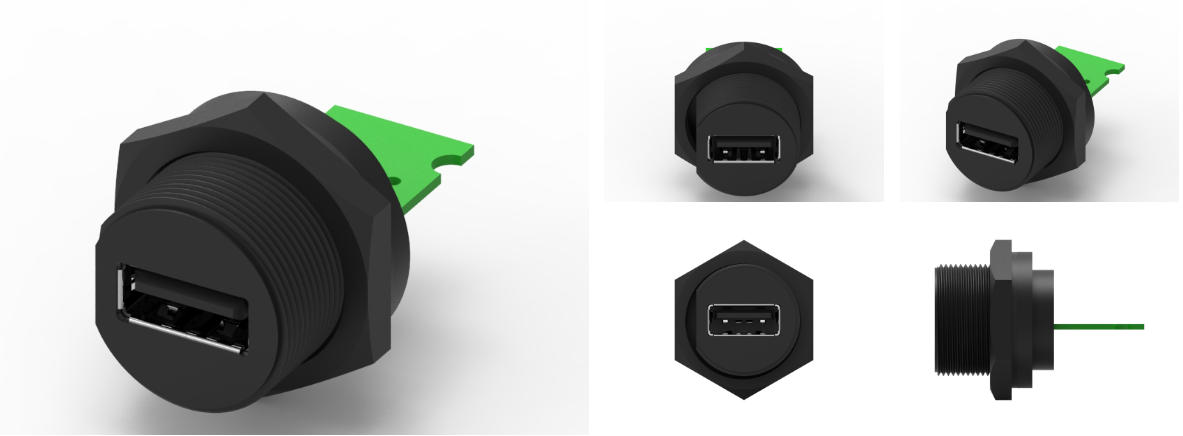

品名：USB 母头4PIN Type A前锁焊线式防水连接器(带PCB螺牙式)
1.材料：
1-1.外壳：PBT UL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：PA66 UL94V0；颜色：黑色，
1-4.圆形：SUS
1-5.垫片：硅；颜色：灰黑色。
1-6. 螺母：PA66
2.完成：
2-1.触点：镀金
2-2.圆形：镀镍
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：250V AC
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
USB 母头 4PIN Type A 前锁焊线式防水连接器（带 PCB 螺牙式）
USB 母头 4PIN Type A 前锁焊线式防水连接器（带 PCB 螺牙式） 是专为在恶劣环境中提供可靠连接而设计的一种连接器。这种连接器不仅具备防水防尘的特性，还具备简便的螺纹锁定机制，能够确保在震动或其他外力影响下的稳固连接。以下是该连接器的详细说明。
主要特点
1.防水防尘设计：
IP67/IP68 防护等级：该连接器能够有效防止水和灰尘的侵入，非常适合户外或工业环境的应用。
密封结构：连接器内部设计有密封圈，从而确保在连接时可达到良好的防护效果。
2.前锁焊线式连接：
焊线设计：通过焊线固定连接，确保良好的电气接触，适合各种电缆的长期连接使用。
前锁结构：在插拔时通过前锁的方式确保连接器的牢固性，减少受外力冲击导致的松动问题。
3.PCB 螺牙式设计：
螺牙锁定机制：通过螺纹将连接器固定在 PCB 板上，增强了连接器的稳固性，适用于高震动环境。
便捷性：此设计使得安装和拆卸变得简单快捷，用户能够轻松完成连接器的维护和更换。
4.4PIN 标准接口：
多功能性：符合 USB 4PIN 接口标准，支持数据传输和电源连接，适合多种设备。
高效性能：在保持稳定的电流和数据传输性能的同时，满足不同设备的需求。
5.耐用材料：
高强度构造：采用耐磨损和抗腐蚀的材料，确保连接器在各种环境条件下的可靠性。
长寿命设计：优化的结构设计确保连接器的长期可靠使用，即便在频繁插拔的情况下也能保持良好性能。
应用领域
1.工业自动化：广泛应用于自动化设备、控制系统、PLC 输入输出模块等场景。
2.户外设备：适用于环境监测设备、野外探测设备以及无人机等应用。
3.电力和交通：可用于汽车电子、交通信号设备和智能运输系统中，确保连接的安全、稳定。
4.医疗设备：适合医疗监测仪器和其他医疗设备，确保准确和安全的数据传输。
使用注意事项
1.焊接时注意：焊接时要控制好温度与时间，确保焊点质量，不得损坏连接器内部结构。
2.连接前检查：在使用前，确保连接器和焊线干净、无水分，确保良好的电气接触。
3.定期维护：定期检查连接器的密封性、螺纹锁定状态，以保证长期可靠使用。
4.避免化学品接触：尽量避免连接器接触强酸、强碱等化学物质，保护连接器的性能和寿命。
总结
USB 母头 4PIN Type A 前锁焊线式防水连接器（带 PCB 螺牙式） 是一款高性能、可靠性强的连接器，适合在复杂和恶劣环境中使用。其独特的防水防尘设计、稳固的螺牙式固定机制以及高效的焊接连接方式，使其成为工业、户外及医疗设备的重要配件。如果您有任何疑问或需要更多信息，欢迎联系技术员！
Product Name: USB Female Head 4PIN Type A Front Lock Solder Wire Waterproof Connector (with PCB Thread Type)
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: PA66 UL94V0； Color: Black,
1-4. Circular: SUS
1-5. Gasket: Silicon; Color: Grey black.
1-6. Nut: PA66
2. Complete:
2-1. Contact: Gold plating
2-2. Circular: Nickel plated
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 250V AC
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
USB Female 4PIN Type A Front Lock Solder Wire Waterproof Connector (with PCB Screw Thread)
The USB female 4PIN Type A front lock solder wire waterproof connector (with PCB thread type) is designed to provide reliable connections in harsh environments. This connector not only has waterproof and dustproof characteristics, but also has a simple thread locking mechanism to ensure a stable connection under vibration or other external forces. The following is a detailed description of the connector.
main features
1. Waterproof and dustproof design:
IP67/IP68 protection level: This connector can effectively prevent the intrusion of water and dust, making it very suitable for outdoor or industrial applications.
Sealing structure: The connector is designed with a sealing ring inside to ensure good protection during connection.
2. Front lock welding wire connection:
Solder wire design: By fixing the connection with solder wires, good electrical contact is ensured, suitable for long-term connection and use of various cables.
Front lock structure: During insertion and removal, the front lock is used to ensure the firmness of the connector and reduce looseness caused by external impact.
3. PCB thread design:
Screw locking mechanism: The connector is fixed to the PCB board through threads, enhancing the stability of the connector and suitable for high vibration environments.
Convenience: This design makes installation and disassembly simple and fast, allowing users to easily maintain and replace connectors.
4.4PIN standard interface:
Multifunctionality: Compliant with the USB 4PIN interface standard, supports data transfer and power connection, suitable for a variety of devices.
Efficient performance: Meet the needs of different devices while maintaining stable current and data transmission performance.
5. Durable materials:
High strength construction: using wear-resistant and corrosion-resistant materials to ensure the reliability of the connector under various environmental conditions.
Long life design: The optimized structural design ensures the long-term reliable use of the connector, maintaining good performance even in frequent plugging and unplugging situations.
application area
1. Industrial automation: widely used in automation equipment, control systems, PLC input and output modules, and other scenarios.
2. Outdoor equipment: suitable for applications such as environmental monitoring equipment, field exploration equipment, and drones.
3. Electricity and transportation: can be used in automotive electronics, traffic signal equipment, and intelligent transportation systems to ensure safe and stable connections.
4. Medical equipment: Suitable for medical monitoring instruments and other medical devices, ensuring accurate and secure data transmission.
Precautions for use
1. Attention during welding: Temperature and time should be controlled during welding to ensure the quality of the solder joints and not damage the internal structure of the connector.
2. Pre connection inspection: Before use, ensure that the connector and solder wire are clean and free of moisture, and ensure good electrical contact.
3. Regular maintenance: Regularly check the sealing and thread locking status of the connector to ensure long-term reliable use.
4. Avoid contact with chemicals: Try to avoid connectors from coming into contact with strong acids, alkalis, and other chemicals to protect the performance and lifespan of the connectors.
summary
The USB female 4PIN Type A front lock solder wire waterproof connector (with PCB thread type) is a high-performance and reliable connector suitable for use in complex and harsh environments. Its unique waterproof and dustproof design, stable screw type fixing mechanism, and efficient welding connection method make it an important accessory for industrial, outdoor, and medical equipment. If you have any questions or need more information, please feel free to contact the technician!
