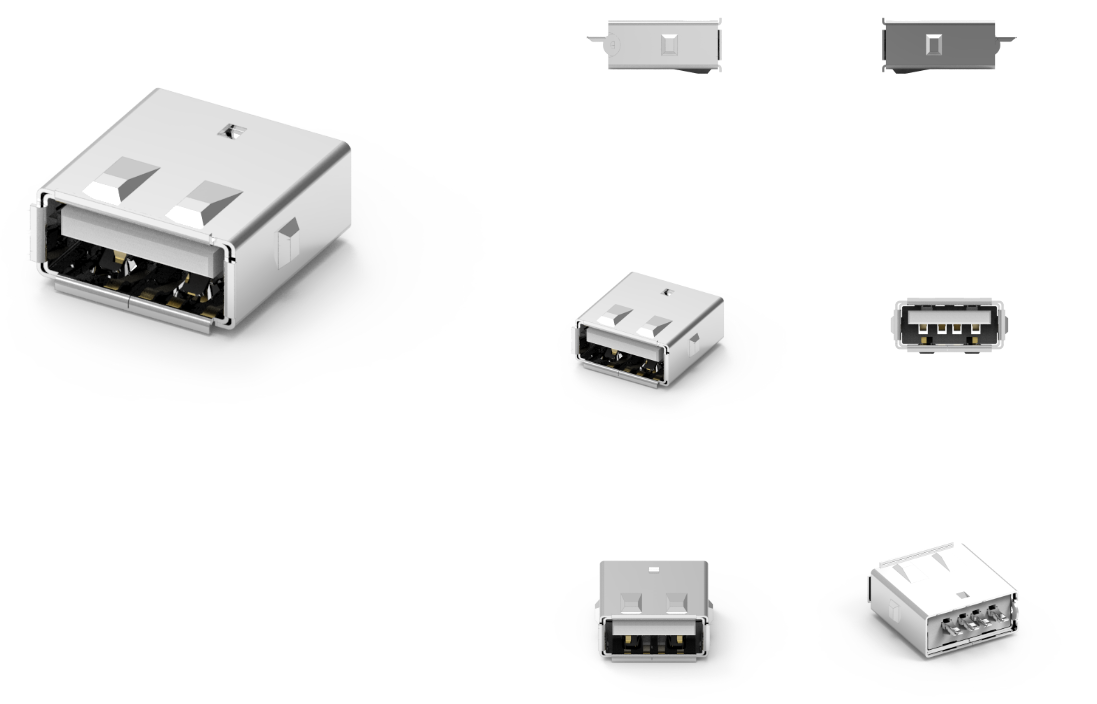

品名：USB 母头4PIN连接器
规格：
电气特性:
1.额定电流:1.5A/接触式端子
2.额定电压:30V DC
3.接触阻抗:最大30毫欧
4.耐电压:500V AC
5.绝缘阻抗:最小1000兆欧
原材料：
1.塑胶:
高温热塑性塑料，
LCP白色/黑色
2.端子:
触点：铜合金C2680
3.外壳:
外壳：SPCC/铜合金C2680
电镀：
1.端子：
接合区镀金30U“；焊盘上镀锡100U”
2.外壳：
镀镍60U“-80u”
品牌：科斯达开关KSDKG
产地：中国东莞
USB 母头 4PIN 连接器 是一种常见的连接器，广泛应用于电子设备中，用于数据传输和电源连接。尽管大多数标准 USB 连接器（如 USB 2.0、USB 3.0 等）通常有多个引脚，但某些定制或简化版 USB 接口可能只使用 4 个引脚。以下是该连接器的详细信息：
主要特点
1.引脚配置：
4PIN 的 USB 母头连接器通常对应于 USB 2.0 的基础配置，主要引脚功能如下：
引脚 1 (VBUS): 电源正极 (>5V)
引脚 2 (D-): 数据负极，用于差分信号传输
引脚 3 (D+): 数据正极，用于差分信号传输
引脚 4 (GND): 接地
2.设计与形状：
USB 母头连接器通常为矩形设计，便于插入 USB 公头连接器。
可以是通过焊接、插接等方式安装于印刷电路板（PCB）上。
3.材料与耐用性：
使用的材料通常具有良好的耐用性与绝缘性，例如塑料和镀金或镀镍金属，以提供良好的电气性能。
应用领域
1.电脑及配件：
包括键盘、鼠标、打印机等常用设备的USB接口。
2.充电设备：
多种便携式电子设备的充电接口，如移动电源、蓝牙耳机等。
3.嵌入式系统：
在一些小型嵌入式设备或产品中也可能使用简化的USB接口进行数据传输和供电。
4.工业应用：
某些工业设备中也可能使用USB母头连接器进行数据监控和管理。
安装与维护建议
1.焊接技术：
确保使用合适的焊接技术来焊接引脚，避免因过热导致的连接器损坏。
2.清洁与维护：
定期检查连接器，确保没有灰尘、污垢或腐蚀，保持良好的电气接触。
3.功能测试：
每次更换或安装新组件时，进行功能测试，确保数据传输和充电功能正常。
4.物理保护：
给连接器添加物理保护，如塑料盖或防尘套，以防止异物进入接口。
总结
USB 母头 4PIN 连接器 在电子产品中发挥着基础而重要的作用，尤其是在便携设备和简化的数据连接系统中。选择合适的连接器和注意安装细节可以保证系统的稳定性和可靠性。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: USB Female 4PIN Connector
Specifications:
Electrical characteristics:
1. Rated current: 1.5A/contact terminal
2. Rated voltage: 30V DC
3. Contact impedance: maximum 30 milliohms
4. Voltage endurance: 500V AC
5. Insulation impedance: minimum 1000 megaohms
raw material:
1. Plastic:
High temperature thermoplastic,
LCP White/Black
2. Terminals:
Contact: Copper alloy C2680
3. Shell:
Shell: SPCC/copper alloy C2680
electroplate:
1. Terminal:
30U gold plating on the bonding area; 100U tin plating on the solder pad
2. Shell:
Nickel plated 60U "-80U
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The USB female 4PIN connector is a common connector widely used in electronic devices for data transmission and power connection. Although most standard USB connectors (such as USB 2.0, USB 3.0, etc.) typically have multiple pins, some custom or simplified USB interfaces may only use 4 pins. The following is the detailed information of the connector:
main features
1. Pin configuration:
The 4PIN USB female connector usually corresponds to the basic configuration of USB 2.0, and the main pin functions are as follows:
Pin 1 (VBUS): Positive pole of power supply (>5V)
Pin 2 (D -): Data negative pole, used for differential signal transmission
Pin 3 (D+): Data positive pole, used for differential signal transmission
Pin 4 (GND): Grounding
2. Design and Shape:
USB female connectors are usually rectangular in design, making it easy to insert USB male connectors.
It can be installed on a printed circuit board (PCB) through soldering, plugging, and other methods.
3. Materials and Durability:
The materials used usually have good durability and insulation, such as plastic and gold-plated or nickel plated metals, to provide good electrical performance.
application area
1. Computer and accessories:
USB interfaces for commonly used devices such as keyboards, mice, printers, etc.
2. Charging equipment:
Charging interfaces for various portable electronic devices, such as power banks, Bluetooth earphones, etc.
3. Embedded systems:
Simplified USB interfaces may also be used for data transfer and power supply in some small embedded devices or products.
4. Industrial applications:
USB female connectors may also be used for data monitoring and management in certain industrial equipment.
Installation and maintenance recommendations
1. Welding technology:
Ensure the use of appropriate soldering techniques to solder the pins and avoid connector damage caused by overheating.
2. Cleaning and maintenance:
Regularly inspect connectors to ensure they are free of dust, dirt, or corrosion and maintain good electrical contact.
3. Functional testing:
Perform functional testing every time a new component is replaced or installed to ensure that data transmission and charging functions are functioning properly.
4. Physical protection:
Add physical protection to the connector, such as a plastic cover or dust cover, to prevent foreign objects from entering the interface.
summary
The USB female 4PIN connector plays a fundamental and important role in electronic products, especially in portable devices and simplified data connection systems. Choosing appropriate connectors and paying attention to installation details can ensure the stability and reliability of the system. If you have further questions or need specific technical parameters, please feel free to contact the technician!
