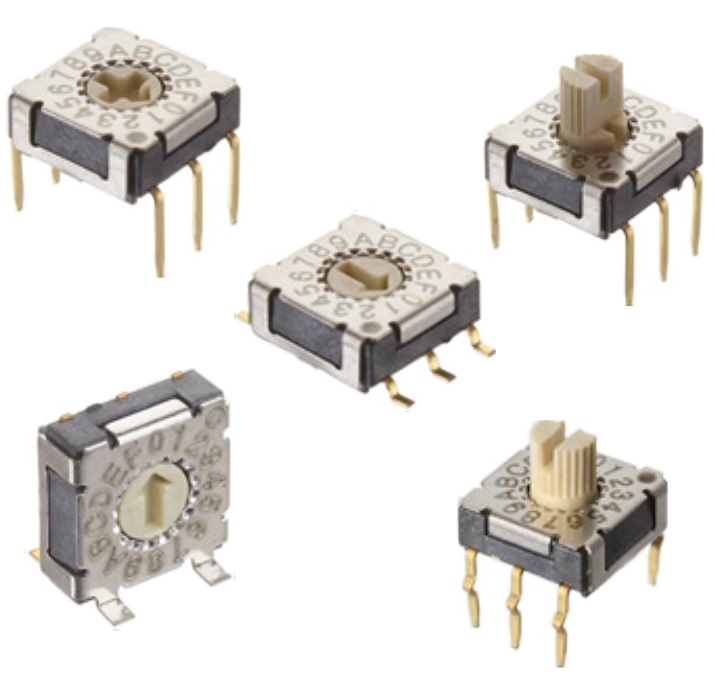

KSD-RTF series 技术特性标准规范触点额定值：100mA，DC 5V（开关）100mA，直流50V（非开关）机械和电气寿命：10000次循环初始接触电阻：最大100毫欧。绝缘电阻：最小100兆欧。工作温度：-40°C至85°C。储存温度：-40°C至85°C。操作力：最大200 gf。焊接条件：材料盖子：不锈钢基础：LCP执行器：LCP触点：磷青铜，镀金弹簧和导板：不锈钢端子：黄铜，镀金-铁焊：C/K/S/A/J端接：3s/350°C-波峰焊：C/K/A端接：5s/280°C-回流焊：S/J端接：10秒/260°C可焊性：根据C&K规范#448进行浸渍和外观可焊性测试包装：开关装在刚性分配管中仅限满管数量，这可能会影响订单数量。数量每根管子的开关因型号而异。胶带和卷筒包装仅提供“S”和“J”型端子。品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA产品应用：医疗电器、航模、无人机、灯具照明、通讯、控制手柄、速控设备、新能源、航模设备、仪表仪器、小家电、汽车等领域科斯达开关厂的KSD-RTF series 系列是最紧凑的 7.2mm x 7.2mm 超薄防水旋转拨码开关。开关新设计具有不同的触头和不同的端子选项。防护等级为 IP67编码器旋转开关
KSD-RTF series technical featuresstandard specification Contact rating: 100mA, DC 5V (switch)100mA, DC 50V (non switching)Mechanical and electrical lifespan: 10000 cyclesInitial contact resistance: maximum 100 milliohms.Insulation resistance: minimum 100 megaohms.Working temperature: -40 ° C to 85 ° C.Storage temperature: -40 ° C to 85 ° C.Operating force: maximum 200 gf.Welding conditions:Material ScienceLid: Stainless steelFoundation: LCPExecutor: LCPContact: phosphor bronze, gold-platedSpring and guide plate: stainless steelTerminal: brass, gold-plated-Iron welding: C/K/S/A/J end connection: 3s/350 ° C-Wave soldering: C/K/A end connection: 5s/280 ° C-Reflow soldering: S/J termination: 10 seconds/260 ° CWeldability: Conduct immersion and appearance weldability testing according to C&K specification # 448Packaging: The switch is installed in a rigid distribution pipeLimited to full tube quantity only, this may affect the order quantity. quantityThe switch of each pipe varies depending on the model. Tape and roll packaging onlyProvide "S" and "J" type terminals.Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDAProduct applications: medical appliances, model aircraft, drones, lighting fixtures, communication, control handles, speed control equipment, new energy, model aircraft equipment, instrumentation, small appliances, automobiles and other fieldsThe KSD-RTF series from Costa Switch Factory is the most compact 7.2mm x 7.2mm ultra-thin waterproof rotary dip switch. The new switch design features different contacts and terminal options. IP67 encoder rotary switch with protection levelCurrent Rating:100mACircuit:BCD ComplementMounting Type:SMTSealing:Sealed - IP67Illumination:No/NoneNumber of Positions:4Electrical Life Cycles:10,000Pitch:0.050" (1.27mm)Termination Style:AngledHeight Above Board:0.291" (7.4mm)Actuator Type:Slot Screw Drive (Arrow)Actuator Level:FlushWashable:Process Features:Contact Material:Phosphor BronzeContact Finish:Stainless SteelVoltage Rating:50VDCPackaging:Tube
