DAP-B-01

DAP-B-01

  • 产品特性
  • 应用范围

图纸下载 样品申请

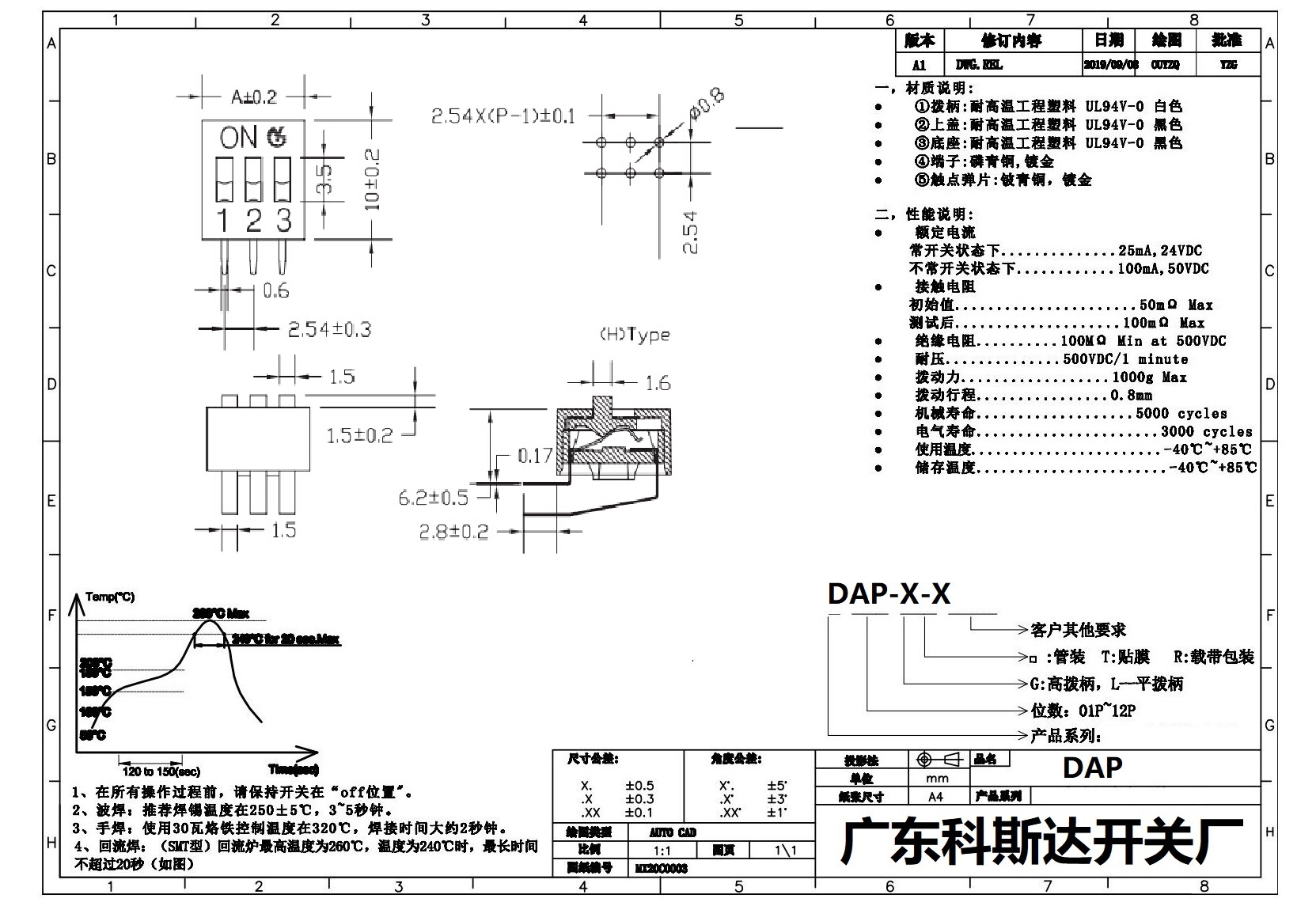

DIP拨码开关技术参数:

1. 额定负荷: DC 24V 25mA 2. 接触阻抗: 100mΩMAX

3. 绝缘阻抗: AC 500V 1Minute 4. 耐焊温度: 250±5°5s

5. 使用寿命: 3,000 cycles 6. 使用温度: -20 to 70

7. 使用湿度: 85% RH 8. 操作力: 800 gf Max

应用:汽车电器、工控设备、数码产品、安防、电脑、通讯产品、家用电器、智能交通等。

DIP switch technical parameters:

1. Rated load: DC 24V 25mA

2.  Contact resistance: 100mΩMAX

3. Insulation resistance: AC 500V 1Minute

4. Soldering resistance temperature: 250±5°5s

5. Service life: 3,000 cycles

6. Operating temperature: -20 to 70

7. Operating humidity: 85% RH

8.  Operating force: 800 gf Max

Application: automotive electrical appliances, industrial control equipment, digital products, security, computers, communication products, household appliances, intelligent transportation, etc.
