KSD-K5V series 技术特性
电气
最小/最大功率：0.02VA/1.0VA
最小/最大电压：20mVdc–32 Vdc
最小/最大电流：0.1mA–100mA
接触电阻：<150mΩ
绝缘电阻：>1GΩ初始值，>10MΩ湿热后
反弹时间：<5ms
环境保护
工作温度：-40˚C至85˚C
储存温度：-50˚C至85˚C
相对湿度：根据NF EN 60068-2-30，为90%至96%
防护：防尘、防熔剂
过载：最小40N
工艺流程
材料
无铅
触点：Au over Ni
焊接：Au/Ni
外壳：热塑性UL94 V0
包装
THT：60件/托盘；1800件/盒
SMT：每卷330件（卷ø360mm）；每箱1320件
PM：60件/托盘；2100件/箱
SMT焊接：与无铅焊接型材兼容
禁止清洗
THT焊接：与无铅焊接型材兼容
禁止清洗
PM焊接：低瓦烙铁（最大25-50瓦）。
焊接时间最多3秒，无需清洗
规格说明
功能：瞬时动作
触点布置：常开+常闭
端子：
THT：带定位销钉的通孔端子
SMT：带定位销钉的表面安装端子
PM：带线孔的面板安装焊接端子
1
操作力FA的公差为±25%。
操作力操作行程（总计
FA1牛顿生活旅行）
版本（克）（操作）mm（mm）
THT、SMT、PM 4.0（400）25000 1.2（2.4）

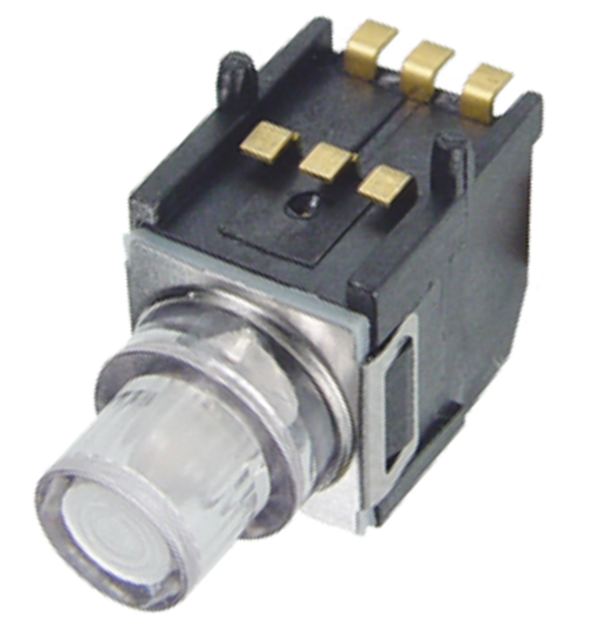

科斯达开关厂开发的KSD-K5V series系列带灯轻触开关配有高亮度 LED, 能够满足客户定制要求。凭借降低了的板空间使用量和其出色的人体工程学设计, K5V 非常适合网络基础设施、汽车和医疗应用
Technical characteristics of ksd-k5v series
electrical
electrical
Minimum/maximum power: 0.02va/1.0va
Minimum/maximum voltage: 20mvdc – 32 VDC
Minimum/maximum current: 0.1mA – 100mA
Contact resistance:<150m Ω
Insulation resistance:>1g Ω initial value,>10m Ω after damp heat
Rebound time:<5ms
environmental protection
Operating temperature: -40 ˚ C to 85 ˚ C
Storage temperature: -50 ˚ C to 85 ˚ C
Relative humidity: 90% to 96% according to NF en 60068-2-30
Protection: dust and flux proof
Overload: minimum 40n
process flow
material
unleaded
Contact: Au over Ni
Welding: au/ni
Housing: thermoplastic UL94 v0
packing
Tht: 60 pieces/pallet; 1800 pieces/box
SMT: 330 pieces per roll (roll ø 360mm); 1320 pieces per box
Pm:60 pieces/pallet; 2100 pieces/box
SMT welding: compatible with lead-free welding profiles
No cleaning
Tht welding: compatible with lead-free welding profiles
No cleaning
PM welding: low watt soldering iron (maximum 25-50 watts).
Welding time up to 3 seconds, no cleaning required
description
Function: instantaneous action
Contact arrangement: normally open+normally closed
Terminals:
Tht: through hole terminal with locating pin
SMT: surface mount terminal with locating pin
PM: panel mounting welding terminal with wire hole
one
The tolerance of the operating force FA is ± 25%.
Operating force operating stroke (total
FA1 Newton life travel)
Version (g) (operation) mm (mm)
Tht, SMT, PM 4.0 (400) 25000 1.2 (2.4)
Ksd-k5v series light touch switch developed by Costa switch factory is equipped with high brightness LED, which can meet customer customization requirements. With reduced board space usage and excellent ergonomic design, k5v is ideal for network infrastructure, automotive and medical applications
Current Rating:100mA @ 32VDC
Circuit:SPDT
Mounting Type:Surface Mount, Right Angle
Sealing:Sealed - IP40
Illumination:No/None
Switch Function:On-Mom
Electrical Life Cycles:25,000
Actuator Type:Round Button
Actuator Height off PCB, from Pins:12.40mm
Actuator Orientation:Side Actuated
Termination Style:Gull Wing
Footprint:9.45mm x 8.00mm
Illumination Voltage (Nominal):
Illumination Type, Color:
Operating Force:200gf
Additional Features:Tactile Feedback
Packaging:Tape & Reel
