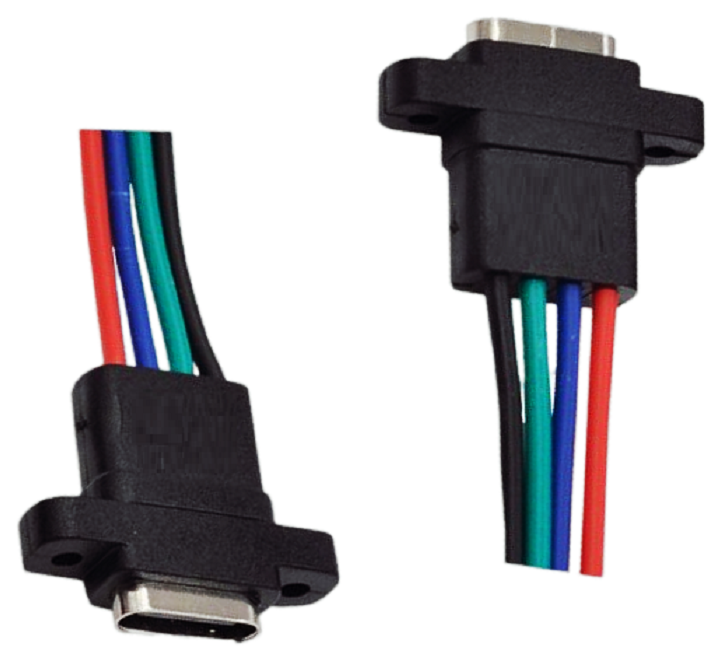

品名：防水Type c USB插座连接器
USB TypeC防水母座技术参数：
1.额定负荷: DC 30V 60V 1A 3A
2.接触电阻: ≤50mΩ
3.绝缘阻抗: ≥100mΩ DC250V
4.耐焊温度: 250℃＋5℃
5.使用湿度: ≤85%RH
6.插拔寿命:10,000 Cycles
7.插拔力:2-20N
8.品牌 科斯达 KOSOD KSDKG
防水USB Type-C接口是一种经过特殊设计和处理的USB Type-C连接器，能够在潮湿或浸水的环境中保持功能性。这种连接器通常具有以下特征：
1.密封设计：接口周围有密封材料，能够防止水分和灰尘进入。
2.材料选择：使用防水防腐的材料，如抗氧化金属和耐水塑料，以提高耐用性。
3.符合标准：一些防水USB Type-C接口可能符合IP67或IP68等防水等级标准，表示在一定深度和时间内可以完全防水。
4.应用场景：防水USB Type-C接口常用于户外设备、运动配件、医疗器械等需要在潮湿环境中工作的产品。
防水Type-C接口的特点主要包括以下几点：
1.防护等级：防水Type-C接口通常具备IP67或IP68的防护等级，能够防止水和灰尘的侵入，适合在恶劣环境中使用。
2.密封设计：该接口采用特殊的密封设计，可以在一定深度和时间内防止水分渗入，确保电连接的稳定性和安全性。
3.耐用性：防水Type-C接口通常用高强度材料制造，具有较高的耐磨性和抗冲击力，适合频繁使用。
4.兼容性：作为Type-C接口，它具有广泛的兼容性，支持多种设备的连接，包括手机、平板、笔记本电脑等。
5.快速充电和数据传输：防水Type-C接口通常支持快速充电和高速数据传输，确保用户在使用中的便利性。
6.便捷性：由于Type-C接口的正反插设计，用户在插拔时更加方便，不再需要担心插错方向。
总的来说，防水Type-C接口结合了防水特性与现代接口技术，为用户提供了更安全、更可靠的使用体验。
Product Name: Waterproof Type C USB Socket Connector
USB TypeC Waterproof Female Base Technical Parameters:
1. Rated load: DC 30V 60V 1A 3A
2. Contact resistance: ≤ 50m Ω
3. Insulation impedance: ≥ 100m Ω DC250V
4. Welding resistance temperature: 250 ℃+5 ℃
5. Humidity usage: ≤ 85% RH
6. Plug and unplug lifespan: 10000 cycles
7. Insertion and extraction force: 2-20N
8. Brand KOSOD KSDKG
The waterproof USB Type-C interface is a specially designed and processed USB Type-C connector that can maintain functionality in humid or flooded environments. This type of connector typically has the following characteristics:
1. Sealing design: There is sealing material around the interface to prevent moisture and dust from entering.
2. Material selection: Use waterproof and anti-corrosion materials, such as antioxidant metals and water-resistant plastics, to improve durability.
3. Compliant with standards: Some waterproof USB Type-C interfaces may comply with waterproof rating standards such as IP67 or IP68, indicating that they can be completely waterproof at a certain depth and time.
4. Application scenario: Waterproof USB Type-C interface is commonly used for outdoor devices, sports accessories, medical equipment and other products that need to work in humid environments.
The characteristics of waterproof Type-C interface mainly include the following points:
1. Protection level: Waterproof Type-C interfaces usually have a protection level of IP67 or IP68, which can prevent water and dust from entering and is suitable for use in harsh environments.
2. Sealing design: This interface adopts a special sealing design, which can prevent moisture from infiltrating at a certain depth and time, ensuring the stability and safety of the electrical connection.
3. Durability: Waterproof Type-C interfaces are usually made of high-strength materials, which have high wear resistance and impact resistance, making them suitable for frequent use.
4. Compatibility: As a Type-C interface, it has broad compatibility and supports the connection of multiple devices, including smartphones, tablets, laptops, etc.
5. Fast charging and data transmission: Waterproof Type-C interfaces typically support fast charging and high-speed data transmission, ensuring user convenience during use.
6. Convenience: Due to the forward and reverse plug design of the Type-C interface, users can easily plug and unplug without worrying about the wrong direction.
Overall, the waterproof Type-C interface combines waterproof features with modern interface technology, providing users with a safer and more reliable user experience.
