KSD-NY-WP1307-11

KSD-NY-WP1307-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

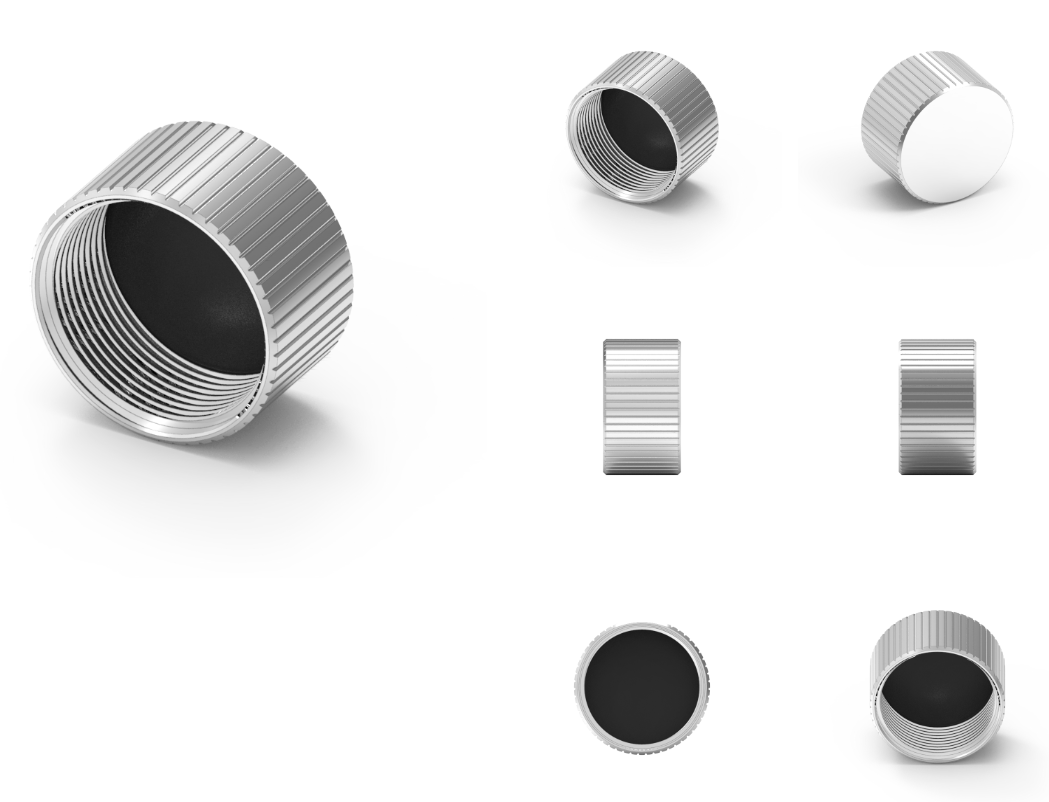

品名：DIN连接器M16 防水盖 防尘盖
1.材料：
1-1. 螺母：黄铜
1-2. 环：EPDM；颜色：黑色
2.完成：
2-1. 螺母：镀镍
1.材料：
1-1.盖：黄铜
1-2.外壳：不锈钢302
1-3.扣环：不锈钢430
1-4，珠链：不锈钢304
1-5.O型圈：EPDM；颜色：黑色
2.完成：
2-1.外壳：镀镍
2-2.头链：电抛光
2-3.扣环：电抛光
品牌：科斯达开关KSDKG
产地：中国东莞


DIN连接器 M16 防水盖与防尘盖概述
DIN连接器 M16是一种广泛应用于工业、自动化设备和电子设备中的标准连接器。为了保证连接器在严苛环境下的稳定性和可靠性，使用防水盖和防尘盖是非常重要的。这些盖子可以有效防止水分、灰尘及其他外部物质侵入连接器内部，从而保护连接器的性能和延长其使用寿命。

防水盖和防尘盖的主要特点

1.防水性能：
防水盖通常采用高质量的橡胶或塑料材料，并且能够达到IP67或更高的防护等级，确保连接器在潮湿环境下工作的可靠性。
具备良好的密封性，防止水和其他液体进入连接器，防止短路或其他电气故障。

2.防尘性能：
防尘盖能够有效阻挡灰尘、尘埃和其他颗粒物质进入连接器，降低因污染导致的接触不良现象。
确保在恶劣的工作环境中，连接器保持良好的电气性能。

3.耐用性：
采用耐高温、耐腐蚀的材料制造，确保防水盖和防尘盖在不同温度和化学环境下不易损坏。
设计上通常具有抗UV、抗老化的特性，能在户外环境中长时间使用。

4.简易安装与拆卸：
防水盖和防尘盖设计便于操作，使用者可以方便地安装和拆卸，避免连接器在不使用时暴露于外界环境中。

5.适应性强：
M16连接器的防水盖和防尘盖一般兼容多种型号，能够适应不同的应用场景。

应用领域
1.工业自动化：广泛应用于传感器、执行器和PLC等设备的连接，保护工业设备免受污染。

2.户外设备：用于户外监控、照明设备等，确保连接器在雨水和尘土中正常运行。

3.交通运输：应用于汽车、船舶等交通工具中的电气连接，抵御湿气和尘埃的侵入。

4.医疗设备：保护医疗器械连接器，确保其在潮湿和清洁环境中正常工作。

使用注意事项
1.定期检查：定期检查防水盖和防尘盖的密封性，确保无磨损或老化现象。

2.规范安装：在安装时，确保盖子完全覆盖连接器，避免出现缝隙而造成渗水或积尘。

3.选择合适的材质：根据使用环境选择合适的防水盖和防尘盖材料，以确保其能够抵抗特定的化学品或温度。

总结
DIN连接器 M16 防水盖和防尘盖是保护连接器在恶劣环境中发挥正常功能的关键组件。通过有效的防水和防尘性能，确保了连接器的可靠性及稳定性。这些防护装置不仅延长了设备的使用寿命，还大幅提升了设备整体性能。如果您有兴趣了解更多相关信息或寻找合适的产品，欢迎联系技术员！



Product Name: DIN connector M16 waterproof cover dustproof cover
1. Materials:
1-1.  Nut: Brass
1-2.  Ring: EPDM； Color: Black
2. Complete:
2-1.  Nut: Nickel plated
1. Materials:
1-1. Cover: Brass
1-2. Shell: Stainless Steel 302
1-3. Buckle: Stainless steel 430
1-4, Bead Chain: Stainless Steel 304
1-5. O-ring: EPDM； Color: Black
2. Complete:
2-1. Shell: Nickel plated
2-2. Head Chain: Electropolished
2-3. Buckle: Electropolished
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Overview of DIN connector M16 waterproof and dustproof cover
DIN connector M16 is a standard connector widely used in industrial, automation equipment, and electronic devices. It is very important to use waterproof and dustproof covers to ensure the stability and reliability of connectors in harsh environments. These covers can effectively prevent moisture, dust, and other external substances from entering the interior of the connector, thereby protecting its performance and extending its service life.

Main features of waterproof and dustproof covers

1. Waterproof performance:
Waterproof covers are usually made of high-quality rubber or plastic materials and can achieve a protection level of IP67 or higher, ensuring the reliability of connectors working in humid environments.
Has good sealing properties to prevent water and other liquids from entering the connector, and to prevent short circuits or other electrical faults.

2. Dustproof performance:
The dust cover can effectively block dust, dirt, and other particulate matter from entering the connector, reducing poor contact caused by pollution.
Ensure that the connector maintains good electrical performance in harsh working environments.

3. Durability:
Made of materials that are resistant to high temperatures and corrosion, ensuring that waterproof and dustproof covers are not easily damaged under different temperatures and chemical environments.
It is usually designed with UV resistance and anti-aging characteristics, and can be used in outdoor environment for a long time.

4. Easy installation and disassembly:
The waterproof and dustproof cover designs are easy to operate, and users can easily install and remove them, avoiding the connector from being exposed to the external environment when not in use.

5. Strong adaptability:
The waterproof and dustproof covers of M16 connectors are generally compatible with multiple models and can adapt to different application scenarios.

application area
1. Industrial automation: widely used in the connection of sensors, actuators, PLCs and other equipment to protect industrial equipment from pollution.

2. Outdoor equipment: used for outdoor monitoring, lighting equipment, etc., to ensure that the connector operates normally in rainwater and dust.

3. Transportation: Used for electrical connections in vehicles such as cars and ships to resist the intrusion of moisture and dust.

4. Medical equipment: Protect medical device connectors to ensure they function properly in damp and clean environments.

Precautions for use
1. Regular inspection: Regularly check the sealing of waterproof and dustproof covers to ensure that there is no wear or aging.

2. Standardized installation: During installation, ensure that the cover completely covers the connector to avoid gaps that may cause water leakage or dust accumulation.

3. Choose appropriate materials: Choose suitable waterproof and dustproof cover materials according to the usage environment to ensure that they can resist specific chemicals or temperatures.

summary
The waterproof and dustproof covers of DIN connector M16 are key components that protect the connector from functioning properly in harsh environments. The reliability and stability of the connector are ensured through effective waterproof and dustproof performance. These protective devices not only extend the service life of the equipment, but also significantly improve the overall performance of the equipment. If you are interested in learning more about relevant information or finding suitable products, please feel free to contact our technicians!
