产品图纸（PDF）：KSD-TLS series 下载

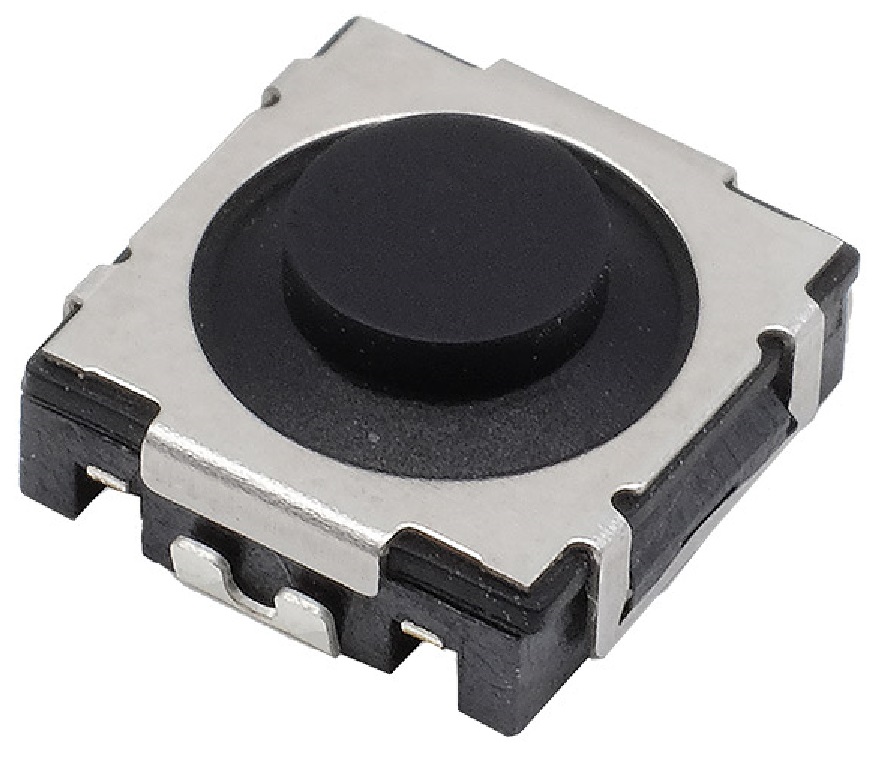

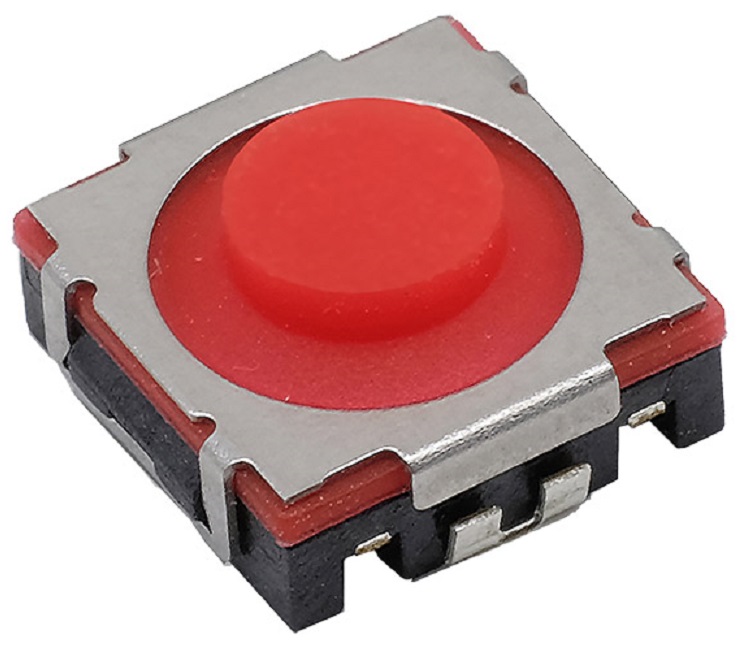

KSD-TLS series 技术特性 KSD-TLS 硅胶系列柔和声音轻触开关16V直流50mA电气寿命：300000至500000接触电阻（初始）：<100mΩ可焊性：无铅回流焊工艺符合IEC61760-1绝缘强度：>250伏/秒工作温度：-40°C至90°C绝缘电阻：>100 MΩ科斯达开关厂的KSD-TLS series 硅胶轻触开关是新外形尺寸 (8.6 x 8.40 x 3.95 mm) 的表面贴装新增轻触开关系列, 具有硅胶触头和扁平的外壳, 可提供柔和的声音, 以实现正向的触觉反馈。开关的硅胶触头和预行程有助于在可能的预加载情况下简化公差管理
KSD-TLS series Technical characteristicsKSD-TLS Silicone Series Soft Sound Touch Switch16V DC 50mAElectrical lifespan: 300000 to 500000Contact resistance (initial):<100m ΩWeldability:Lead free reflow soldering process complies with IEC61760-1Insulation strength:>250 volts per secondWorking temperature: -40 ° C to 90 ° CInsulation resistance:>100 M ΩThe KSD-TLS series silicone tactile switch from Costa Switch Factory is a new surface mount tactile switch series with new external dimensions (8.6 x 8.40 x 3.95 mm), featuring silicone contacts and a flat housing that provides soft sound for positive tactile feedback. The silicone contacts and pre stroke of the switch help simplify tolerance management under possible preloading conditions
