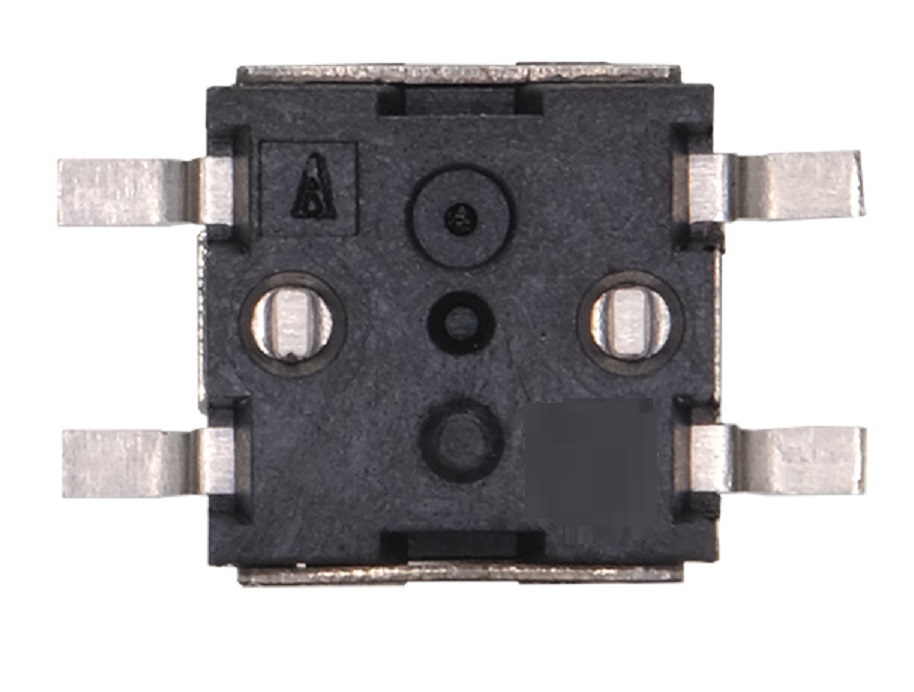

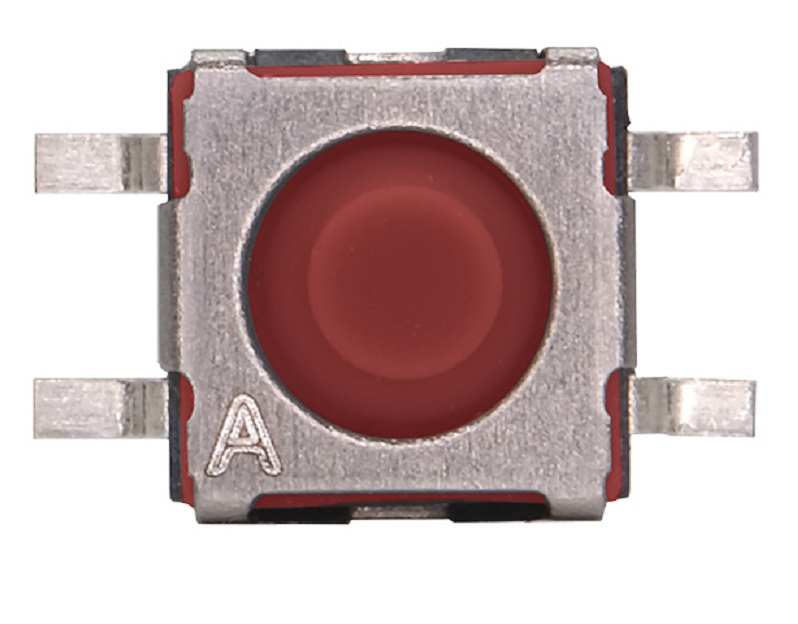

KSD-TLSM series 技术特性
6MM紧凑型顶部安装耐用 SMT硅胶轻触开关
功能：瞬时动作
触点排列：SPDT、NC
端子：SMT端子
行程：0.3±0.2毫米
机械
使用寿命：2000000次循环
电气
电压：直流1V至16V
电流：10µA至50mA
接触电阻：最大200mΩ。
测试后最大500mΩ
绝缘电阻：最小100 MΩ。
介质电压：交流250V
环境的
工作温度：-40˚C至90˚C
储存温度：-40˚C至90˚C
流程
焊接：该组件适用于以下情况
方法：红外线回流焊
IEC61760-1
包装每卷1100件
科斯达开关厂的KSD-TLSM series 紧凑型顶部安装耐用 SMT硅橡胶轻触开关是科斯达开关厂 产品组合的新成员, SPDT 解决方案具有超长的使用寿命, 可满足工业、电梯和游戏应用的需求。KSD-TLSM 轻触开关系列具有 6.0 × 6.1 mm 的紧凑尺寸, 3.45 mm 产品高度的超薄外形。开关提供 2N 的操作力, 0.3 mm 的行程和 2M 的长使用寿命。
KSD-TLSM series Technical characteristics
6MM compact top mounted durable SMT silicone touch switch
Function: Instantaneous action
Contact arrangement: SPDT, NC
Terminal: SMT terminal
Journey: 0.3 ± 0.2 millimeters
Mechanics
Service life: 2000000 cycles
electrical
Voltage: DC 1V to 16V
Current: 10 µ A to 50mA
Contact resistance: maximum 200m Ω.
Maximum 500m Ω after testing
Insulation resistance: minimum 100 M Ω.
Dielectric voltage: AC 250V
The environment
Working temperature: -40 ° C to 90 ° C
Storage temperature: -40 ° C to 90 ° C
technological process
Welding: This component is suitable for the following situations
Method: Infrared reflow soldering
IEC61760-1
Packaging 1100 pieces per roll
The KSD-TLSM series compact top mounted durable SMT silicone rubber tactile switch from Costa Switch Factory is a new member of Costa Switch Factory's product portfolio. The SPDT solution has a long service life and can meet the needs of industrial, elevator, and gaming applications. The KSD-TLSM tactile switch series has a compact size of 6.0 × 6.1 mm and an ultra-thin appearance with a product height of 3.45 mm. The switch provides 2N operating force, 0.3mm stroke, and 2M long service life.
