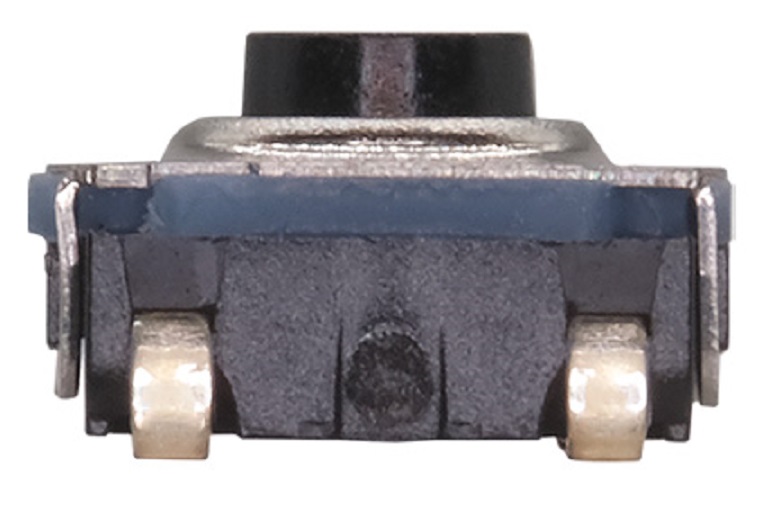

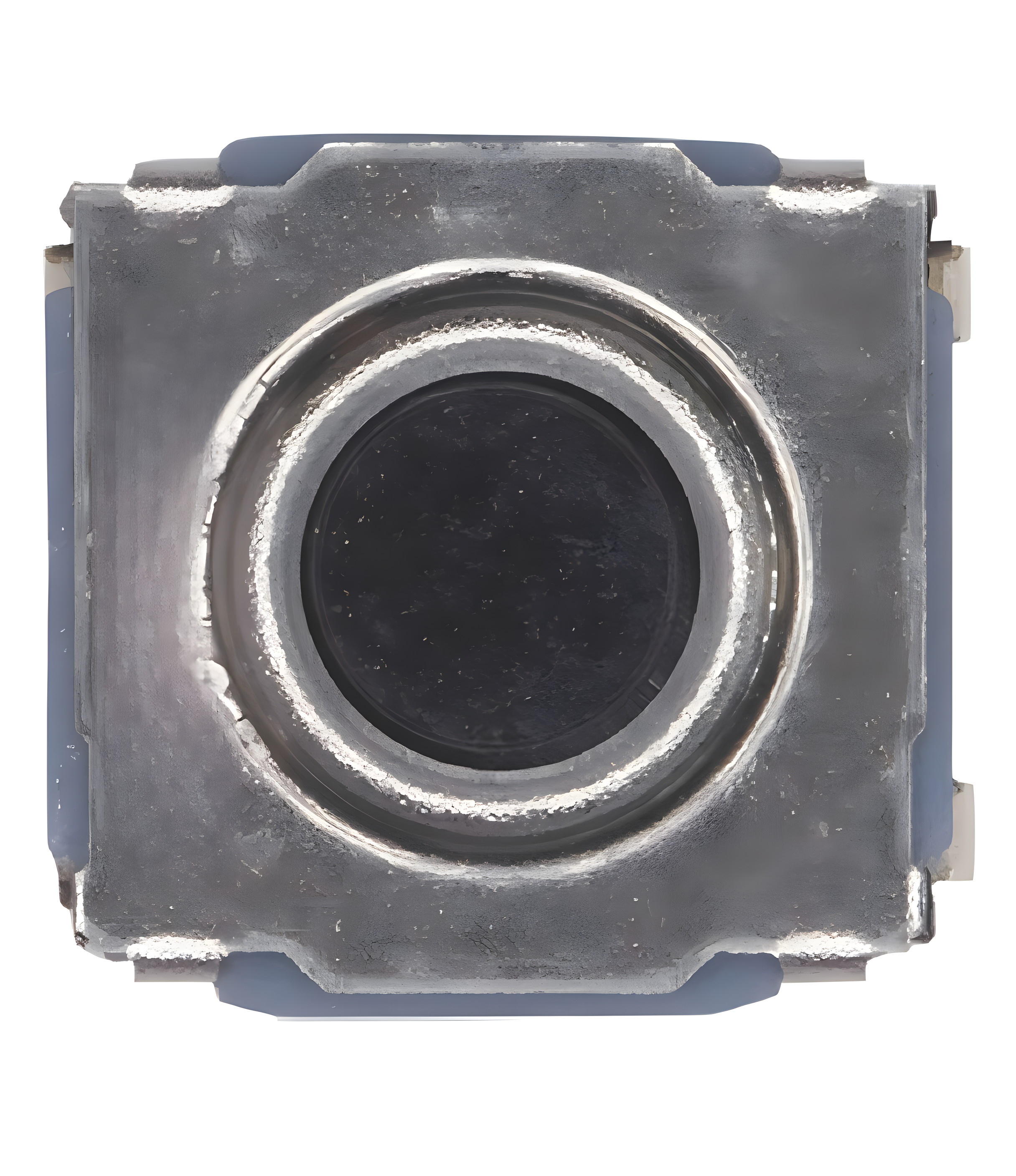

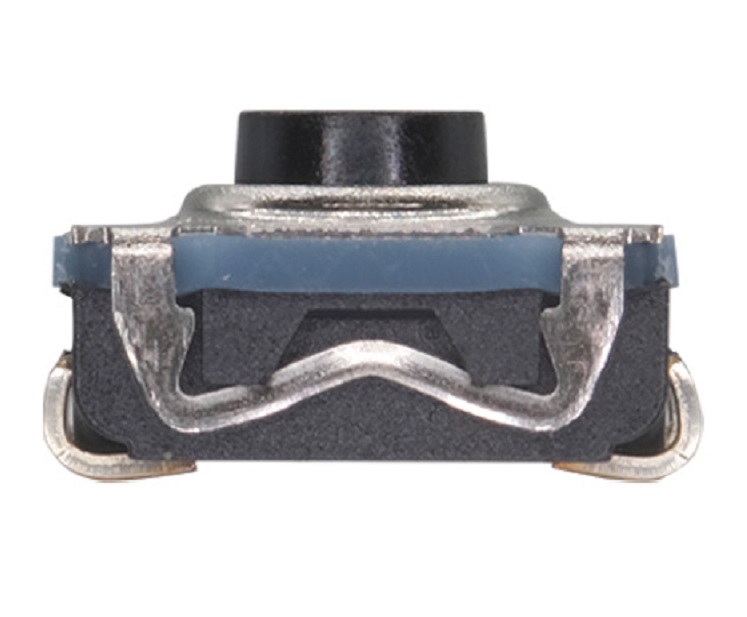

KSD-KSC11 series 技术特性
SMT 密封硅胶轻触开关防水IP67
最大功率：1瓦
最小/最大电压：0.02V/32V
最小/最大电流：1mA/50mA
介电强度：250 Vrms
接触电阻：≤100 mΩ
绝缘电阻：（100V）：1000mΩ
弹跳时间：≤5ms
焊接
该组件适用于以下方法：
–按照典型的洗涤流程进行清洁
-符合IEC 61760-1的无铅回流焊接工艺
包装
每卷1700件
载带宽度：16mm
卷筒尺寸：380毫米
规范
功能：常开
联系人类型：SPST编号
端子：用于SMT的J形弯曲
触点材料：镀银
环境的
工作温度：-40˚C至85˚C
机械
类型力量（N）
寿命行程（mm）
KSC1101J LFS 1.60±0.4 300万0.20±0.1
KSC1131J LFS 3.20±0.6 2000000 0.25±0.15
KSC1151J LFS 5.00±1.0 1000000 0.40±0.15
科斯达开关厂的 KSD-KSC-DCT series 轻触开关是现有知名 KSD-KSC 系列的变体。在 KSC 的基础上增强了功能, 为市场提供出色的产品。 KSD-KSC11 采用塑胶触头, 提供高触感而不会牺牲长达 300 万次的使用寿命。
KSD-KSC11 系列具有 6 x 6 mm 的紧凑尺寸和 3.9 mm 的标准高度, 有1.6N 到 5N 的操作力的版本可选。 KSD-KSC11 系列防水轻触开关主要用于需要高触感和长寿命的应用, 如航空电子/ 工业控制台、游戏、无人机或任何其他要求苛刻的应用。
KSD-KSC11 series Technical characteristics
SMT sealed silicone touch switch waterproof IP67
Maximum power: 1 watt
Minimum/maximum voltage: 0.02V/32V
Minimum/maximum current: 1mA/50mA
Dielectric strength: 250 Vrms
Contact resistance: ≤ 100 m Ω
Insulation resistance: (100V): 1000m Ω
Bounce time: ≤ 5ms
welding
This component is suitable for the following methods:
- Clean according to the typical washing process
-Lead free reflow soldering process in accordance with IEC 61760-1
packing
1700 pieces per roll
Carrier width: 16mm
Roll size: 380 millimeters
standard
Function: Normally open
Contact type: SPST number
Terminal: J-shaped bending for SMT
Contact material: Silver plated
The environment
Working temperature: -40 ° C to 85 ° C
Mechanics
Type Strength (N)
Lifespan (mm)
KSC1101J LFS 1.60 ± 0.4 million 0.20 ± 0.1
KSC1131J LFS 3.20±0.6 2000000 0.25±0.15
KSC1151J LFS 5.00±1.0 1000000 0.40±0.15
The KSD-KSC-DCT series tactile switch from Costa Switch Factory is a variant of the well-known KSD-KSC series. Enhanced functionality based on KSC, providing excellent products for the market. KSD-KSC11 uses plastic contacts to provide high tactile sensation without sacrificing a lifespan of up to 3 million cycles.
The KSD-KSC11 series features a compact size of 6 x 6 mm and a standard height of 3.9 mm, with versions available with operating forces ranging from 1.6N to 5N. The KSD-KSC11 series waterproof tactile switch is mainly used for applications that require high tactile sensation and long lifespan, such as aviation electronics/industrial consoles, games, drones, or any other demanding applications.
Current Rating:50mA @ 32VDC
Circuit:SPST-NO
Mounting Type:Surface Mount
Sealing:Sealed - IP67
Illumination:No/None
Switch Function:Off-Mom
Electrical Life Cycles:3,000,000
Actuator Type:Hard
Actuator Height off PCB, from Pins:3.9mm
Actuator Orientation:Top Actuated
Termination Style:SMT
Footprint:6.2mm x 6.2mm x 3.5mm
Illumination Voltage (Nominal):
Illumination Type, Color:
Operating Force:1.6N
Additional Features:
Packaging:Tape & Reel
