KSD-KSC2 TE series 技术特性
SMD超强耐用轻触开关防水IP67
电气寿命：500万至1000万
工作温度：-40°C至90°C
24V直流3mA
接触电阻：<100毫欧
绝缘电阻：>1000兆欧
绝缘强度：>250伏/秒
可焊性：无铅回流焊工艺符合IEC61760-1
规范
功能：瞬时动作
接触布置：1接触=SPST，N.O。
端子：J型弯曲和鸥翼式，适用于SMT
密封：IP67，KSC5除外（IP50）
此数据表没有提供足够的信息
需要一定质量或安全水平的应用程序
例如汽车、医疗系统或安全设备。
请联系客户服务部了解合同内容
规格包。
环保银金
工作温度：-40℃至85℃-40℃至125℃
储存温度：-55˚C至85˚C-55˚C至125˚C
流程
焊接：根据应用的不同，该组件是
适用于以下方法：
-端子在镍屏障上镀银或镀金
使用微活化焊剂是合适的。
–立式双波焊机上的焊接：焊接时间≤5秒。
–按照典型的洗涤流程进行清洁。-符合IEC的无铅回流焊接工艺61760-1.
科斯达开关厂的KSD-KSC2 TE series 超强耐用轻触开关是KSD-KSC2 的新配置, 具有 J 引线, 硅胶触头, 以及新组合的圆顶和支撑, 将使用寿命延长至 1000 万次。轻触防水开关尺寸为 6.2 x 6.3 mm, 操作力分别为 1.6N, 2.8N 和 4N, 非常适合要求苛刻的应用, 例如工业领域中的应用。
KSD-KSC2 TE series technical features
SMD ultra durable touch switch waterproof IP67
Electrical lifespan: 5 million to 10 million
Working temperature: -40 ° C to 90 ° C
24V DC 3mA
Contact resistance:<100 milliohms
Insulation resistance:>1000 megaohms
Insulation strength:>250 volts per second
Solderability: Lead free reflow soldering process complies with IEC61760-1
standard
Function: Instantaneous action
Contact arrangement: 1 contact=SPST, N.O.
Terminal: J-bend and gull wing type, suitable for SMT
Sealing: IP67, except KSC5 (IP50)
This data table does not provide sufficient information
Applications that require a certain level of quality or safety
For example, cars, medical systems, or safety equipment.
Please contact the customer service department to inquire about the contents of the contract
Specification package.
Environmental Protection Silver Gold
Working temperature: -40 ℃ to 85 ℃ -40 ℃ to 125 ℃
Storage temperature: -55 ° C to 85 ° C -55 ° C to 125 ° C
technological process
Welding: Depending on the application, this component is
Applicable to the following methods:
-The terminals are silver or gold plated on the nickel barrier
It is appropriate to use micro activated solder flux.
Welding on vertical double wave welding machine: welding time ≤ 5 seconds.
Clean according to the typical washing process- IEC compliant lead-free reflow soldering process 61760-1

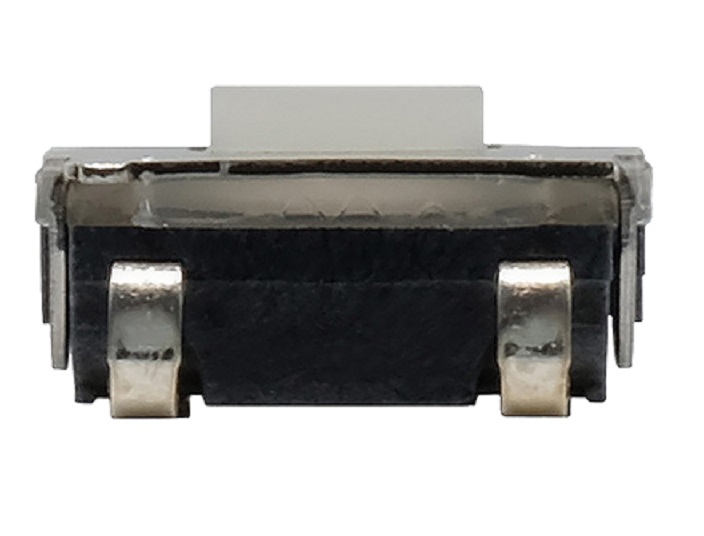

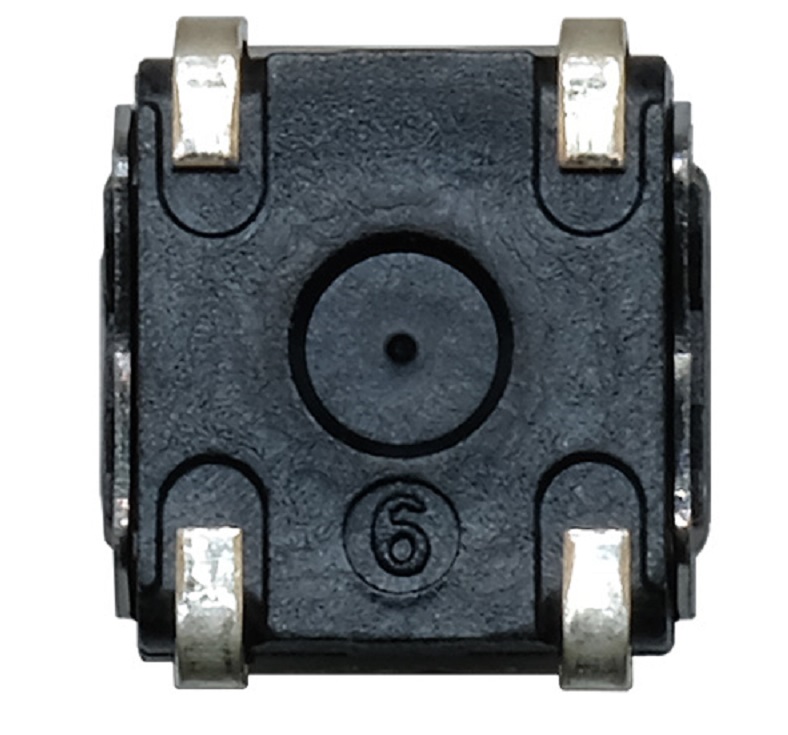

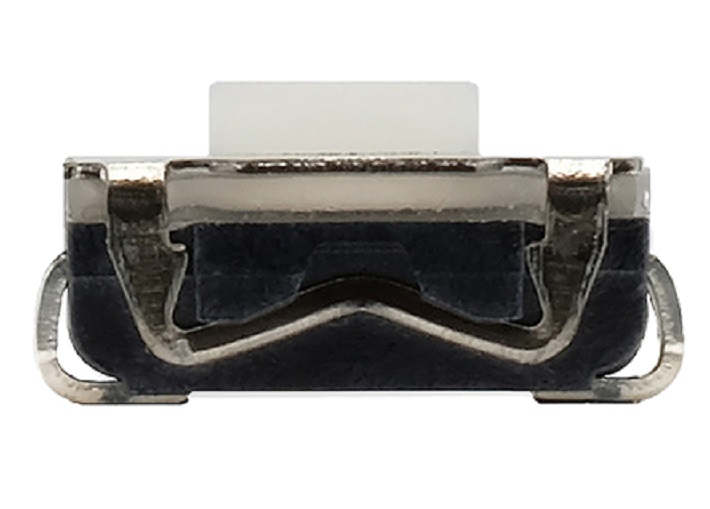

The KSD-KSC2 TE series ultra durable tactile switch from Costa Switch Factory is a new configuration of KSD-KSC2, featuring J-leads, silicone contacts, and a new combination of dome and support, extending its service life to 10 million times. The size of the light touch waterproof switch is 6.2 x 6.3 mm, with operating forces of 1.6N, 2.8N, and 4N respectively, making it very suitable for demanding applications such as those in the industrial field.
Current Rating:3mA @ 24VDC
Circuit:SPST-NO
Mounting Type:Surface Mount
Sealing:Sealed - IP67
Illumination:No/None
Switch Function:Off-Mom
Electrical Life Cycles:10,000,000
Actuator Type:Soft
Actuator Height off PCB, from Pins:3.5mm
Actuator Orientation:Top Actuated
Termination Style:SMT
Footprint:6.2mm x 6.3mm x 3.5mm
Illumination Voltage (Nominal):
Illumination Type, Color:
Operating Force:1.6N
Additional Features:
Packaging:Tape & Reel
