KSD-KMT0 D series 技术特性
瞬间轻触开关
电气
最大功率：0.3va
最大电压：32vdc
最小电压：20 mV
最大直流电流：25mA
最小直流电流：1mA
介电强度：≥250Vrms（1mn）
接触电阻：≤150mΩ
绝缘电阻：≥50mΩ
弹跳时间：≤6ms
环境的
工作温度：-40˚C至85˚C
储存温度：-55℃（10天）+85℃（4天）
流程焊接：该组件适用于以下方法：-无铅回流焊接工艺符合IEC 61760-1。
规范
功能：瞬时动作，常开
接触布置：1接触=SPST，N.O。
端子：用于SMT的J型引线
机械
行程（mm）：0.15±0.1
包装每卷5000件。卷筒尺寸符合EIA 481B外径180毫米
注：以上列出的规格适用于具有标准选项的开关。有关特定和自定义开关的信息，请咨询客户服务中心。
总高度0.65毫米K M T 0 D
接触材料
1银
3黄金
接地选项
NGJ无接地引脚，J引线
LHS无铅、RoHS、无卤素、镀银
LHG无铅、RoHS、无卤素、镀金
科斯达开关厂的KSD-KMT0 D series 系列超微型 SMT 顶部起动贴片开关具有最小的占地面积和厚度以及集成的触头。是小型应用的理想选择, 包括医疗设备、蓝牙耳机、MP3 配件和助听器, 开关同时能够承受最恶劣的环境。
KSD-KMT0 D series Technical characteristics
Instant touch switch
electrical
Maximum power: 0.3va
Maximum voltage: 32VDC
Minimum voltage: 20 mV
Maximum DC current: 25mA
Minimum DC current: 1mA
Dielectric strength: ≥ 250Vrms (1mn)
Contact resistance: ≤ 150m Ω
Insulation resistance: ≥ 50m Ω
Bounce time: ≤ 6ms
The environment
Working temperature: -40 ° C to 85 ° C
Storage temperature: -55 ℃ (10 days)+85 ℃ (4 days)
Process soldering: This component is suitable for the following methods: - Lead free reflow soldering process in accordance with IEC 61760-1.
standard
Function: Instantaneous action, normally open
Contact arrangement: 1 contact=SPST, N.O.
Terminal: J-shaped lead for SMT
Mechanics
Travel (mm): 0.15 ± 0.1
Package 5000 pieces per roll. The drum size complies with EIA 481B with an outer diameter of 180mm
Note: The specifications listed above apply to switches with standard options. For information on specific and custom switches, please consult the customer service center.
Total height 0.65 millimeters K M T 0 D
Contact materials
1 Silver
3 Gold
Grounding options
NGJ has no grounding pin, J lead
LHS lead-free, RoHS compliant, halogen-free, silver plated
LHG lead-free, RoHS compliant, halogen-free, gold-plated

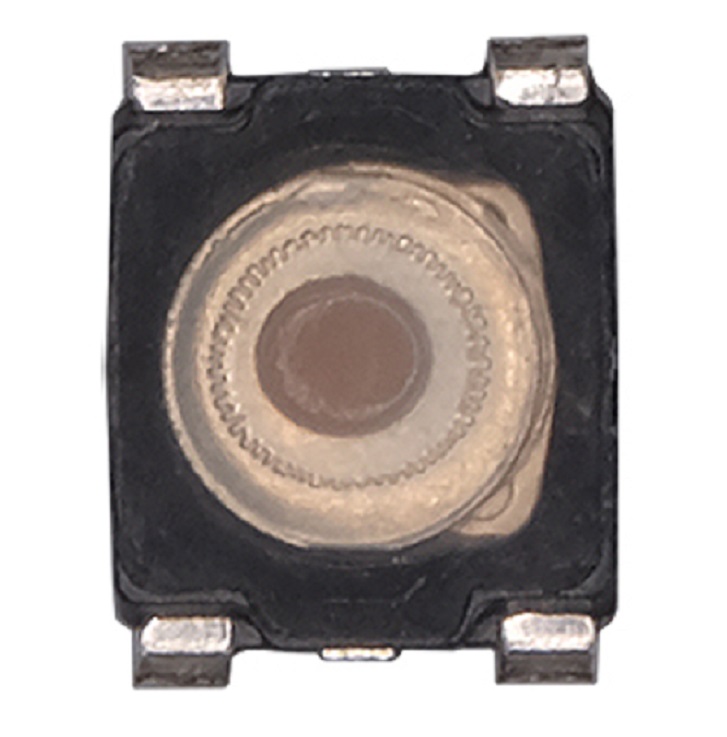

The KSD-KMT0 D series ultra micro SMT top start surface mount switch from Costa Switch Factory has the smallest footprint, thickness, and integrated contacts. It is an ideal choice for small applications, including medical devices, Bluetooth earphones, MP3 accessories, and hearing aids, with switches that can withstand the harshest environments.
Current Rating:25mA
Circuit:SPST-NO
Mounting Type:Surface Mount
Sealing:Sealed - IP68
Illumination:No/None
Switch Function:Off-Mom
Electrical Life Cycles:300,000
Voltage Rating - AC:
Voltage Rating - DC:32V
Actuator Type:Standard
Termination Style:J Lead
Operating Force, Torque:150gf
Release Force:
Pretravel:
Overtravel:
Packaging:Tape & Reel
