产品图纸（PDF）：KSD-EL2 series 下载

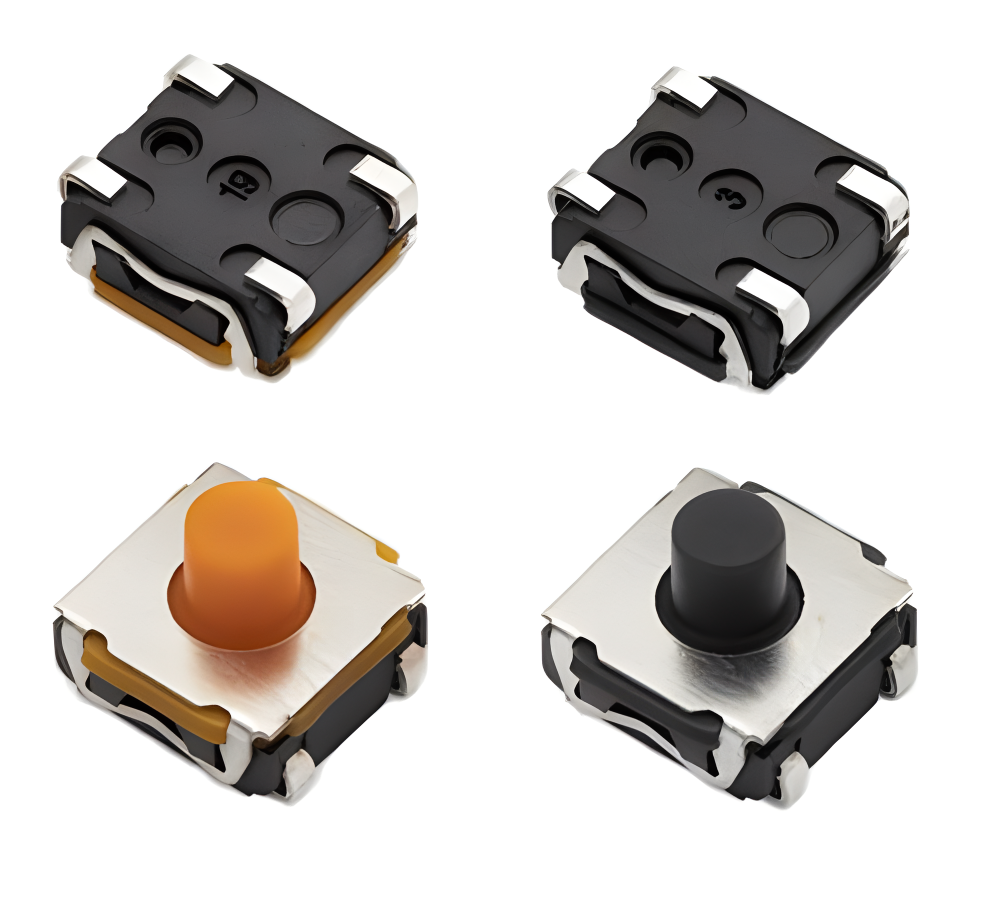

KSD-EL2 series 技术特性电气特性最大功率0.9 VA最小/最大电压1V/18V最小/最大电流0.01/150mA介电强度250 Vrms接触电阻≤100 mΩ绝缘电阻（100V）：≥100MΩ反弹时间≤5ms环境特征工作温度-40˚C至85˚C储存温度-55˚C至85˚C规格功能瞬时动作触点布置1：接触=SPST，N.O。SMT端子J弯曲触点材料镀银功能和优点■ 经济高效■ 市场标准尺寸■ SMT-胶带和卷轴■ IP67密封■ 硅胶执行器应用■ 智能电表■ 家用电器■ 电子消费品■ 工业电子■ 医疗便携式设备科斯达开关厂的 KSD-EL2 series EL2 是入门级中型密封防水轻触开关系列。体积小巧的 EL2 硅胶开关系列尺寸为 6.2 x 6.2 mm, 标准高度为 3.5 mm 和 5.2 mm, 提供最常见的 2N 和 3.5N 版本的操作力。KSD-EL2 系列具有轻触硅胶开关的基本特性, 使用寿命为 200K 次。为使用者提供最佳性价比的方案。KSD-EL2 轻触开关具有出色的耐用性和 IP67 防护等级, 因此适合应用于工业、消费电子和医疗领域的基础应用。
KSD-EL2 series Technical characteristicsElectrical characteristicsMaximum power 0.9 VAMinimum/maximum voltage 1V/18VMinimum/maximum current 0.01/150mADielectric strength 250 VrmsContact resistance ≤ 100 m ΩInsulation resistance (100V): ≥ 100M ΩRebound time ≤ 5msEnvironmental characteristicsWorking temperature -40 ° C to 85 ° CStorage temperature -55 ° C to 85 ° CSpecificationsInstantaneous action of functionContact arrangement 1: Contact=SPST, N.O.SMT terminal J bendingContact material silver platedFeatures & Benefits■ Cost efficient■ Market standard size■ SMT - Tape & reel■ IP67 sealed■ Silicone actuatorApplications■ Smart meters■ Home appliances■ Consumer electronics■ Industrial electronics■ Medical portable devicesThe KSD-EL2 series EL2 from Costa Switch Factory is an entry-level medium-sized sealed waterproof tactile switch series. The EL2 silicone switch series, with a compact size of 6.2 x 6.2 mm and standard heights of 3.5 mm and 5.2 mm, offers the most common 2N and 3.5N versions of operating force. The KSD-EL2 series has the basic characteristics of a touch sensitive silicone switch, with a service life of 200K times. Provide users with the best cost-effective solution.The KSD-EL2 tactile switch has excellent durability and IP67 protection rating, making it suitable for basic applications in industrial, consumer electronics, and medical fields.
