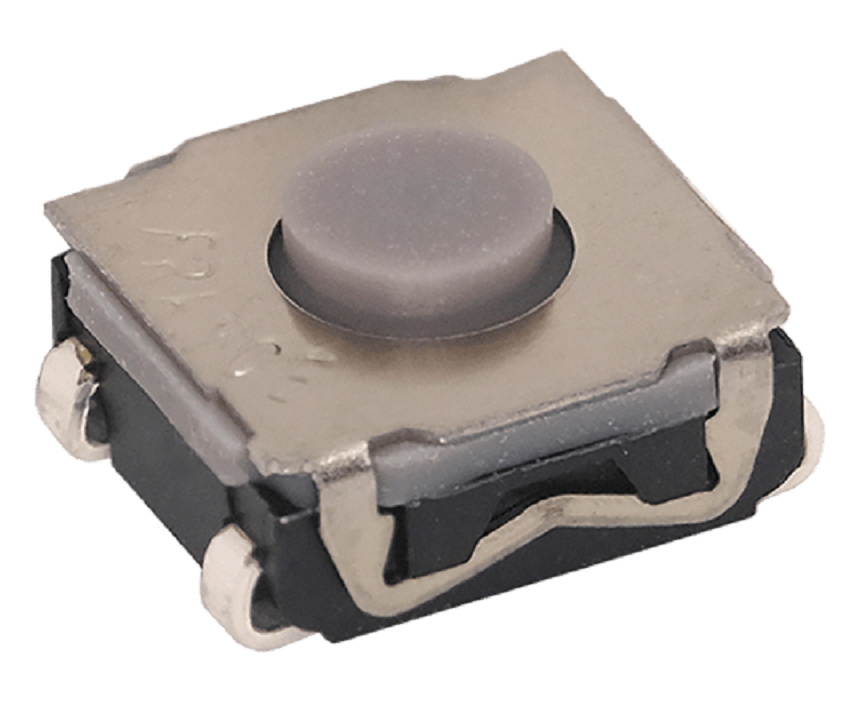

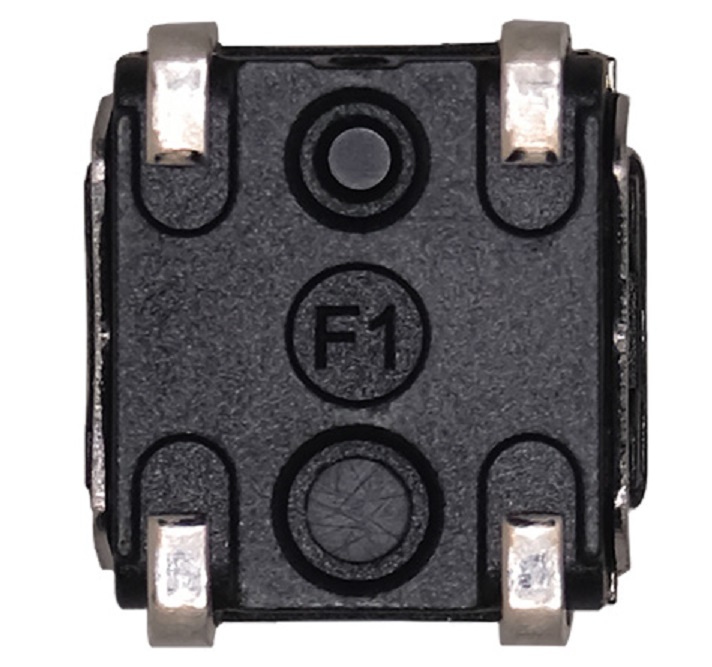

KSD-EL series 技术特性SMT贴片硅胶轻触开关最大功率：0.9瓦最小/最大电压：1V/18V最小/最大电流：0.01 mA/150 mA介电强度：250 Vrms接触电阻：≤100 mΩ绝缘电阻：（100v）：≥100mΩ弹跳时间：≤5ms规范功能：瞬时动作联系人安排：SPST编号端子：用于SMT的J形弯曲触点材料：镀银环境的工作温度：-40˚C至85˚C储存温度：-55˚C至85˚C流程焊接：该组件适用于以下方法：-按照典型的洗涤流程进行清洁-无铅回流焊接工艺符合IEC61760-1包装EL35每卷2000件载带宽度：12mm卷筒尺寸：330毫米EL52每卷1400件载带宽度：16mm卷筒尺寸：380毫米注：以上列出的规格适用于具有标准选项的开关。KSD-EL系列不得进行调整和/或修改具体用途。如果需要其他功能，请参阅KSC系列。价格仅应要求提供，请联系您的销售人员代表。科斯达开关厂的KSD-EL series 系列是入门级中型密封防水轻触开关。KSD-EL 防水开关系列具有 6.2 x 6.2 mm 的紧凑尺寸和 3.5 和 5.2 mm 的标准高度, 可提供最常见的 2N 和 3.5N 版本的操作力。KSD-EL 系列具备基本轻触开关的特点, 使用寿命为 20 万次。EL 开关的坚固性和 IP67 防护等级主要推荐用于工业、消费类和医疗市场中寻求最佳性价比的基本应用
KSD-EL series Technical characteristicsSMT surface mount silicone touch switchMaximum power: 0.9 wattsMinimum/maximum voltage: 1V/18VMinimum/maximum current: 0.01 mA/150 mADielectric strength: 250 VrmsContact resistance: ≤ 100 m ΩInsulation resistance: (100v): ≥ 100m ΩBounce time: ≤ 5msstandardFunction: Instantaneous actionContact person arrangement: SPST numberTerminal: J-shaped bending for SMTContact material: Silver platedThe environmentWorking temperature: -40 ° C to 85 ° CStorage temperature: -55 ° C to 85 ° CProcess welding: This component is suitable for the following methods:-Clean according to the typical washing process-The lead-free reflow soldering process complies withIEC61760-1Packaging EL35, 2000 pieces per roll, with a width of 12mm and a roll size of 330mm. EL52, 1400 pieces per roll, with a width of 16mm and a roll size of 380mmNote:The specifications listed above apply to switches with standard options. The KSD-EL series shall not be adjusted and/or modified for specific purposes. If other functions are required, please refer toKSC series. Prices are only available upon request, please contact your sales representative.The KSD-EL series from Costa Switch Factory is an entry-level medium-sized sealed waterproof tactile switch. The KSD-EL waterproof switch series features a compact size of 6.2 x 6.2 mm and standard heights of 3.5 and 5.2 mm, providing the most common 2N and 3.5N versions of operating force.The KSD-EL series has the characteristics of a basic tactile switch, with a service life of 200000 times. The durability and IP67 protection level of EL switches are mainly recommended for basic applications seeking the best cost-effectiveness in the industrial, consumer, and medical marketsCurrent Rating:150mA @ 18VDCCircuit:SPST-NOMounting Type:Surface MountSealing:Sealed - IP67Illumination:No/NoneSwitch Function:Off-MomElectrical Life Cycles:200,000Actuator Type:SoftActuator Height off PCB, from Pins:3.5 mmActuator Orientation:Top ActuatedTermination Style:SMTFootprint:6.2 mm x 6.2 mm x 3.5 mmIllumination Voltage (Nominal):Illumination Type, Color:Operating Force:2NAdditional Features:Packaging:Tape & Reel
