产品图纸（PDF）：KSD-ZMW series 下载
KSD-ZMW series 技术特性标准规范100mA@30VDC/50mA@16VDC/1mA@5VDC绝缘电阻：最小100兆欧。绝缘强度：带电部件之间最低600VAC（50-60Hz）/分钟工作温度：-40ºC至85ºC电气寿命：100mA/50mA/1mA时300000次循环/500000次循环品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA科斯达开关厂的KSD-ZMW series系列微型微动开关常用于汽车。防水微动开关KSD-ZMW 系列尺寸小（在空间有限的情况下是理想的选择）, 还有可靠的速动机制, 可为应用提供足够的长行程要求, 从而确保它们可以重复使用。

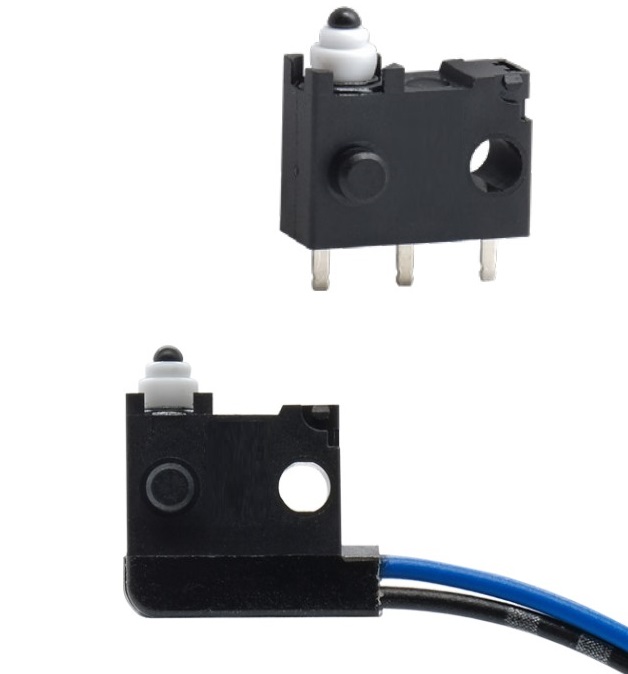

Technical characteristics of KSD-ZMW seriesstandard specification 100mA@30VDC / 50mA@16VDC / 1mA@5VDCInsulation resistance: minimum 100 megaohms.Insulation strength: Minimum 600VAC (50-60Hz) per minute between live partsWorking temperature: -40 º C to 85 º CElectrical lifespan: 300000 cycles/500000 cycles at 100mA/50mA/1mABrand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDAThe KSD-ZMW series micro micro switches from Costa Switch Factory are commonly used in automobiles. The KSD-ZMW series waterproof micro switch has a small size (ideal for limited space) and a reliable quick action mechanism, which can provide sufficient long stroke requirements for applications, ensuring that they can be reused.
