KSD-ZMV series- 技术特性
标准规范
3A@12伏直流/24伏直流/125伏交流/250伏交流
电气寿命：10mA时1000000次循环/3A时100000次循环
绝缘电阻：最小100 MΩ。
绝缘强度：带电部件之间的最小500VAC（50-60Hz）/分钟
工作温度：-40ºC至85ºC
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA

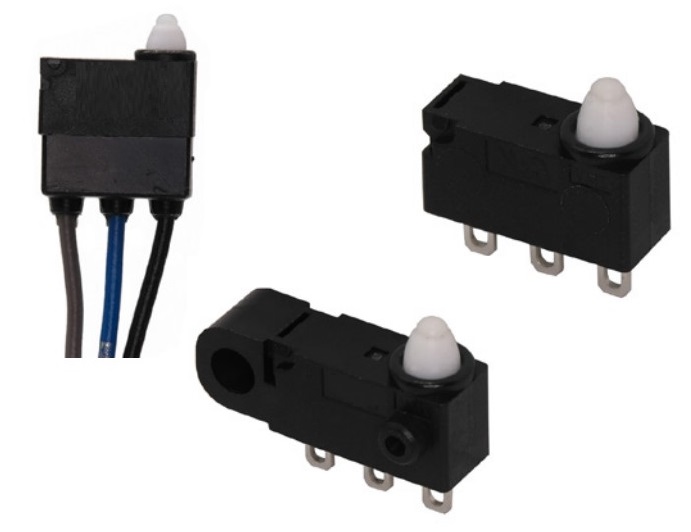

科斯达开关厂的KSD-ZMV series-系列微型防水微动开关通常用于汽车、医疗、工业和物联网设备。开关具有独特的针状按钮, 可以从任何角度起动。
KSD-ZMV series - Technical Features
standard specification
3A@12 Voltage DC/24V DC/125V AC/250V AC
Electrical lifespan: 1000000 cycles at 10mA/100000 cycles at 3A
Insulation resistance: minimum 100 M Ω.
Insulation strength: minimum 500VAC (50-60Hz) per minute between live parts
Working temperature: -40 º C to 85 º C
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA
The KSD-ZMV series micro waterproof micro switches from Costa Switch Factory are commonly used in automotive, medical, industrial, and IoT devices. The switch has a unique needle shaped button that can be activated from any angle.
Current Rating:3A (AC/DC)
Circuit:SPDT
Mounting Type:Thru-hole
Sealing:Unsealed
Illumination:No/None
Switch Function:On-Mom On
Electrical Life Cycles:100,000
Voltage Rating - AC:125/250VAC
Voltage Rating - DC:12/24VDC
Actuator Type:Lever
Termination Style:Thru-hole
Additional Features:
Operating Force, Torque:220gf
Release Force:
Pretravel:
Differential Travel:
Overtravel:1.1mm
Packaging:Bulk
