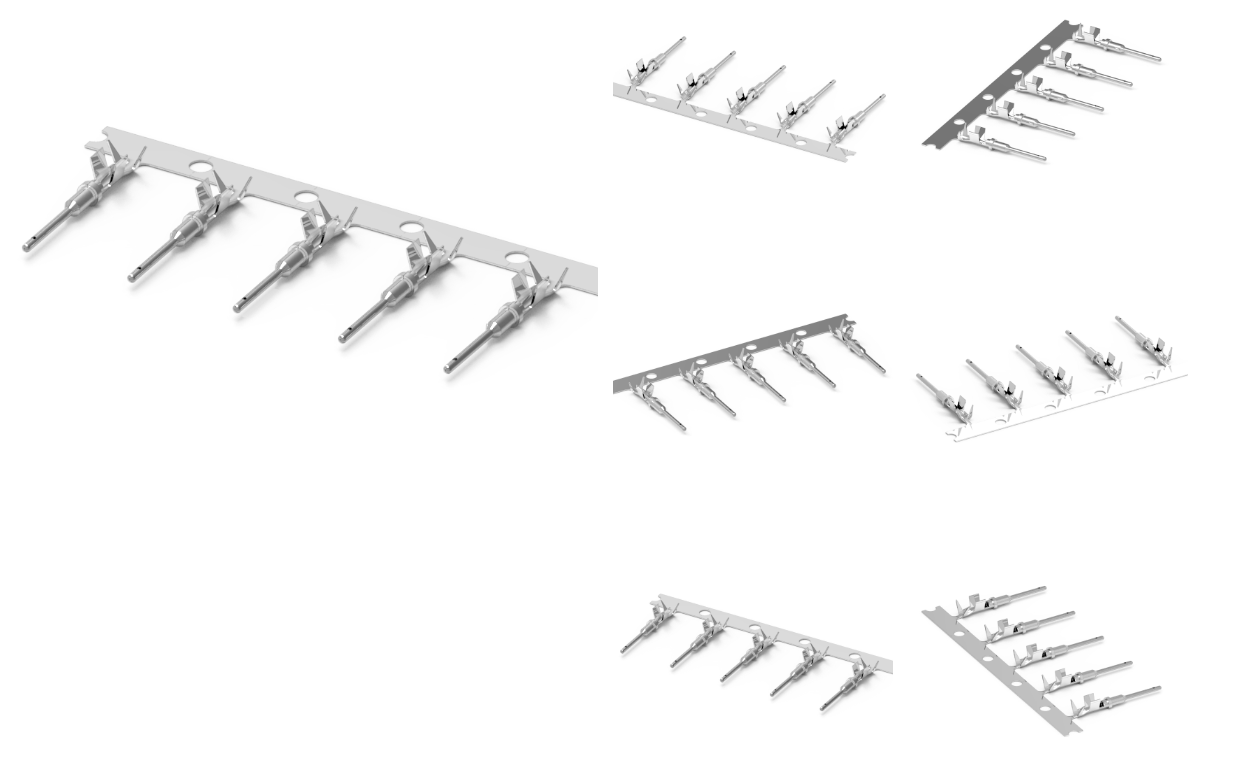

KSD-OY-WP01135（20AWG~28AWG）

KSD-OY-WP01135（20AWG~28AWG）

  • 产品特性
  • 应用范围

图纸下载 样品申请

品名：DT连接器DTM公头
1.材料
1-1.绝缘体：PA66
1.2后盖：PA66
1-3.垫片：硅胶或：排水管
1-4.橡胶：硅胶：颜色：橙色
2.电气规格：
2-1.额定电流：7.5A
2-2.额定电压：250V
2-3.防水等级：IP67
3.环境：
3-1.工作温度：-40°~105°
品牌：科斯达开关KSDKG
产地：中国东莞


DT连接器（DT Connectors） 是一种广泛应用于重工业、汽车、军用设备以及其他恶劣环境下的连接器系列。它们以其坚固的设计和防护特性著称，能够承受极端温度、湿度和振动等条件。

DTM公头连接器概述
DTM公头连接器 是 DT 系列连接器中的一种，常用于小型电力和信号连接。DTM 连接器与 DT 系列的其它连接器相比，具有更小的体积，适用于空间有限的应用。

特征
1.小型化设计：
DTM连接器通常更小、更轻，适合用于狭小空间的应用场合。

2.多种插头配置：
DTM连接器可提供多种插头配置（不同数量的针脚），通常在 3 至 5 针之间。这为各种不同电气连接需求提供了灵活性。

3.耐用性：
DTM 连接器的构造材料通常具备防水、防尘和抗腐蚀特性，常见的材质有塑料外壳和橡胶密封圈，适合恶劣的环境条件。

4.锁定机制：
连接器的锁定机制设计确保连接稳固，避免在震动或移动过程中脱落。

5.高电流承载能力：
DTM连接器具有良好的电流承载能力，适合用于功率较大的应用。

应用领域

1.汽车工业：
DTM公头连接器广泛应用于汽车的传感器、控制器和动力分配系统。

2.重型机械：
在工程设备和重型机械中，DTM连接器用于电气和数据连接，确保在极端工作条件下可靠运行。

3.军用和航空航天：
DTM连接器的高防护性能使其适合用于军事和航空航天设备中。

4.工业自动化：
在工业设备和自动化系统中，它们用于连接传感器、执行机构和控制单元。

安装与维护建议
1.正确安装：
确保在连接时针脚对齐并完全插入，直至听到“咔哒”声，以确认已牢牢锁定。

2.定期检查：
定期检查连接器，确保没有灰尘、污垢或腐蚀物，保持连接良好。

3.注意环境因素：
如果在极端条件下使用，注意对连接器的保养，以确保其长期稳定工作。

4.避免过载：
确保在其额定电流和电压范围内使用，避免连接器过载导致故障。

总结
DTM公头连接器 是一款适用于多种配电和信号传输需求的高性能连接器，特别是在空间有限和恶劣环境条件下的应用。了解其特性以及操作注意事项，可以确保在各种应用中发挥良好的性能。如果你有关于DTM连接器的具体需求或问题，欢迎联系技术员！



Product Name: DT Connector DTM Male Head
1. Materials
1-1. Insulator: PA66
1.2 Rear cover: PA66
1-3. Gasket: silicone or: drain pipe
1-4. Rubber: Silicone: Color: Orange
2. Electrical specifications:
2-1. Rated current: 7.5A
2-2. Rated voltage: 250V
2-3. Waterproof grade: IP67
3. Environment:
3-1. Working temperature:- 40°~105°
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


DT Connectors are a series of connectors widely used in heavy industry, automotive, military equipment, and other harsh environments. They are known for their sturdy design and protective features, capable of withstanding extreme conditions such as temperature, humidity, and vibration.

Overview of DTM Male Connector
DTM male connector is a type of DT series connector commonly used for small power and signal connections. Compared with other connectors in the DT series, DTM connectors have a smaller volume and are suitable for applications with limited space.

features
1. Miniaturization design:
DTM connectors are typically smaller and lighter, making them suitable for applications in confined spaces.

2. Multiple plug configurations:
DTM connectors can provide multiple plug configurations (with different numbers of pins), typically between 3 and 5 pins. This provides flexibility for various electrical connection requirements.

3. Durability:
The construction materials of DTM connectors usually have waterproof, dustproof, and corrosion-resistant properties. Common materials include plastic shells and rubber seals, which are suitable for harsh environmental conditions.

4. Locking mechanism:
The locking mechanism design of the connector ensures a stable connection and prevents detachment during vibration or movement.

5. High current carrying capacity:
DTM connectors have good current carrying capacity and are suitable for high-power applications.

application area

1. Automotive industry:
DTM male connectors are widely used in sensors, controllers, and power distribution systems of automobiles.

2. Heavy machinery:
DTM connectors are used for electrical and data connections in engineering equipment and heavy machinery to ensure reliable operation under extreme working conditions.

3. Military and Aerospace:
The high protective performance of DTM connectors makes them suitable for use in military and aerospace equipment.

4. Industrial automation:
In industrial equipment and automation systems, they are used to connect sensors, actuators, and control units.

Installation and maintenance recommendations
1. Correct installation:
Ensure that the pins are aligned and fully inserted during connection until a "click" sound is heard to confirm that they are securely locked.

2. Regular inspection:
Regularly inspect the connectors to ensure they are free of dust, dirt, or corrosive substances and maintain good connections.

3. Pay attention to environmental factors:
If used under extreme conditions, pay attention to the maintenance of the connector to ensure its long-term stable operation.

4. Avoid overload:
Ensure that it is used within its rated current and voltage range to avoid connector overload causing malfunctions.

summary
DTM male connector is a high-performance connector suitable for various power distribution and signal transmission needs, especially in applications with limited space and harsh environmental conditions. Understanding its characteristics and operational precautions can ensure good performance in various applications. If you have specific requirements or questions about DTM connectors, please feel free to contact a technician!
