KSD-ON-WP0309

KSD-ON-WP0309

  • 产品特性
  • 应用范围

图纸下载 样品申请

品名：DT连接器HD10公头
11.材料：
1-1.绝缘体：PA66：颜色：灰色
1-2. 外壳：PA66；颜色：黑色
1-3.后盖：PA66；颜色：灰色

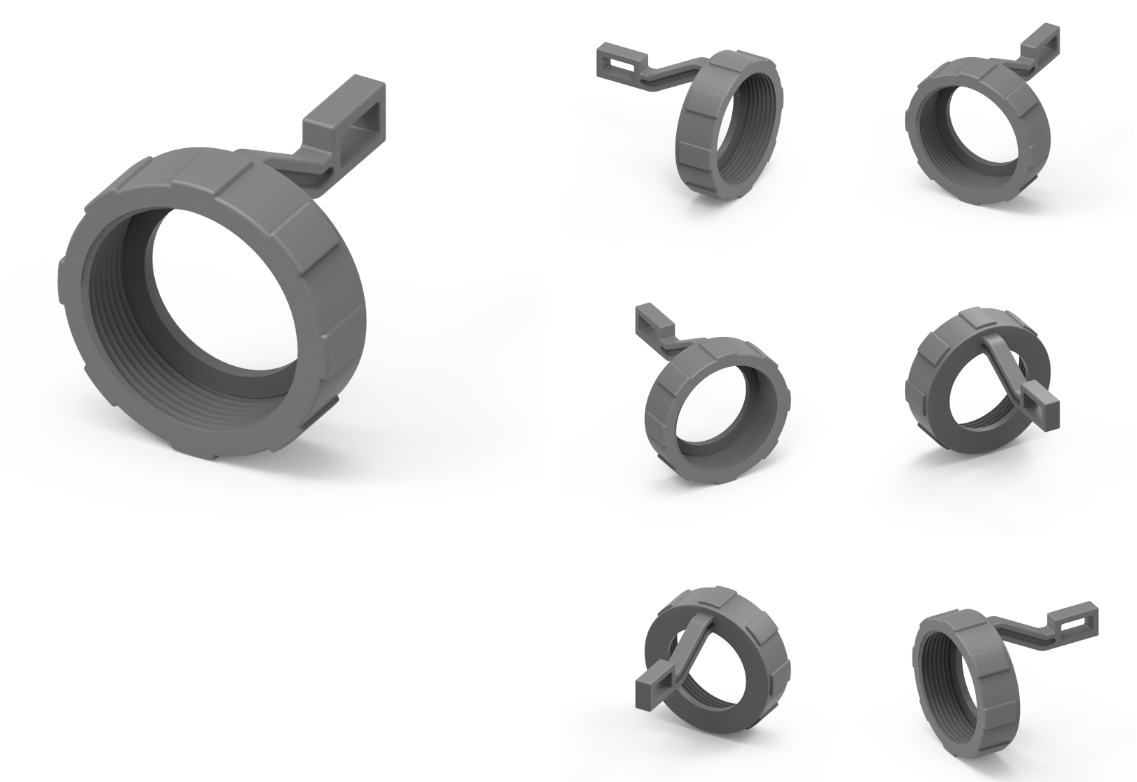

1-4.耦合环：PA66CLR：灰色
1-5.橡胶：硅橡胶：橙色
1-6.O型圈：硅胶：颜色：橙色
2.电气规格：
2-1.额定电流：25A
2-2.额定电压：500V
2-3.防水等级：IP67
3.环境：
3-1.0工作温度：-40°~105°
品牌：科斯达开关KSDKG
产地：中国东莞


HD10公头连接器 是 DT 连接器系列中的一种高密度连接器，通常用于电气连接的需求，特别适合在恶劣环境中工作。HD10连接器因其出色的密封性能、耐腐蚀性及高强度机械性能而受到广泛应用。

HD10公头连接器概述
特征
1.高密度设计：
HD10连接器采用高密度设计，可以在相对小的体积内实现更多的接触点，适合对空间有限的应用。

2.防护等级：
HD10连接器通常具有IP67或更高的防护等级，提供良好的防水和防尘性能，确保在各种恶劣环境中稳定工作。

3.耐用材料：
采用高强度的工程塑料和合金材料制造，能够抵御振动、温度变化和化学物质的侵蚀。

4.多种针脚配置：
可以提供多种针脚数量的选择（如6、12、16等），以满足不同电气连接需求。

5.锁定设计：
特有的锁定机制确保连接的牢固性，避免在高强度振动或冲击下松脱。

应用领域
1.汽车行业：
用于汽车电子系统、传感器和控制模块的连接，确保可靠的数据传输。

2.工业自动化：
在自动化设备和控制系统中广泛应用，确保设备之间的稳定电气连接。

3.重型机械：
在农业设备、矿山机械和建筑设备中，HD10连接器能够在严苛环境下提供可靠连接。

4.航空航天及军事：
HD10连接器适用于高要求的军事和航空航天应用，提供稳健的电气连接。

安装与维护建议

1.正确连接：
在插入HD10公头连接器时，确保对齐，并完全插入，直到听到确认声。

2.定期检查：
定期检查连接器的外观和接触点，确保没有污垢或腐蚀，以保持良好的电气性能。

3.注意环境条件：
在极端温度和环境条件下使用时，确保连接器的密封性能保持良好。

4.避免过载：
确保在制造商指定的电流和电压范围内使用，避免连接器的损坏。

总结
HD10公头连接器 是一种出色的高密度连接器，适用于各种工业和商业应用，特别是在需要可靠和稳固电气连接的场合。其高防护性的设计和耐用的材料使其能够在恶劣环境中工作，确保设备的正常运行。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: DT Connector HD10 Male Head
11. Materials:
1-1. Insulator: PA66： Color: Grey
1-2.  Shell: PA66； Color: Black
1-3. Rear cover: PA66； Color: Grey
1-4. Coupling loop: PA66CLR： grey
1-5. Rubber: Silicone Rubber: Orange
1-6. O-ring: Silicone: Color: Orange
2. Electrical specifications:
2-1. Rated current: 25A
2-2. Rated voltage: 500V
2-3. Waterproof grade: IP67
3. Environment:
3-1.0 Operating temperature:- 40°~105°
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The HD10 male connector is a high-density connector in the DT connector series, commonly used for electrical connection needs and particularly suitable for working in harsh environments. HD10 connectors are widely used due to their excellent sealing performance, corrosion resistance, and high-strength mechanical properties.

Overview of HD10 Male Connector
features
1. High density design:
The HD10 connector adopts a high-density design, which can achieve more contact points in a relatively small volume, suitable for applications with limited space.

2. Protection level:
HD10 connectors typically have a protection level of IP67 or higher, providing excellent waterproof and dustproof performance, ensuring stable operation in various harsh environments.

3. Durable materials:
Made of high-strength engineering plastics and alloy materials, it can resist vibration, temperature changes, and chemical erosion.

4. Multiple pin configurations:
Multiple pin numbers (such as 6, 12, 16, etc.) can be provided to meet different electrical connection requirements.

5. Locking design:
The unique locking mechanism ensures the firmness of the connection and avoids loosening under high-intensity vibration or impact.

application area
1. Automotive industry:
Used for connecting automotive electronic systems, sensors, and control modules to ensure reliable data transmission.

2. Industrial automation:
Widely used in automation equipment and control systems to ensure stable electrical connections between devices.

3. Heavy machinery:
In agricultural equipment, mining machinery, and construction equipment, HD10 connectors can provide reliable connections in harsh environments.

4. Aerospace and Military:
The HD10 connector is suitable for high demand military and aerospace applications, providing robust electrical connections.

Installation and maintenance recommendations

1. Correct connection:
When inserting the HD10 male connector, make sure it is aligned and fully inserted until you hear a confirmation sound.

2. Regular inspection:
Regularly inspect the appearance and contact points of the connector to ensure there is no dirt or corrosion, in order to maintain good electrical performance.

3. Pay attention to environmental conditions:
Ensure that the sealing performance of the connector remains good when used under extreme temperature and environmental conditions.

4. Avoid overload:
Ensure use within the manufacturer's specified current and voltage range to avoid damage to the connector.

summary
The HD10 male connector is an excellent high-density connector suitable for various industrial and commercial applications, especially in situations where reliable and stable electrical connections are required. Its highly protective design and durable materials enable it to work in harsh environments, ensuring the normal operation of the equipment. If you have further questions or need specific technical parameters, please feel free to contact the technician!
