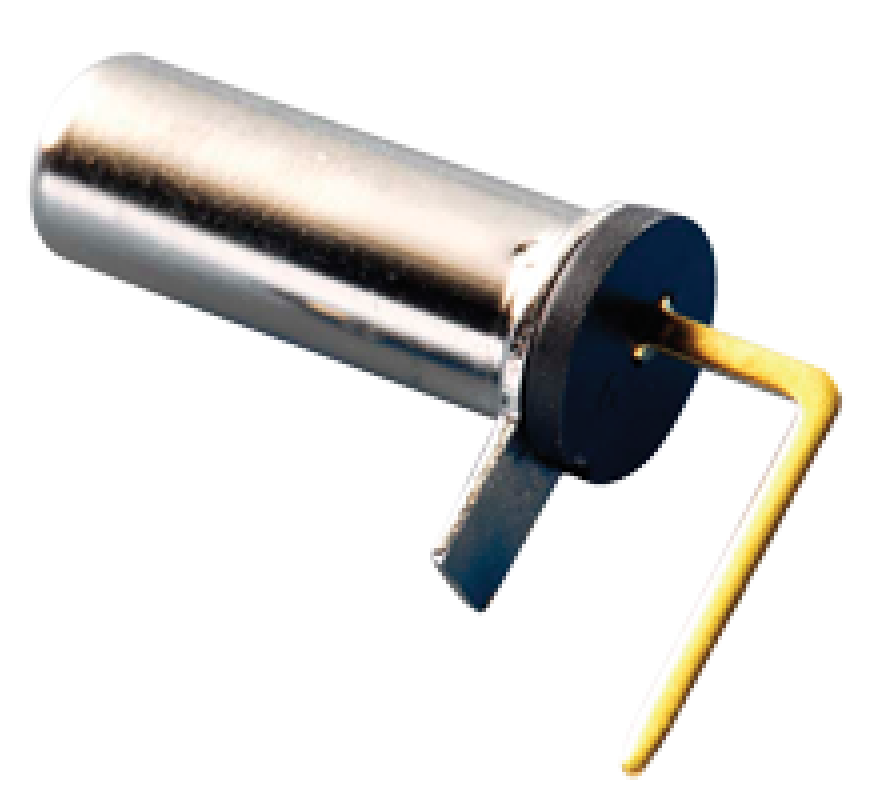

KSD-RB series 技术特性
滚珠传感器开关
电气 SPST
传感器角度：0˚至-10˚范围内，端子至
断开电流
最小电压：1 VDC 10mA（电阻负载）
最大电压：5 VDC 1mA（电阻负载）
使用寿命：100000次循环
绝缘电阻：1000 MΩ最小值@100 VDC电介质强度：500 V AC（50-60 Hz）
工作温度：–20ºC至+70ºC
材料
框架：铜合金，镀镍
封面：PA46（UL94V-0）
动触头：铜合金，镀镍端子：铜合金，镀金
黄铜球：黄铜，镀金
KSD-RB series 对于家庭用品、电子玩具、消费电子产品和安全控制器来说, 耐久、高质量的零件是非常关键的, 这些零件必须保证每次都能正常工作。科斯达开关厂的 KSD-RB 系列滚珠传感器开关采用超小型设计, 并提供多种不同的角度触发选择, 可以适合任何设计。
KSD-RB series Technical characteristics
Ball sensor switch
Electrical SPST
Sensor angle: within the range of 0 ° to -10 °, terminal to
Disconnect the current
Minimum voltage: 1 VDC 10mA (resistive load)
Maximum voltage: 5 VDC 1mA (resistive load)
Service life: 100000 cycles
Insulation resistance: 1000 M Ω minimum value @ 100 VDC Dielectric strength: 500 V AC (50-60 Hz)
Working temperature: -20 º C to+70 º C
Material Science
Framework: Copper alloy, nickel plated
Cover: PA46 (UL94V-0)
Moving contact: copper alloy, nickel plated terminal: copper alloy, gold plated
Brass ball: brass, gold-plated
For household items, electronic toys, consumer electronics products, and safety controllers, durable and high-quality parts are crucial for the KSD-RB series, and these parts must be guaranteed to work properly every time. The KSD-RB series ball sensor switch from Costa Switch Factory adopts an ultra small design and offers multiple angle triggering options, which can be suitable for any design.
