产品名称：航模连接器

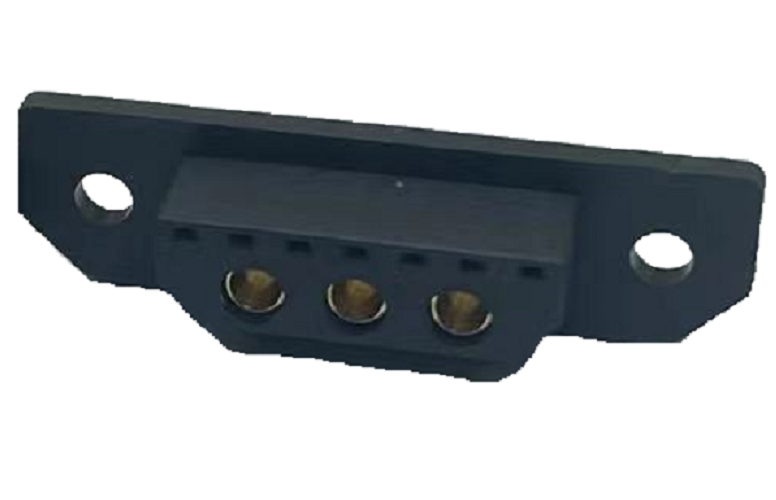

航模3+7公母座连接器10PIN
KSD-TX-1010系列技术参数
额定电流:主铜件:20A
信号针:5A
耐电压:500V DC
接触电阻:主铜件:≤0.80mQ
信号针:≤1.50m2
绝缘电阻≥2000MΩ
瞬时电流:&A1min<80C 40A
温升:主铜件:20A 4h<60℃18#
信号针: 5A 4h<60℃ 26#
爬电距离:1.6mm
产品符合：ROHS
品牌：科斯达开关KSDKG
产地：中国东莞


航模连接器是用于遥控航空模型（航模）中，连接电源、信号线和其他电子元件的组件。这些连接器通常具有几个重要的特性和功能：
1.可靠性：航模在飞行过程中需要保持稳定的信号和电力供应，因此连接器必须具备良好的接触性能和抗振动能力。

2.重量轻：航模对重量敏感，因此连接器设计通常追求轻量化，以减少对飞行性能的影响。

3.多样性：根据不同的用途，连接器有多种类型，包括但不限于：
电源连接器：用于提供电源的连接，如XT60、Deans、JST等。
信号连接器：用于传输信号，如舵机连接器（通常是JR或Futaba类型）。
平衡连接器：在多电池系统中使用，确保每个电池单元的电量均衡。

4.易于连接和断开：航模连接器通常设计为方便插拔，以便于维护和更换配件。

5.耐高温和耐腐蚀性：部分连接器采用高耐久性材料，能够承受不同环境下的使用条件。

在选择航模连接器时，需要根据模型的需求、电流大小、使用环境等因素进行选择。总的来说，选择合适的连接器对于确保航模的正常运作和飞行安全至关重要。


航模连接器的特点主要包括以下几点：
1.轻量化：航模对重量有严格要求，连接器通常采用轻质材料，如塑料或铝合金，以减少整体重量。

2.高强度和耐用性：航模在飞行过程中面临较大的机械应力，连接器需具备足够的强度，能够承受震动和冲击。

3.抗腐蚀性：由于航模在不同环境条件下使用，连接器多采用耐腐蚀材料或表面处理，以抵御湿气和化学物质的侵蚀。

4.良好的导电性：连接器的金属触点通常采用高导电性材料（如铜镀金），确保电流传输稳定，减少信号损耗。

5.可靠的连接性：连接器设计需确保插拔简单，同时能稳固连接，防止在高强度飞行中发生松动。

6.防水防尘功能：部分航模连接器具备防水防尘设计，以增加在恶劣环境下的适用性。

7.多种类型和规格：根据不同的需求，航模连接器有多种形式，如插头、插座、束线接口等，适用于不同的电气连接需求。

8.易于维护：优质的航模连接器设计便于拆卸和更换，方便维修和升级。

这些特点使得航模连接器能够满足对性能、可靠性和耐用性等多方面的高要求。





Product Name: Model Aircraft Connector
Model airplane 3+7 male and female connector 10PIN
KSD-TX-1010 series technical parameters
Rated current: Main copper component: 20A
Signal needle: 5A
Voltage endurance: 500V DC
Contact resistance: Main copper component: ≤ 0.80mQ
Signal needle: ≤ 1.50m2
Insulation resistance ≥ 2000M Ω
Instantaneous current:&A1min<80C 40A
Temperature rise: Main copper component: 20A 4h<60 ℃ 18#
Signal needle: 5A 4h<60 ℃ 26#
Creepage distance: 1.6mm
Product compliance: ROHS
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Model airplane connector is a component used in remote-controlled aircraft models to connect power, signal lines, and other electronic components. These connectors typically have several important features and functions:
1. Reliability: Model aircraft require stable signal and power supply during flight, therefore connectors must have good contact performance and vibration resistance.

2. Lightweight: Model aircraft are sensitive to weight, so connector designs typically pursue lightweight to reduce the impact on flight performance.

3. Diversity: According to different purposes, there are various types of connectors, including but not limited to:
Power connector: used to provide power connections, such as XT60, Deans, JST, etc.
Signal connector: used for transmitting signals, such as servo connectors (usually JR or Futaba types).
Balanced connector: Used in multi battery systems to ensure balanced power supply for each battery cell.

4. Easy to connect and disconnect: Model airplane connectors are typically designed for easy insertion and removal, facilitating maintenance and replacement of accessories.

5. High temperature resistance and corrosion resistance: Some connectors are made of high durability materials that can withstand different environmental conditions.

When selecting a model airplane connector, it is necessary to choose based on factors such as the model's requirements, current size, and usage environment. Overall, choosing the appropriate connector is crucial for ensuring the normal operation and flight safety of the model airplane.


The characteristics of model airplane connectors mainly include the following:
1. Lightweight: Model aircraft have strict requirements for weight, and connectors are usually made of lightweight materials such as plastic or aluminum alloy to reduce overall weight.

2. High strength and durability: Model aircraft face significant mechanical stress during flight, and connectors need to have sufficient strength to withstand vibrations and impacts.

3. Corrosion resistance: Due to the use of model aircraft in different environmental conditions, connectors are often made of corrosion-resistant materials or surface treatments to resist the erosion of moisture and chemicals.

4. Good conductivity: The metal contacts of connectors are usually made of highly conductive materials (such as copper gold plating) to ensure stable current transmission and reduce signal loss.

5. Reliable connectivity: The connector design should ensure easy insertion and removal, while also ensuring a stable connection to prevent loosening during high-intensity flight.

6. Waterproof and dustproof function: Some model airplane connectors have waterproof and dustproof designs to increase their applicability in harsh environments.

7. Multiple types and specifications: According to different needs, model airplane connectors come in various forms, such as plugs, sockets, and cable connectors, which are suitable for different electrical connection requirements.

8. Easy to maintain: The high-quality model airplane connector design is easy to disassemble and replace, making maintenance and upgrades convenient.

These characteristics enable model aircraft connectors to meet high requirements for performance, reliability, and durability.
