KSD-DI-04F2-05

KSD-DI-04F2-05

  • 产品特性
  • 应用范围

图纸下载 样品申请

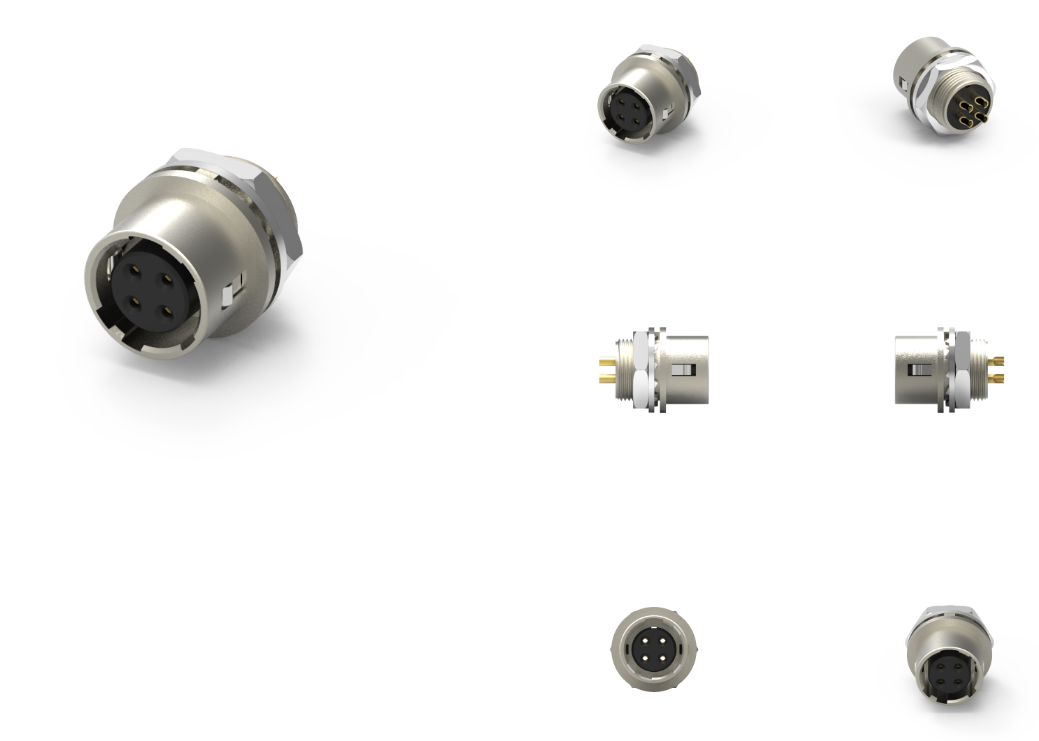

品名：Push Pull Size 7 系列DIN 母头连接器
1.材料
1-1.外壳：尼龙66 UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3. 外壳A：锌合金
1-4.外壳B：黄铜
1-5.外壳C：黄铜
1-6.螺钉：合金钢
1-7.斜坡：黄铜
1-8. SR：NBR；颜色：黑色
2.完成：
2-1.触点：金色闪光
2-2.外壳A:镍
2-3.外壳B：镍
2-4.外壳C：镍
2-5. 螺钉：镍
3.电气规格：
3-1.额定电流：2A
3-2.额定电压：4PIN 150V AC/200V DC
5~7针100VAC/140V DC
4.环境
4-1.工作温度：-25℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


DIN 母头连接器是与DIN公头连接器配对使用的电连接器。就像公头连接器一样，DIN母头连接器也遵循DIN标准，因此在设计与应用中具有良好的兼容性。DIN母头连接器通常用于音频、视频、数据传输等领域，具有稳定的电气连接和机械连接。

特点

1.类型和规格：
DIN母头连接器也有多种形式和针数，常见的包括：

3针DIN母头：用于简单的音频应用。

5针DIN母头：广泛用于MIDI连接及音频设备。

8针DIN母头：用于更复杂的数据和信号传输。

2.设计结构：
DIN母头连接器通常是圆形的，带有内置的接触引脚，外部有一个塑料外壳和金属部件用于保护和支持连接器。设计通常具有防错插入功能。

3.电气属性：
DIN母头可以支持多种信号，包括音频、控制和电源信号。引脚数量的不同使其能适应不同的应用场景。

应用领域

1.音频设备：
常见于合成器、老式音响系统、乐器及相关音频设备，用于信号连接。

2.计算机及数据接口：
在某些计算机周边设备的连接中，如老式打印机和扫描仪等。

3.工业设备：
在一些工业控制和自动化设备中，母头连接器用于与设备的连接。

4.汽车电子设备：
可用于汽车中的音响和其他电子设备的连接。

优势
稳定性：具有良好的机械固定性和电气连接可靠性，适合频繁插拔的应用。

多样性：多种类型和配置可以满足各种应用需求。

耐用性：通常采用坚固的材料和设计，适合较为恶劣的工作环境。

使用注意事项

1.匹配性：确保选择与所配用公头连接器兼容的DIN母头连接器（同样的类型和针数）。

2.插拔技巧：在插入和拔出连接器时，保持适度的力度，防止损坏连接器或连接口。

3.定期维护：检查连接器的接触点，确保没有灰尘或腐蚀，保持良好的电气接触。

小结
DIN母头连接器在众多电子设备中发挥着重要的连接作用，其多样化的规格和可靠的性能使其成为音频、数据传输及工业控制等领域的理想选择。



Product Name: Push Pull Size 7 Series DIN Female Connector
1. Materials
1-1. Shell: Nylon 66 UL94V-0; Color: Black
1-2. Contact: phosphor bronze
1-3.  Shell A: Zinc alloy
1-4. Shell B: Brass
1-5. Shell C: Brass
1-6. Screw: Alloy steel
1-7. Slope: Brass
1-8.  SR：NBR； Color: Black
2. Complete:
2-1. Contact: Gold Flash
2-2. Shell A: Nickel
2-3. Shell B: Nickel
2-4. Shell C: Nickel
2-5.  Screw: Nickel
3. Electrical specifications:
3-1. Rated current: 2A
3-2. Rated voltage: 4PIN 150V AC/200V DC
5-7 pins 100VAC/140V DC
4. Environment
4-1. Working temperature:- 25℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


DIN female connector is an electrical connector used in conjunction with DIN male connector. Just like male connectors, DIN female connectors also follow DIN standards, so they have good compatibility in design and application. DIN female connectors are commonly used in fields such as audio, video, and data transmission, with stable electrical and mechanical connections.

characteristic

1. Type and specification:
DIN female connectors also come in various forms and pin numbers, commonly including:

3-pin DIN female head: used for simple audio applications.

5-pin DIN female head: widely used for MIDI connections and audio devices.

8-pin DIN female head: used for more complex data and signal transmission.

2. Design structure:
DIN female connectors are typically circular with built-in contact pins, an external plastic casing, and metal components for protecting and supporting the connector. The design usually has anti error insertion function.

3. Electrical properties:
DIN female connectors can support multiple signals, including audio, control, and power signals. The difference in the number of pins enables it to adapt to different application scenarios.

application area

1. Audio equipment:
Commonly used in synthesizers, old-fashioned sound systems, musical instruments, and related audio equipment for signal connection.

2. Computer and data interface:
In the connection of certain computer peripheral devices, such as old-fashioned printers and scanners.

3. Industrial equipment:
In some industrial control and automation equipment, female connectors are used to connect with the equipment.

4. Automotive electronic devices:
Can be used for connecting audio systems and other electronic devices in cars.

advantage
Stability: It has good mechanical fixation and electrical connection reliability, suitable for applications with frequent plugging and unplugging.

Diversity: Multiple types and configurations can meet various application needs.

Durability: Typically made of sturdy materials and designed to withstand harsh working environments.

Precautions for use

1. Compatibility: Ensure that a DIN female connector (of the same type and number of pins) compatible with the male connector is selected.

2. Insertion and extraction techniques: When inserting and removing connectors, maintain moderate force to prevent damage to the connectors or connection ports.

3. Regular maintenance: Check the contact points of the connector to ensure there is no dust or corrosion, and maintain good electrical contact.

Summary
DIN female connectors play an important role in connecting numerous electronic devices, and their diverse specifications and reliable performance make them an ideal choice for fields such as audio, data transmission, and industrial control.
