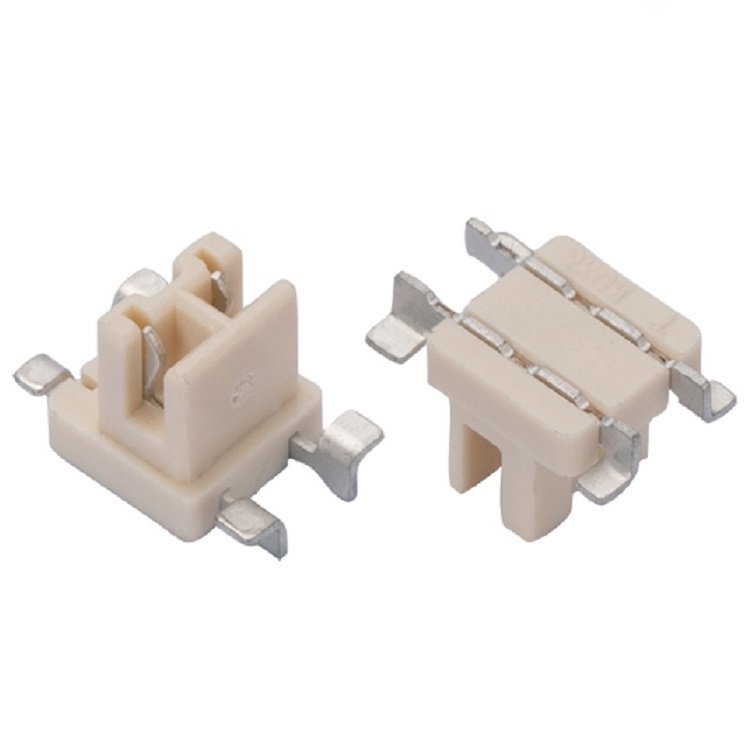

产品名称：聚光灯连接器
主要规格：
厚度：1.0mm
接触电阻：<20m2
绝缘电阻：>1000M2
额定电压：125V AC DC
额定电流：1.0A AC DC
耐电压：800V AC/分钟
温度范围：-40℃~+120℃
品牌：科斯达开关KSDKG
产地：中国东莞
聚光灯连接器（Spotlight Connector）是专门设计用于连接聚光灯、射灯或其他照明设备的电子元件。这种连接器确保灯具能够可靠地与电源和控制系统相连，广泛应用于家居照明、商业展示、舞台灯光、摄影等多个领域。
聚光灯连接器的类型
1.插拔式连接器：
快插连接器：允许快速连接和断开，适合需要频繁更换灯具的场合。
锁定连接器：配有锁定机制，确保连接更加稳固，防止意外脱落。
2.电缆连接器：
电缆组对连接器：将灯具连接到电源线，通常用于长距离连接。
Y型或T型连接器：在一个电源线上分出多个灯具连接端口，适合多灯组合。
3.专用连接器：
DMX连接器：常用于舞台灯光，通过DMX信号控制多个灯具。
调光连接器：允许调节灯光亮度，适用于需要特定照明效果的场合。
连接器的选择标准
电压和电流额定值：选择适合设备功率和电压的连接器，确保安全和稳定。
机械强度：根据使用环境的要求，选择耐用和防尘的连接器。
环境适应性：对于户外或潮湿环境的聚光灯，选择具备防水或耐腐蚀性能的连接器。
应用场景
家居照明：用于客厅、书房、厨房等室内聚光灯的连接。
商业照明：在商店、展示柜、博物馆等场所的重点照明。
舞台和摄影：用于舞台灯光、摄影灯等需要聚焦和调节光线的场合。
使用注意事项
1.保证电源已断开：在进行连接或维护时，务必切断电源以确保安全。
2.确认连接方向：确保连接器的插头和插座方向正确，以防损坏。
3.定期检查：定期检查连接器的接触点和绝缘性能，以防接触不良或短路。
4.使用合适的工具：在安装或更换连接器时，使用制造商推荐的工具和配件。
总结
聚光灯连接器在现代照明系统中起到重要作用，为各种照明解决方案提供可靠的电气连接。根据应用需求选择合适类型的连接器，可以确保照明系统的效率和安全性。
Product Name: Spotlight Connector
Main specifications:
Thickness: 1.0mm
Contact resistance:<20m2
Insulation resistance:>1000M2
Rated voltage: 125V AC DC
Rated current: 1.0A AC DC
Voltage endurance: 800V AC/min
Temperature range: -40 ℃~+120 ℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
A spotlight connector is an electronic component specifically designed to connect spotlights, spotlights, or other lighting devices. This connector ensures that the lighting fixtures can be reliably connected to power and control systems, and is widely used in various fields such as home lighting, commercial displays, stage lighting, photography, etc.
Types of spotlight connectors
1. Plug in connector:
Quick plug connector: allows for quick connection and disconnection, suitable for situations where frequent replacement of lighting fixtures is required.
Locking connector: equipped with a locking mechanism to ensure a more stable connection and prevent accidental detachment.
2. Cable connectors:
Cable group connector: used to connect lighting fixtures to power cords, typically for long-distance connections.
Y-shaped or T-shaped connector: Multiple lamp connection ports are split on one power line, suitable for multiple lamp combinations.
3. Specialized connectors:
DMX connector: commonly used for stage lighting, controlling multiple lamps through DMX signals.
Dimming connector: allows adjustment of light brightness, suitable for occasions that require specific lighting effects.
Selection criteria for connectors
Voltage and current ratings: Select connectors suitable for equipment power and voltage to ensure safety and stability.
Mechanical strength: Choose durable and dust-proof connectors according to the requirements of the usage environment.
Environmental adaptability: For spotlights in outdoor or humid environments, choose connectors with waterproof or corrosion-resistant properties.
Application scenarios
Home lighting: used for connecting indoor spotlights in living rooms, study rooms, kitchens, and other areas.
Commercial lighting: Key lighting in places such as shops, display cabinets, museums, etc.
Stage and Photography: Used for stage lighting, photography lights, and other occasions that require focusing and adjusting light.
Precautions for use
1. Ensure that the power is disconnected: When connecting or maintaining, be sure to cut off the power to ensure safety.
2. Confirm connection direction: Ensure that the plug and socket of the connector are oriented correctly to prevent damage.
3. Regular inspection: Regularly check the contact points and insulation performance of the connector to prevent poor contact or short circuit.
4. Use appropriate tools: When installing or replacing connectors, use the manufacturer's recommended tools and accessories.
summary
Spotlight connectors play an important role in modern lighting systems, providing reliable electrical connections for various lighting solutions. Choosing the appropriate type of connector based on application requirements can ensure the efficiency and safety of the lighting system.
