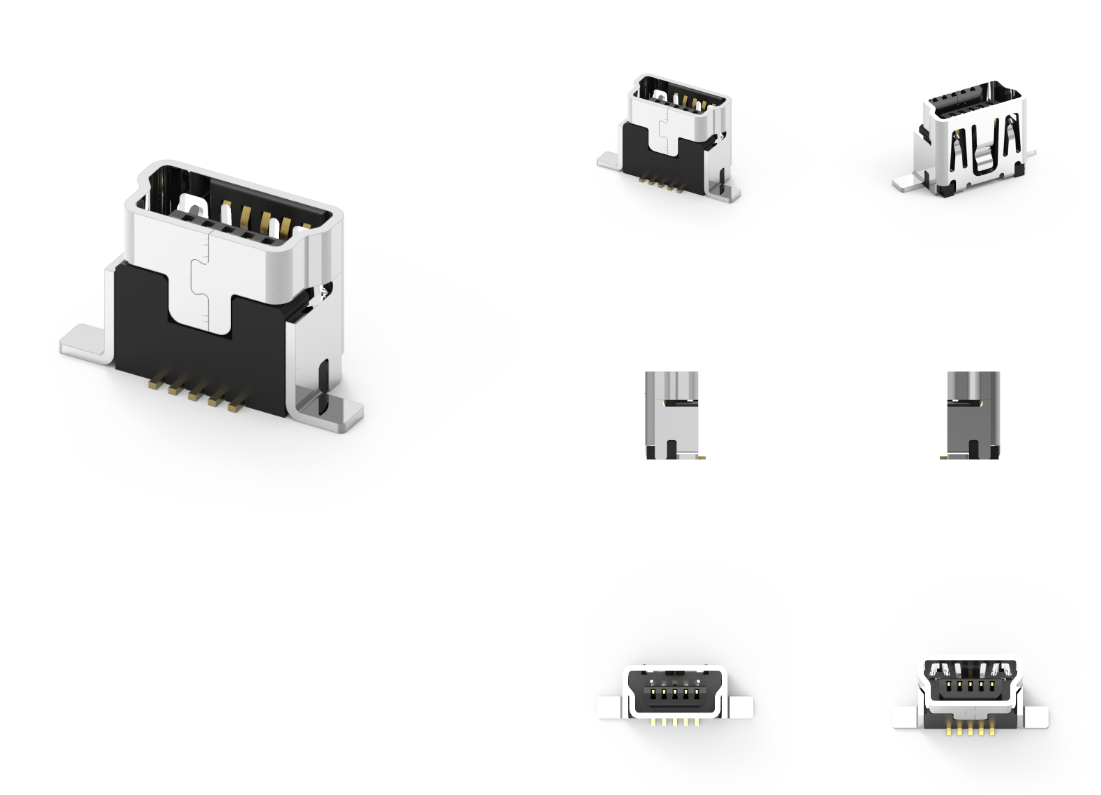

品名：Mini USB 母头连接器
注：
1.材料：
1-1.端子：磷青铜
1-2.住房：LCP
1-3.外壳：黄铜C2680 T=0.40mm。
2.完成：
2-1.联系方式：金10u”联系方式
焊料区域“无光泽锡”
两者均超过镍50u”
3.电气规格：
3-1.额定电流：引脚1&5 2A；引脚2、3和4 1A
3-2.电压：直流30V
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini USB 母头连接器 是一种常用于小型便携设备上的接口类型，它是 Mini USB 系列中一种端口，通常被用来接收 Mini USB 公头连接器。以下是关于 Mini USB 母头连接器的详细信息：
一、特征
1.尺寸：
Mini USB 母头的尺寸相较于标准的 USB-A 须要小得多，但比 Micro USB 稍大，适合在空间有限的设备中使用。
2.引脚配置：
Mini USB 母头通常有 5 个引脚（也有 4 个引脚的变种），用于同时传输电源和数据。
具体的引脚配置通常是：
Pin 1: VBUS（电源）
Pin 2: D-（数据-）
Pin 3: D+（数据+）
Pin 4: ID（用于设备识别，可用于适配器）
Pin 5: GND（接地）
3.耐用性和稳定性：
Mini USB 的设计比标准 USB 更坚固，专为更频繁的插拔和耐用性而设计，适合在移动环境中使用。
4.电气性能：
通常支持最大 5V 电压和约 500毫安的电流，能够满足许多小型设备的充电和数据传输需求。
二、应用领域
1.数码相机和录像机：
早期数码相机和录像机中广泛使用 Mini USB 接口进行数据传输和设备充电。
2.便携式媒体播放器：
一些旧款 MP3 播放器和便携设备使用该接口来进行充电和数据传输。
3.移动硬盘：
小型外部硬盘和闪存设备中的连接选项。
4.汽车电子设备：
一些汽车音响系统可能会配备 Mini USB 接口用于连接外部设备。
三、安装与维护建议
1.小心插拔：
在插入和拔出连接器时要避免强制力，避免损坏接口或连接器。
2.保持接口清洁：
定期检查并清洁 Mini USB 母头连接器，避免灰尘和污垢的积聚，可能影响连接性能。
3.遵循插入方向：
确保按照正确的方向插入连接器，以防止损坏引脚。
4.检查磨损情况：
定期检查连接器与电子设备之间的连接状态，确保没有松动或物理损坏。
四、总结
尽管 Mini USB 母头连接器 已不再是现代设备的主流连接方式，并且许多新设备已经转向使用 Micro USB 或 USB-C，但在某些老旧设备中仍然在使用。了解 Mini USB 的特性和使用场景，有助于您在遇到这类设备时更好地进行连接和维护。如果您有任何关于 Mini USB 母头连接器的具体问题或需要更多的信息，欢迎联系技术员！
Product Name: Mini USB Female Connector
Note:
1. Materials:
1-1. Terminal: phosphor bronze
1-2. Housing: LCP
1-3. Shell: Brass C2680 T=0.40mm.
2. Complete:
2-1. Contact Information: Jin 10u "Contact Information
Solder area "matte tin"
Both exceed 50u nickel
3. Electrical specifications:
3-1. Rated current: pins 1&5 2A; Pin 2, 3, and 4 1A
3-2. Voltage: 30V DC
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The Mini USB female connector is a type of interface commonly used on small portable devices. It is a port in the Mini USB series that is typically used to receive Mini USB male connectors. The following is detailed information about the Mini USB female connector:
1、 Features
1. Size:
The size of the Mini USB female head is much smaller than the standard USB-A, but slightly larger than the Micro USB, making it suitable for use in devices with limited space.
2. Pin configuration:
Mini USB female heads usually have 5 pins (there are also variants with 4 pins), used for simultaneous transmission of power and data.
The specific pin configuration is usually:
Pin 1: VBUS (power supply)
Pin 2: D - (Data -)
Pin 3: D+(Data+)
Pin 4: ID (used for device identification, can be used for adapters)
Pin 5: GND (Ground)
3. Durability and stability:
The design of Mini USB is more robust than standard USB, specifically designed for more frequent plugging and durability, making it suitable for use in mobile environments.
4. Electrical performance:
It usually supports a maximum voltage of 5V and a current of about 500mA, which can meet the charging and data transmission needs of many small devices.
2、 Application Fields
1. Digital cameras and recorders:
Mini USB interface was widely used in early digital cameras and recorders for data transfer and device charging.
2. Portable media player:
Some old MP3 players and portable devices use this interface for charging and data transfer.
3. Mobile hard drive:
Connection options for small external hard drives and flash memory devices.
4. Automotive electronic devices:
Some car audio systems may be equipped with Mini USB ports for connecting external devices.
3、 Installation and maintenance recommendations
1. Be careful when inserting and removing:
When inserting and removing connectors, avoid applying force to prevent damage to the interface or connector.
2. Keep the interface clean:
Regularly inspect and clean the Mini USB female connector to avoid the accumulation of dust and dirt, which may affect the connection performance.
3. Follow the insertion direction:
Make sure to insert the connector in the correct direction to prevent damage to the pins.
4. Check for wear and tear:
Regularly check the connection status between connectors and electronic devices to ensure there is no looseness or physical damage.
4、 Summary
Although Mini USB female connectors are no longer the mainstream connection method for modern devices, and many new devices have switched to using Micro USB or USB-C, they are still used in some older devices. Understanding the features and usage scenarios of Mini USB can help you better connect and maintain such devices. If you have any specific questions or need more information about the Mini USB female connector, please feel free to contact a technician!
