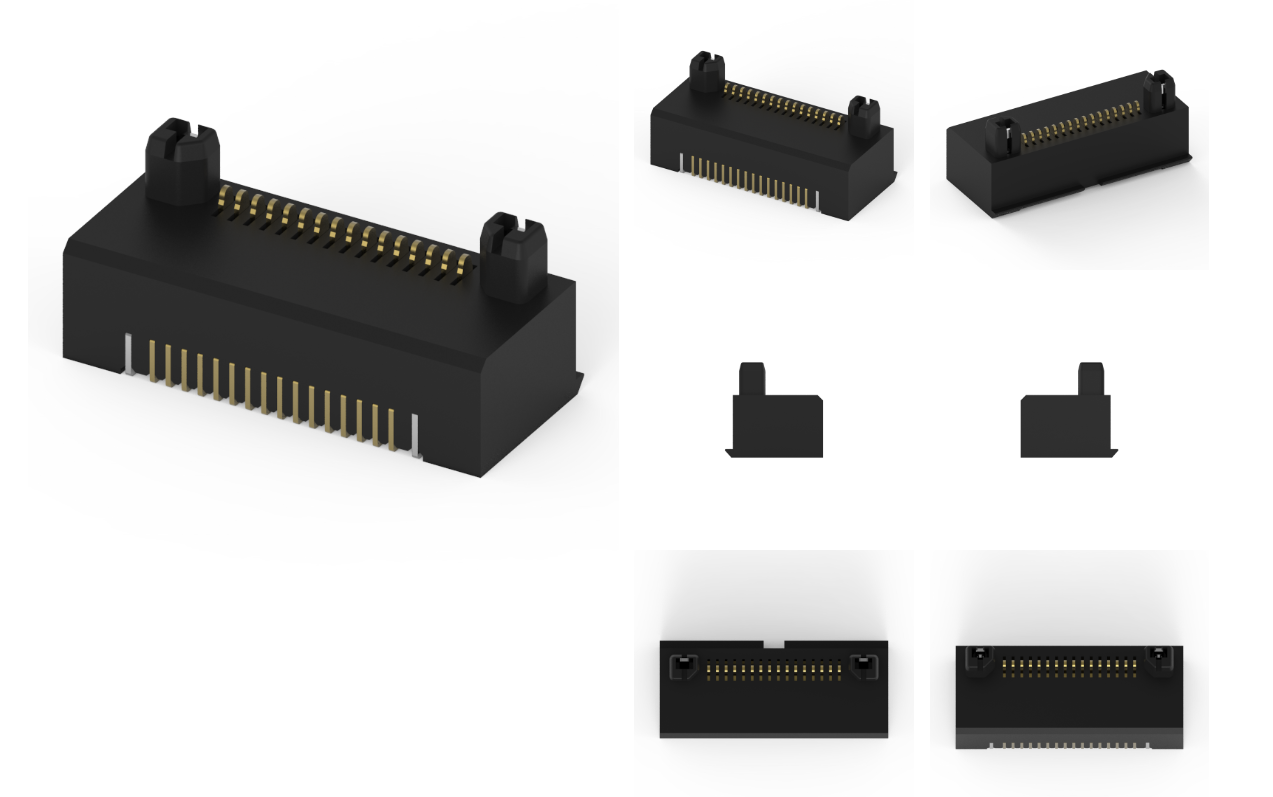

品名：HandyLink 公头连接器
11.材料：
1-1.外壳：LCP UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.锁扣：不锈钢
2.完成：
2-1.接触面积：最小5微英寸镀金
焊接区域：亮锡
底板：镍
2-2.批焊尾：亮锡
底板：镍
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：30V
4.环境：
4-1.工作温度：-40℃~80℃
品牌：科斯达开关KSDKG
产地：中国东莞
HandyLink 公头连接器 是一种广泛应用于电子和通信领域的连接器。该连接器以其紧凑设计和高可靠性而受到青睐，特别适用于需要耐用性和快速连接的应用场景。
HandyLink 公头连接器概述
特征
1.紧凑设计：
HandyLink 公头连接器是一种小型化连接器，适合于空间受限的应用环境。
2.多针脚配置：
根据不同的功能需求，HandyLink 连接器通常提供多种针脚数量和配置，便于满足各种信号传输的需求。
3.高可靠性：
连接器设计时考虑到抗磨损和抗干扰，能够在频繁插拔的情况下保持良好的接触，确保信号传输的稳定性。
4.材料和工艺：
通常采用优质合金材料制造连接器的引脚，以提高导电性能和耐用性。同时配备防护外壳，保障连接器的使用寿命。
5.应用广泛：
适用于连接各种设备，例如计算机、通信设备、工业自动化设备等。
性能参数
额定电流：一般为1A到10A，具体取决于设计和模型。
额定电压：通常在30V到500V之间。
工作温度：一般范围从-40°C到+85°C，适应多种环境条件。
应用领域
1.工业自动化：
在PLC、传感器、执行器等设备之间进行可靠的信号连接。
2.通信系统：
用于网络设备和通信终端之间的数据传输。
3.消费电子：
应用于各种电子设备，如音频设备、计算机周边产品和游戏设备等。
4.医疗设备：
在医疗仪器和设备中，提供信号或电源连接，确保设备的正常运行。
5.汽车电子：
用于汽车中，连接各种传感器和控制单元。
安装与维护建议
1.连接前检查：
确保连接器和接口干净，没有灰尘或杂物，以保证良好的接触。
2.确认插入方向：
在插入时应确保正确的插入方向，以避免损坏连接器。
3.插拔注意：
在插拔过程中，应避免用力过猛，以防止引脚弯曲或损坏。
4.定期检查：
定期检查连接器的状态，以确保其正常工作，必要时进行清洁或更换。
总结
HandyLink 公头连接器 是一种高性能、可靠的连接解决方案，广泛应用于电子和通信领域。其高密度设计和优秀的电气性能使其在多种场合中极具实用性。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: HandyLink Male Connector
11. Materials:
1-1. Shell: LCP UL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3. Buckle: Stainless steel
2. Complete:
2-1. Contact area: minimum 5 micro inches gold-plated
Welding area: Bright tin
Bottom plate: Nickel
2-2. Batch soldering tail: bright tin
Bottom plate: Nickel
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 30V
4. Environment:
4-1. Working temperature:- 40℃~80℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
HandyLink male connector is a widely used connector in the fields of electronics and communication. This connector is favored for its compact design and high reliability, making it particularly suitable for applications that require durability and quick connections.
Overview of HandyLink Male Connector
features
1. Compact design:
HandyLink male connector is a miniaturized connector suitable for applications with limited space.
2. Multi pin configuration:
According to different functional requirements, HandyLink connectors typically offer multiple pin numbers and configurations to meet various signal transmission needs.
3. High reliability:
When designing connectors, consideration is given to wear resistance and anti-interference, which can maintain good contact in frequent plugging and unplugging situations, ensuring the stability of signal transmission.
4. Materials and processes:
The pins of connectors are usually made of high-quality alloy materials to improve conductivity and durability. At the same time, it is equipped with a protective shell to ensure the service life of the connector.
5. Widely applicable:
Suitable for connecting various devices, such as computers, communication equipment, industrial automation equipment, etc.
performance parameter
Rated current: generally ranging from 1A to 10A, depending on the design and model.
Rated voltage: usually between 30V and 500V.
Working temperature: generally ranging from -40 ° C to+85 ° C, suitable for various environmental conditions.
application area
1. Industrial automation:
Establish reliable signal connections between devices such as PLCs, sensors, and actuators.
2. Communication system:
Used for data transmission between network devices and communication terminals.
3. Consumer electronics:
Applied to various electronic devices, such as audio equipment, computer peripherals, and gaming devices.
4. Medical equipment:
In medical instruments and equipment, provide signal or power connections to ensure the normal operation of the equipment.
5. Automotive Electronics:
Used in automobiles to connect various sensors and control units.
Installation and maintenance recommendations
1. Check before connection:
Ensure that the connectors and interfaces are clean and free of dust or debris to ensure good contact.
2. Confirm insertion direction:
When inserting, ensure the correct insertion direction to avoid damaging the connector.
3. Precautions for plugging and unplugging:
During the insertion and extraction process, excessive force should be avoided to prevent the pins from bending or being damaged.
4. Regular inspection:
Regularly check the status of the connector to ensure its proper functioning, and clean or replace it if necessary.
summary
HandyLink male connector is a high-performance and reliable connection solution widely used in the fields of electronics and communication. Its high-density design and excellent electrical performance make it highly practical in various situations. If you have further questions or need specific technical parameters, please feel free to contact the technician!
