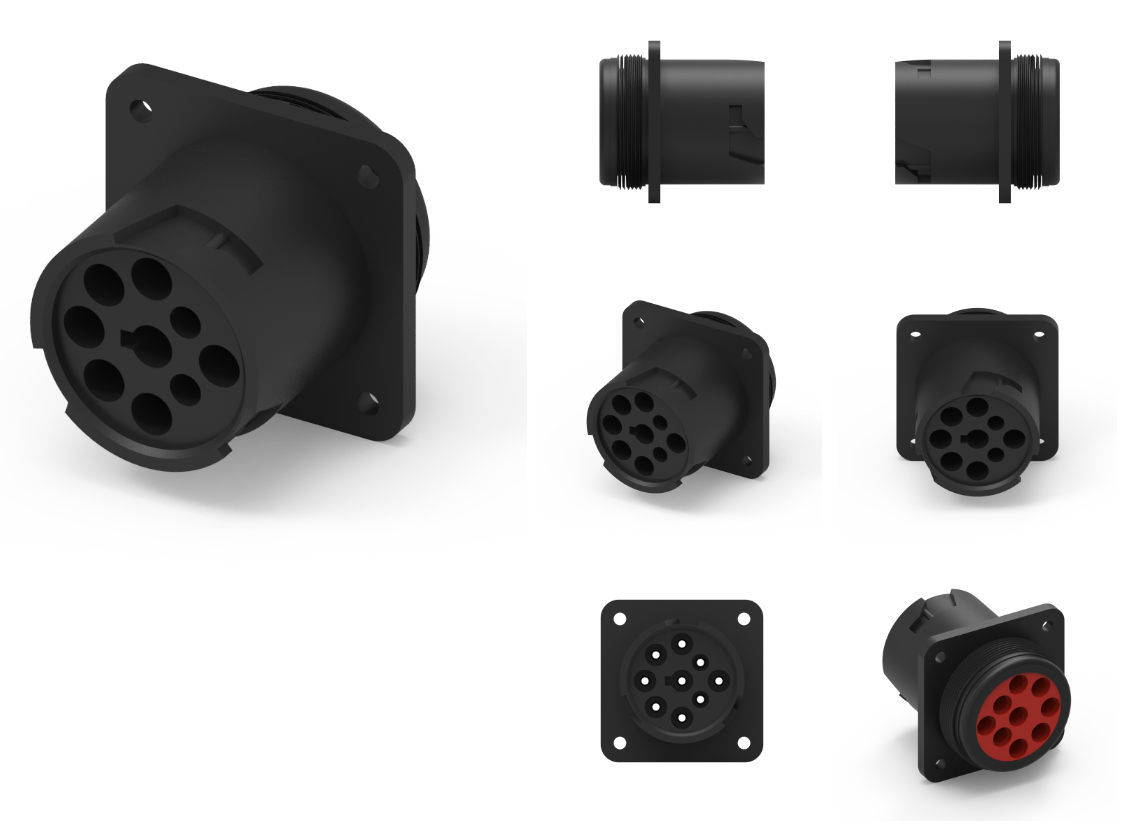

品名：DT连接器HD10母头
1.材料：
1-1.绝缘材料：PA66:CLR：灰色
1-2.外壳：PA66 JCOLR：灰色
1-3.后盖:PA66：颜色：灰色
1-4.橡胶：硅胶：颜色：橙色
2.电气规格：
2-1.额定电流：25A
2-2.额定电压：500V
2-3.防水等级：IP67
3.环境：
3-1.0工作温度：-40°~105°
品牌：科斯达开关KSDKG
产地：中国东莞
HD10母头连接器是DT连接器系列中的一种高密度母头连接器，广泛应用于汽车、工业设备、航空航天和军事等领域。其设计确保在恶劣环境中提供可靠的电气连接。
HD10母头连接器概述
特征
1.高密度连接：
HD10母头具有多针脚配置，能够在相对紧凑的空间内实现多个电气连接，适合各种小型化设备。
2.防护等级：
通常具备IP67或更高等级的防护，防水、防尘，能够承受湿气、灰尘及其他环境因素的影响。
3.耐用性：
采用高强度的工程塑料和金属材料，使其非常耐用，适合在极端温度和高振动条件下使用。
4.锁定机制：
配备有效的锁定系统，确保连接稳固，以防止在振动或冲击条件下松脱。
5.多种配置选项：
HD10母头可根据具体需求提供多种针脚数目选择，通常有6、12、16等多种配置，适应不同的电气连接需求。
应用领域
1.汽车行业：
用于连接传感器、控制单元和其他电子部件，支持稳定的数据传输。
2.工业设备：
在自动化控制系统、机器设备和生产线中常见，确保设备间的可靠连接。
3.航空航天与军事：
适合于航空航天器和军事装备等需要高可靠性的领域，以确保关键系统的正常运行。
4.重型机械：
在农业和建筑机械中承受高负荷及恶劣环境，提供稳固的电气连接。
安装与维护建议
1.确认连接：
在插入HD10母头连接器时，确保与相应的公头对齐并完全插入，锁定到位。
2.定期检查：
定期检查连接器，确保没有污垢、腐蚀或其他损害，以保持最佳的电气性能。
3.环境适应：
在极端气候和环境下使用时，定期检查连接器的防护性能。
4.避免超载：
确保在产品规格范围内使用，避免电流或电压超出连接器的承受能力。
总结
HD10母头连接器 提供了一种可靠的高密度电气连接解决方案，适用于众多行业。其卓越的防护性和耐用性使其在恶劣环境中也能正常工作，确保设备的稳定运行。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: DT Connector HD10 Female Head
1. Materials:
1-1. Insulation material: PA66:CLR： grey
1-2. Shell: PA66 JCOLR： grey
1-3. Rear cover: PA66： Color: Grey
1-4. Rubber: Silicone: Color: Orange
2. Electrical specifications:
2-1. Rated current: 25A
2-2. Rated voltage: 500V
2-3. Waterproof grade: IP67
3. Environment:
3-1.0 Operating temperature:- 40°~105°
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
HD10 female connector is a high-density female connector in the DT connector series, widely used in fields such as automotive, industrial equipment, aerospace, and military. Its design ensures reliable electrical connections in harsh environments.
Overview of HD10 Female Connector
features
1. High density connection:
The HD10 female head has a multi pin configuration, which can achieve multiple electrical connections in a relatively compact space, suitable for various miniaturized devices.
2. Protection level:
It usually has IP67 or higher protection, waterproof, dustproof, and can withstand the influence of moisture, dust, and other environmental factors.
3. Durability:
Using high-strength engineering plastics and metal materials, it is very durable and suitable for use under extreme temperature and high vibration conditions.
4. Locking mechanism:
Equipped with an effective locking system to ensure a secure connection and prevent loosening under vibration or impact conditions.
5. Multiple configuration options:
HD10 female head can provide multiple pin numbers to choose from according to specific needs, usually with various configurations such as 6, 12, 16, etc., to adapt to different electrical connection requirements.
application area
1. Automotive industry:
Used to connect sensors, control units, and other electronic components, supporting stable data transmission.
2. Industrial equipment:
It is common in automation control systems, machinery equipment, and production lines to ensure reliable connections between devices.
3. Aerospace and Military:
Suitable for fields such as aerospace and military equipment that require high reliability to ensure the normal operation of critical systems.
4. Heavy machinery:
To withstand high loads and harsh environments in agricultural and construction machinery, providing stable electrical connections.
Installation and maintenance recommendations
1. Confirm connection:
When inserting the HD10 female connector, ensure that it is aligned with the corresponding male connector and fully inserted, locking it in place.
2. Regular inspection:
Regularly inspect connectors to ensure they are free from dirt, corrosion, or other damage to maintain optimal electrical performance.
3. Environmental adaptation:
Regularly check the protective performance of connectors when used in extreme climates and environments.
4. Avoid overloading:
Ensure that it is used within the product specifications to avoid current or voltage exceeding the connector's capacity.
summary
The HD10 female connector provides a reliable high-density electrical connection solution suitable for many industries. Its excellent protection and durability enable it to work properly even in harsh environments, ensuring the stable operation of the equipment. If you have further questions or need specific technical parameters, please feel free to contact the technician!
