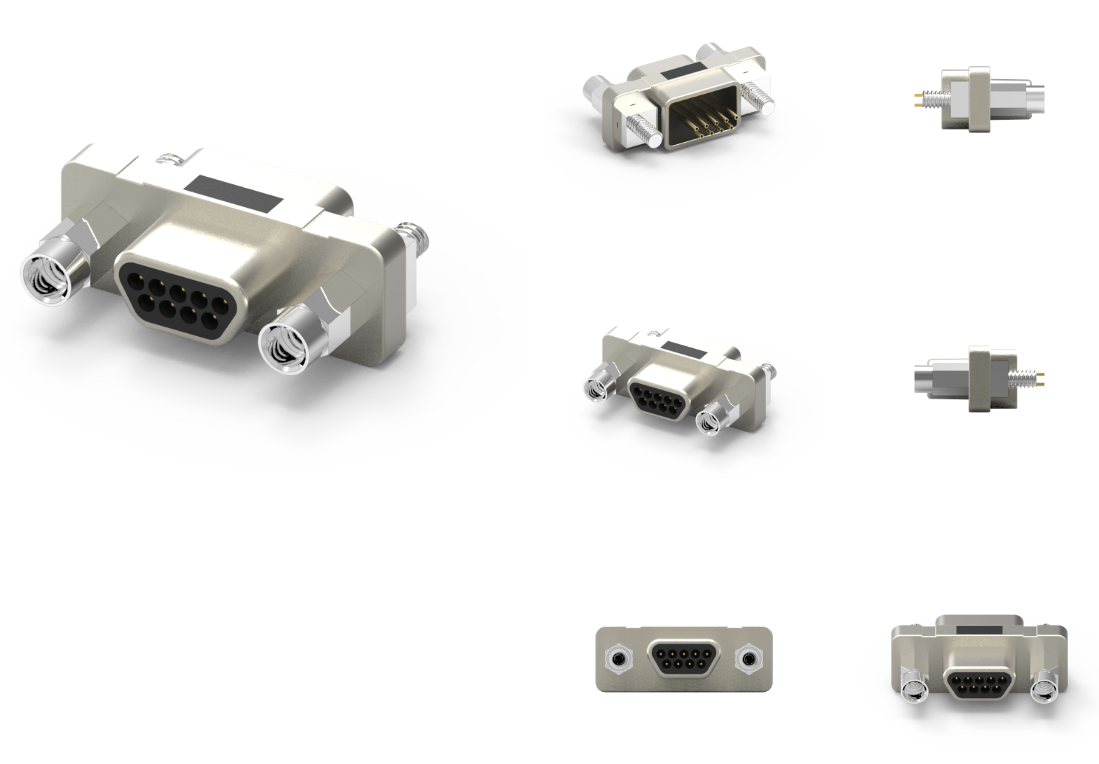

品名：Micro D-Sub 母头连接器
1.材料
1-1. 外壳：LCP UL94-V0颜色：黑色
1-2. 触点：磷青铜
1-3. 前壳：SPCC
1-4. 外壳：黄铜
1-5. 接地：黄铜
1-6. 螺钉：黄铜
2.完成：
2-1.触点：金15u
SOLDER AERA上的MATTE TIN 60u”
2-2. 前壳：整体镀镍60u“~100u”
2-3. 外壳：整体镀镍60u“~100u”
2-4. 接地：全镀镍60u“~100u”
2-5. 螺丝：整体镀镍60u“~100u”
3.电气规格：
3-1. 额定电流：25℃/77°F时1A，70℃/158°F时0.7A
3-2. 电压：350VAC
4.环境：
4-1. 工作温度：-40℃~+125℃
品牌：科斯达开关KSDKG
产地：中国东莞
Micro D-Sub 母头连接器 是一种小型化的 D-Sub 连接器，通常用于在有限空间中提供高密度、高可靠性的电气连接。与标准 D-Sub 连接器相比，Micro D-Sub 的体积更小，更适合紧凑的电子设备设计。
Micro D-Sub 母头连接器概述
特征
1.紧凑设计：
Micro D-Sub 母头连接器的设计小巧，适合在空间受限的设备中使用，如便携式仪器、嵌入式系统以及其他电子设备。
2.针脚配置：
可提供多种引脚配置，通常从9针到37针不等，以满足不同应用的需求。
3.可靠连接：
采用插拔式设计，确保在频繁插拨过程中保持优良的接触安全性。同时，具有抗插拔力，避免因使用不当导致的连接中断。
4.材料和表面处理：
外壳通常由耐腐蚀的金属材料制成，并采用镀镍或镀金处理，以增强耐用性和导电性能。针脚由高导电性的材料制成，以确保良好的电气连接。
5.防护设计：
许多 Micro D-Sub 母头连接器具备防护措施，如密封和绝缘等级，以抵御环境影响（如湿气和灰尘）。
性能参数
额定电流：通常为1A至5A，具体值根据型号和配置有所不同。
额定电压：一般在30V至500V之间。
工作温度范围：通常为-40°C到+125°C，适用于多种工作环境。
应用领域
1.通信设备：
在数据通信设备、网络设备中用作信号和数据的连接。
2.工业设备：
适用于PLC、传感器和致动器的连接，保证信号传输的稳定性。
3.医疗设备：
在医疗仪器和监测设备中，实现数据采集和设备控制。
4.计算机与外围设备：
用于计算机及其外围设备之间的数据和信号连接。
5.军工与航空航天：
广泛用于战略军事设备和航空航天器，满足高可靠性和抗干扰的要求。
安装与维护建议
1.连接前检查：
在连接之前，确保连接器和插座表面清洁，没有灰尘或氧化物，以避免接触不良。
2.确认插入方向：
确保插头能够正确插入插座，并遵循设计的插入方向，避免物理损坏。
3.固定与支持：
若连接器有额外的固定装置，确保其固定到位，以防止在使用中松动。
4.定期检查与维护：
定期检查连接器的状态，注意检测接触的氧化情况，必要时进行清洁和处理。
总结
Micro D-Sub 母头连接器 是一种高密度、高可靠性的小型电气连接解决方案，广泛应用于各种电子设备。其紧凑结构与卓越性能使其在对空间和性能要求高的领域中非常受欢迎。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: Micro D-Sub Female Connector
1. Materials
1-1. Shell: LCP UL94-V0 Color: Black
1-2. Contact: phosphor bronze
1-3. Front shell: SPCC
1-4. Shell: Brass
1-5. Grounding: brass
1-6. Screw: brass
2. Complete:
2-1. Contact: Gold 15u
MATE TIN 60u on SOLDER AERA
2-2. Front shell: Whole nickel plated 60u "~100u"
2-3. Shell: Whole nickel plated 60u "~100u"
2-4. Grounding: Fully nickel plated 60u "~100u"
2-5. Screw: Whole nickel plated 60u "~100u"
3. Electrical specifications:
3-1. Rated current: 1A at 25 ℃/77 ° F, 0.7A at 70 ℃/158 ° F
3-2. Voltage: 350VAC
4. Environment:
4-1. Working temperature:- 40℃~+125℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Micro D-Sub female connector is a miniaturized D-Sub connector commonly used to provide high-density, high reliability electrical connections in limited spaces. Compared to standard D-Sub connectors, Micro D-Sub has a smaller volume and is more suitable for compact electronic device designs.
Overview of Micro D-Sub Female Connector
features
1. Compact design:
The Micro D-Sub female connector is designed to be compact and suitable for use in devices with limited space, such as portable instruments, embedded systems, and other electronic devices.
2. Pin configuration:
Multiple pin configurations are available, typically ranging from 9 to 37 pins, to meet the needs of different applications.
3. Reliable connection:
Adopting a plug-in design to ensure excellent contact safety during frequent plugging and unplugging processes. At the same time, it has anti plug resistance to avoid connection interruption caused by improper use.
4. Materials and surface treatment:
The casing is usually made of corrosion-resistant metal materials and treated with nickel or gold plating to enhance durability and conductivity. The pins are made of highly conductive materials to ensure good electrical connections.
5. Protection design:
Many Micro D-Sub female connectors have protective measures such as sealing and insulation levels to resist environmental influences such as moisture and dust.
performance parameter
Rated current: usually ranging from 1A to 5A, with specific values depending on the model and configuration.
Rated voltage: generally between 30V and 500V.
Working temperature range: typically -40 ° C to+125 ° C, suitable for various working environments.
application area
1. Communication equipment:
Used as a connection for signals and data in data communication equipment and network devices.
2. Industrial equipment:
Suitable for connecting PLCs, sensors, and actuators to ensure stable signal transmission.
3. Medical equipment:
Realize data collection and device control in medical instruments and monitoring equipment.
4. Computers and peripherals:
Used for data and signal connections between computers and their peripheral devices.
5. Military industry and aerospace:
Widely used in strategic military equipment and aerospace vehicles to meet the requirements of high reliability and anti-interference.
Installation and maintenance recommendations
1. Check before connection:
Before connecting, ensure that the surfaces of the connector and socket are clean and free of dust or oxides to avoid poor contact.
2. Confirm insertion direction:
Ensure that the plug can be correctly inserted into the socket and follow the designed insertion direction to avoid physical damage.
3. Fixed and supported:
If the connector has additional fixing devices, ensure that they are securely in place to prevent loosening during use.
4. Regular inspection and maintenance:
Regularly check the status of the connector, pay attention to detecting the oxidation of the contact, and clean and handle it if necessary.
summary
Micro D-Sub female connector is a high-density, high reliability small electrical connection solution widely used in various electronic devices. Its compact structure and excellent performance make it very popular in fields that require high space and performance. If you have further questions or need specific technical parameters, please feel free to contact the technician!
