KSD-KMR4 series 技术特性
标准规范
电气银金
最大功率：1瓦0.2瓦
最大电压：32伏直流32伏直流
最低电压：20mVDC 20mVDC
最大电流：50 mA 10 mA
最小电流：1mA*1mA*
介电强度：≥250 Vrms
接触电阻：≤100 mΩ
绝缘电阻：≥1GΩ
弹跳时间：≤3ms
*对于ULC版本，1.8 VDC时的最小电流为1µA
环保银金
工作温度：-40℃至85℃-40℃至125℃
储存温度：-55˚C至85˚C-55˚C至125˚C
流程
焊接：无铅回流焊接工艺符合
IEC 61760-1标准。
包装
每卷6000件
外径330毫米±2毫米
注：以上列出的规格适用于具有标准选项的开关。
有关特定和自定义开关的信息，请咨询客户服务中心。
规范
功能：瞬时动作
接触布置：1接触=SPST，N.O。
端子：用于SMT的鸥翼型
机械
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA
产品应用：医疗电器、航模、无人机、灯具照明、通讯、控制手柄、速控设备、新能源、航模设备、仪表仪器、小家电、汽车等领域
科斯达开关厂KSD-KMR4 series 系列微型贴片按键开关 SMT 顶部起动开关具有超低电流性能, 非常适合工业、医疗和汽车应用。它是一款持久耐用的开关, 即使在最恶劣的环境下使用, 触感也非常出色。
Technical characteristics of KSD-KMR4 series
standard specification
Electrical Silver Gold
Maximum power: 1 watt 0.2 watts
Maximum voltage: 32 volts DC 32 volts DC
Minimum voltage: 20mVDC 20mVDC
Maximum current: 50 mA, 10 mA
Minimum current: 1mA * 1mA*
Dielectric strength: ≥ 250 Vrms
Contact resistance: ≤ 100 m Ω
Insulation resistance: ≥ 1G Ω
Bounce time: ≤ 3ms
*For the ULC version, the minimum current at 1.8 VDC is 1 µ A
Environmental Protection Silver Gold
Working temperature: -40 ℃ to 85 ℃ -40 ℃ to 125 ℃
Storage temperature: -55 ° C to 85 ° C -55 ° C to 125 ° C
technological process
Welding: lead-free reflow soldering process meets the requirements
IEC 61760-1 standard.
packing
6000 pieces per roll
Outer diameter 330 millimeters ± 2 millimeters
Note: The specifications listed above apply to switches with standard options.
For information on specific and custom switches, please consult the customer service center.
standard
Function: Instantaneous action
Contact arrangement: 1 contact=SPST, N.O.
Terminal: gull wing shaped for SMT
Mechanics
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA
Product applications: medical appliances, model aircraft, drones, lighting fixtures, communication, control handles, speed control equipment, new energy, model aircraft equipment, instrumentation, small appliances, automobiles and other fields

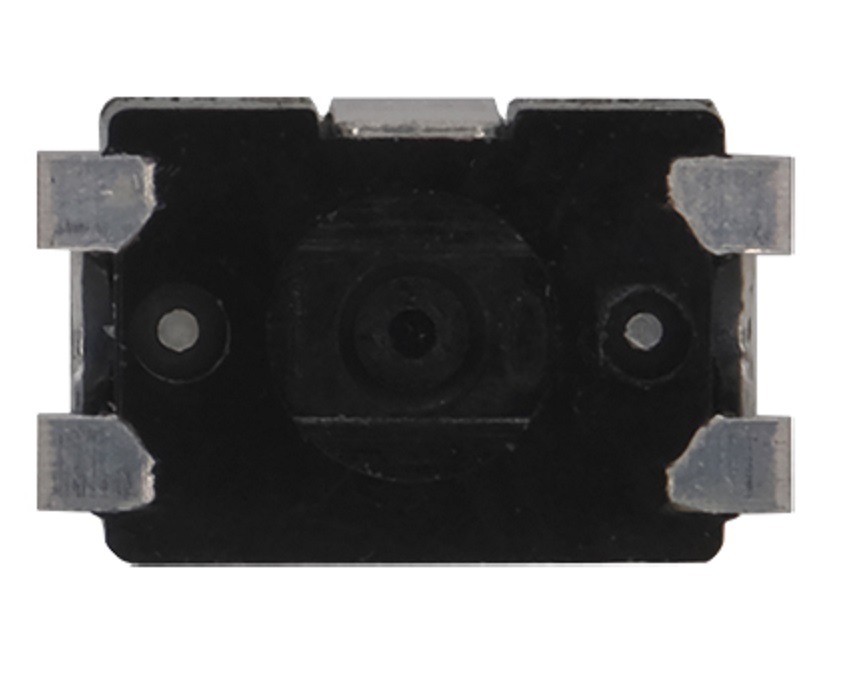

The KSD-KMR4 series micro surface mount key switch SMT top start switch from Costa Switch Factory has ultra-low current performance, making it very suitable for industrial, medical, and automotive applications. It is a durable switch that provides excellent tactile feedback even in the harshest environments.
Current Rating:50mA @ 32 VDC
Circuit:SPST-NO
Mounting Type:Surface Mount
Sealing:Sealed - IP40
Illumination:No/None
Switch Function:Off-Mom
Electrical Life Cycles:100,000
Actuator Type:Standard
Actuator Height off PCB, from Pins:
Actuator Orientation:Top Actuated
Termination Style:Gull Wing
Footprint:4,2 mm x 2,8 mm
Illumination Voltage (Nominal):
Illumination Type, Color:
Operating Force:120 gf
Additional Features:
Packaging:Tape & Reel
