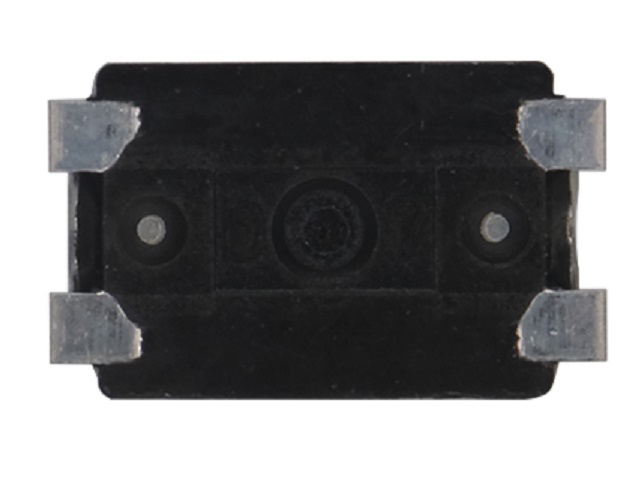

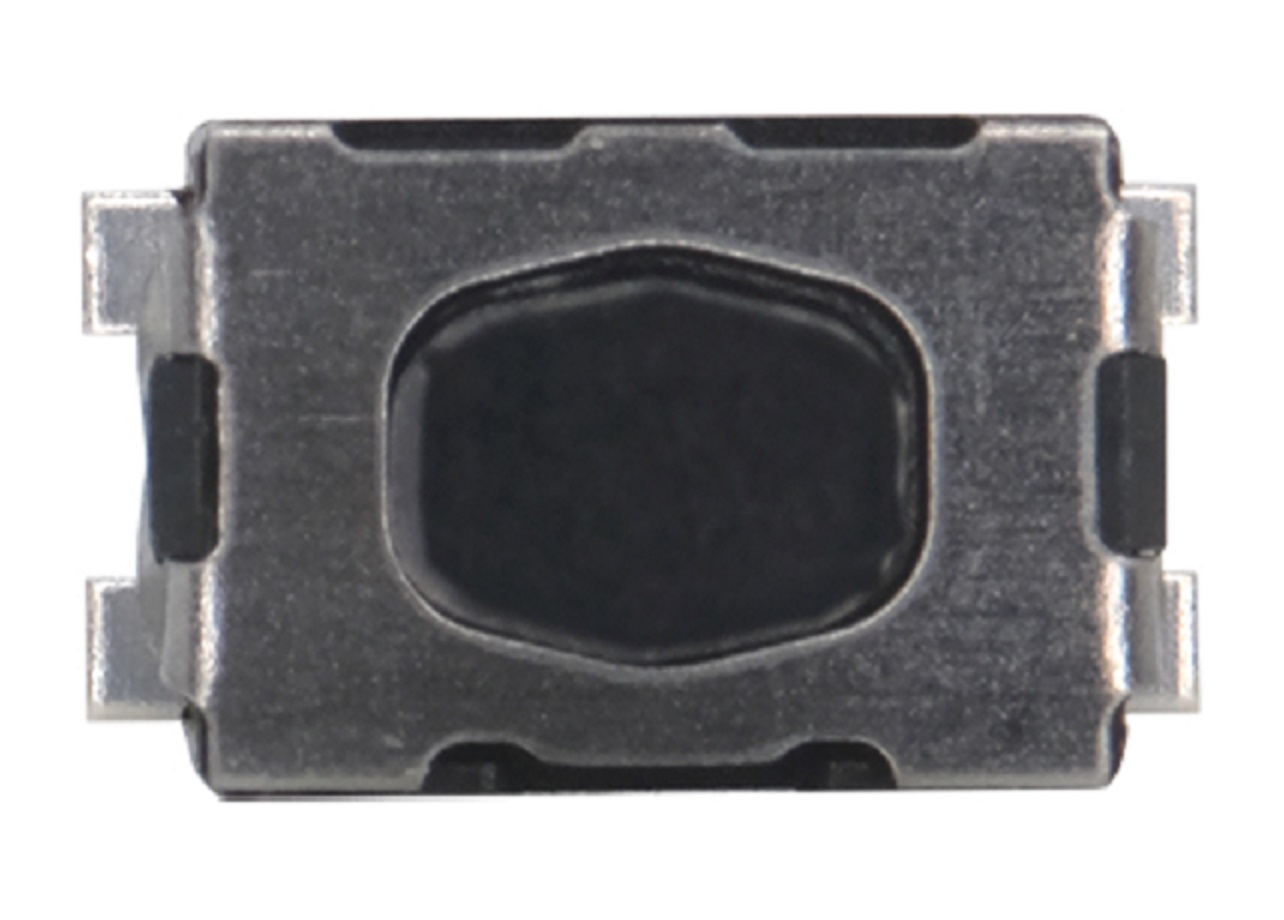

KSD-KMR6 series技术特性
标准规范
电气银金
最大功率：1瓦0.2瓦
最大电压：32伏直流32伏直流
最低电压：20mVDC 20mVDC
最大电流：50 mA 10 mA
最小电流：1mA*1mA*
介电强度：≥250 Vrms
接触电阻：≤100 mΩ
绝缘电阻：≥1GΩ
弹跳时间：≤3ms
*对于ULC版本，1.8 VDC时的最小电流为1µA
环保银金
工作温度：-40℃至85℃-40℃至125℃
储存温度：-55˚C至85˚C-55˚C至125˚C
流程
焊接：无铅回流焊接工艺符合
IEC 61760-1标准。
包装
卷装7000件
外径330毫米±2毫米
注：以上列出的规格适用于具有标准选项的开关。
有关特定和自定义开关的信息，请咨询客户服务中心。
规范
功能：瞬时动作
接触布置：1接触=SPST，N.O。
端子：用于SMT的鸥翼型
机械
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA
产品应用：医疗电器、航模、无人机、灯具照明、通讯、控制手柄、速控设备、新能源、航模设备、仪表仪器、小家电、汽车等领域
科斯达开关厂KSD-KMR6 series 系列立贴轻触开关共有 5 个系列, 是坚固, 紧凑的开关, 提供从 1.20N 到 4N 的各种力度, 旨在帮助从事消费类、汽车、工业和医疗产品行业的工程师。不同系列有不同的密封等级（IP40 或 IP67）及触头（硅胶或塑胶）, 并具有接地引脚选项。ULC 版本具有超低电流特性, 在某些应用中尤为需要。KSD-KMR 系列微型开关非常适合新的创新设计, 这些设计必须足够坚固, 能够在常规使用和经常暴露于元素中生存。
KSD-KMR2 系列特点
硅胶触头
1.9 mm 高
最多 300,000 次使用寿命
提供接地引脚选项
可提供 1.2N、2N、3N、4N 操作力
KMR4 系列
KSD-KMR4 系列特点特点
硅胶触头
2.5 mm 高
最多 300,000 次使用寿命
提供接地引脚选项
可提供 1.2N、2N、3N、4N 操作力
KMR8 系列
KSD-KMR8 系列特点特点
塑胶触头
1.9 mm 高
最多 200,000 次使用寿命
提供接地引脚选项
可提供 1.2N、2N、3N 操作力
Technical characteristics of KSD-KMR6 series
standard specification
Electrical Silver Gold
Maximum power: 1 watt 0.2 watts
Maximum voltage: 32 volts DC 32 volts DC
Minimum voltage: 20mVDC 20mVDC
Maximum current: 50 mA, 10 mA
Minimum current: 1mA * 1mA*
Dielectric strength: ≥ 250 Vrms
Contact resistance: ≤ 100 m Ω
Insulation resistance: ≥ 1G Ω
Bounce time: ≤ 3ms
*For the ULC version, the minimum current at 1.8 VDC is 1 µ A
Environmental Protection Silver Gold
Working temperature: -40 ℃ to 85 ℃ -40 ℃ to 125 ℃
Storage temperature: -55 ° C to 85 ° C -55 ° C to 125 ° C
technological process
Welding: lead-free reflow soldering process meets the requirements
IEC 61760-1 standard.
packing
Roll up 7000 pieces
Outer diameter 330 millimeters ± 2 millimeters
Note: The specifications listed above apply to switches with standard options.
For information on specific and custom switches, please consult the customer service center.
standard
Function: Instantaneous action
Contact arrangement: 1 contact=SPST, N.O.
Terminal: gull wing shaped for SMT
Mechanics
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA
Product applications: medical appliances, model aircraft, drones, lighting fixtures, communication, control handles, speed control equipment, new energy, model aircraft equipment, instrumentation, small appliances, automobiles and other fields
The KSD-KMR6 series of stand up touch switches from Kosda Switch Factory consists of 5 series, which are sturdy and compact switches offering various strengths from 1.20N to 4N, designed to assist engineers in the consumer, automotive, industrial, and medical product industries. Different series have different sealing levels (IP40 or IP67) and contacts (silicone or plastic), and have grounding pin options. The ULC version has ultra-low current characteristics, which are particularly necessary in certain applications. The KSD-KMR series microswitches are highly suitable for new innovative designs that must be robust enough to survive in conventional use and frequent exposure to elements.
KSD-KMR2 series features
Silicone contact
1.9 mm high
Maximum service life of 300000 times
Provide grounding pin options
Can provide operating forces of 1.2N, 2N, 3N, and 4N
KMR4 series
KSD-KMR4 series features and characteristics
Silicone contact
2.5 mm high
Maximum service life of 300000 times
Provide grounding pin options
Can provide operating forces of 1.2N, 2N, 3N, and 4N
KMR8 series
KSD-KMR8 series features and characteristics
Plastic contact
1.9 mm high
Maximum service life of 200000 times
Provide grounding pin options
Can provide operating forces of 1.2N, 2N, and 3N
