产品图纸（PDF）：KSD-PTS645 SMT G series 下载
KSD-PTS645 SMT G series 技术特性KSD-PTS645系列 6.0MM 轻触开关功能：瞬时动作联系方式：SPST端子：PC引脚机械预期寿命：100000次手术。电气触点额定值：50 mA@12 V DC。介电强度：最小250 V AC。接触电阻：初始最大100 mΩ。绝缘电阻：最小1011Ω。环境的工作温度：-40˚C至85˚C储存温度：-40˚C至85˚C流程焊接：预热至100˚C最多45秒。保持焊剂齐平PCB顶面；不适用于PCB的元件侧以及终端所在的区域。焊接至255˚C，持续5秒。最多通过刷涂焊料表面进行清洁。不要用清洁剂清洁开关溶剂。包装散装包装SMT类型的胶带和卷轴：4.3和5.0毫米高度的1000个卷轴700个7.0毫米高的卷轴700个7.3毫米高的卷轴9.5毫米高的500个卷轴13.0毫米高的400个卷轴注：•上述规格适用于带标准选项的轻触开关。供参考关于特定和定制的开关，请咨询客户服务中心。•KSD-PTS系列未经汽车应用认证，也没有KSD-PPAP。然而，在某些汽车配件和特定应用的情况下KSD-PTS广泛应用于2轮和3轮车辆，非常适合。请联系您当地的科斯达开关厂代表将讨论您的应用程序和最佳交换机解决方案。

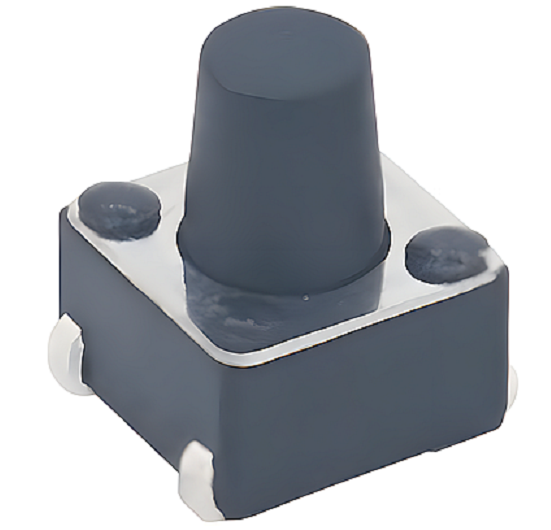

科斯达开关 KSD-PTS645 SMT G series 轻触开关系列是 6mm小型轻触开关, 旨在为消费类产品、安全及安防产品、家用电器、远程控制器和计算设备应用提供所需的持久和响应的开关。KSD-PTS645 开关体积小巧 (6.0x6.0mm), 提供多种触头长度, 并可选择操作力, 可根据您的产品需求定制开关。KSD-PTS645 SMT G series Technical characteristicsKSD-PTS645 series 6.0MM tactile switchFunction: Instantaneous actionContact information: SPST, unknown.Terminal: PC pinMechanicsLife expectancy: 100000 surgeries.electricalContact rating: 50 mA@12 V DC.Dielectric strength: minimum 250 V AC.Contact resistance: initial maximum 100 m Ω.Insulation resistance: minimum 1011 Ω.The environmentWorking temperature: -40 ° C to 85 ° CStorage temperature: -40 ° C to 85 ° Ctechnological processWelding: Preheat to 100 ° C for a maximum of 45 seconds. Keep the solder flux levelPCB top surface; Not applicable to the component side of PCBAnd the area where the terminal is located. Weld to 255 ° C for 5 seconds.Cleaning can be done by brushing the solder surface at most. Do not use cleaning agents to clean the switchSolvent.packingBulk packing SMT type tapes and reels:1000 scrolls at heights of 4.3 and 5.0 millimeters700 scrolls measuring 7.0 millimeters in height700 scrolls measuring 7.3 millimeters in height500 scrolls 9.5 millimeters high400 scrolls with a height of 13.0 millimetersNote:The above specifications are applicable to touch switches with standard options. For reference on specific and customized switches, please consult the customer service center.The KSD-PTS series has not been certified for automotive applications and does not have KSD-PPAP. However, in certain automotive parts and specific applications, KSD-PTS is widely used in 2-wheel and 3-wheel vehicles and is very suitable. Please contact your local Kosda switch factory representative to discuss your application and the best switch solution.The KSD-PTS645 SMT G series tactile switch series from Costa Switch Factory is a 6mm small tactile switch designed to provide durable and responsive switches for consumer products, safety and security products, household appliances, remote controllers, and computing device applications. The KSD-PTS645 switch is compact in size (6.0x6.0mm), offering multiple contact lengths and selectable operating force. The switch can be customized according to your product requirements.
