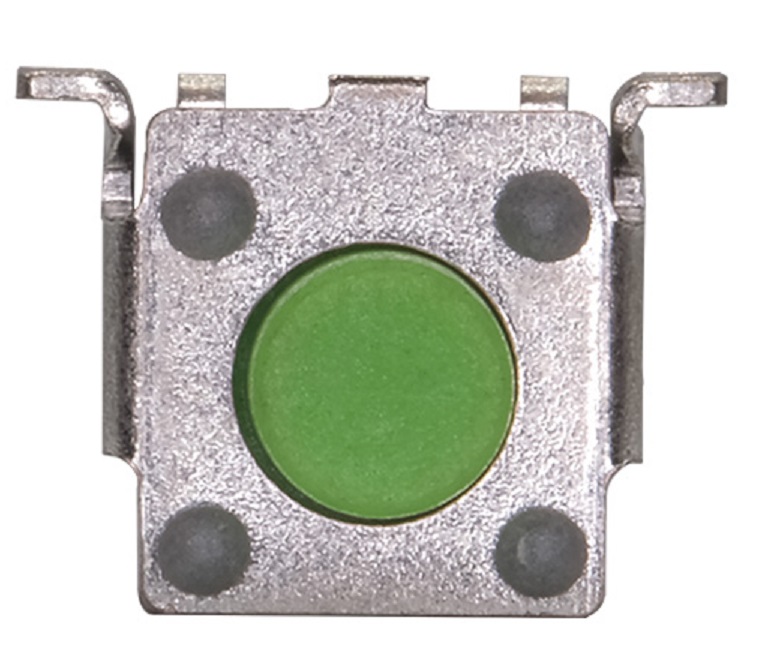

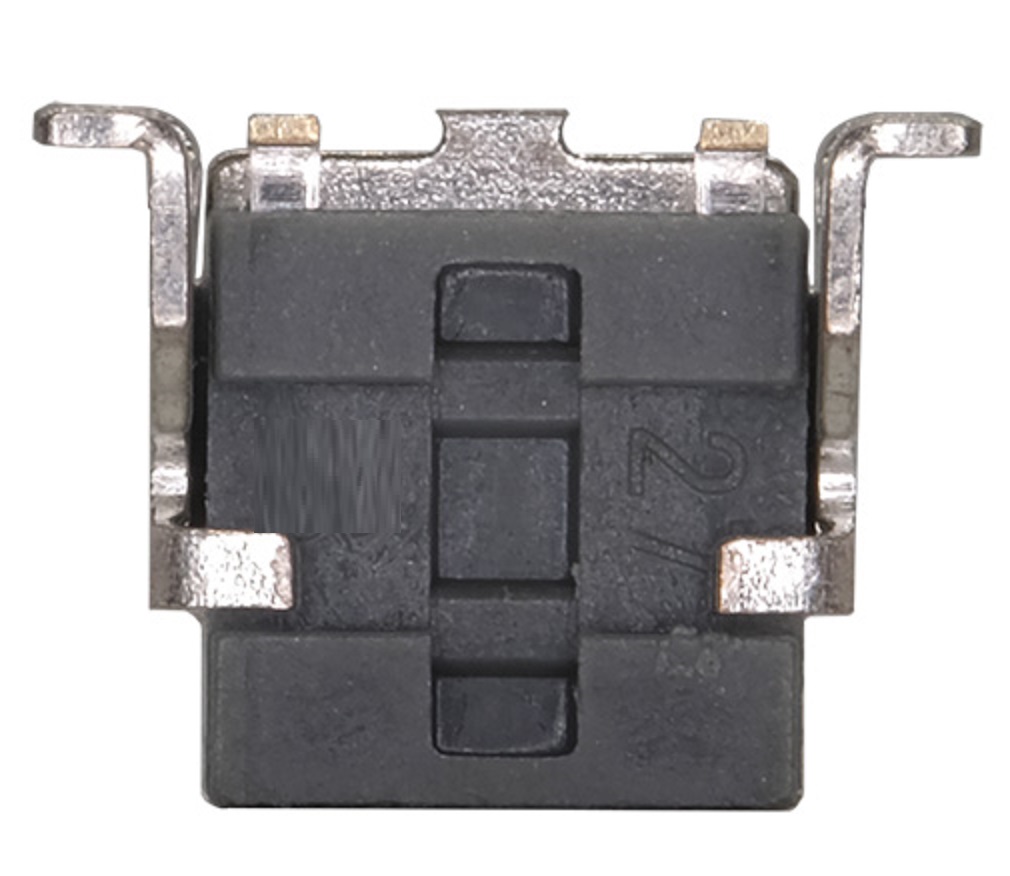

KSD-PTS-645V series 技术特性
IP67 级防水的 KSD-PTS645V 轻触开关系列产品 标准规范
最大电压：12伏直流
最大电流：50mA
介电强度：100 V AC（1毫米）
接触电阻：≤100 mΩ
绝缘电阻：≥100 MΩ
弹跳时间：≤10ms
规范
功能：瞬时动作
接触布置：1接触=SPST，N.O。
端子：用于SMT的G型
行程：0.25毫米+0.2/-0.1毫米
使用寿命：100000次循环
环境的
工作温度：-40˚C至85˚C
储存温度：-40˚C至85˚C
流程
焊接：该组件适用于以下方法：
红外回流焊符合IEC61760-1
建议焊膏厚度≥15µm
包装
每卷650件
卷筒尺寸符合EIA 481B
外径330毫米
注：
•上述规格适用于带标准选项的开关。供参考关于特定和定制的开关，请咨询客户服务中心。
•PTS系列未经汽车应用认证，也没有PPAP。然而，在某些汽车配件和特定应用的情况下PTS广泛应用于2轮和3轮车辆，非常适合。请联系科斯达开关厂K代表将讨论您的应用程序和最佳交换机解决方案。
科斯达开关厂KSD-PTS-645V 侧贴轻触开关系列非常适合需要坚固耐用的瞬间动作开关的消费电子产品和工业应用。KSD-PTS645V SMT 开关还提供不同的产品高度 (1.3mm, 1.9mm) 和操作力 (100gf, 160gf, 260gf, 320gf)。
如今需要防水组件以保证产品使用寿命的应用越来越多。KSD-PTS645V 轻触开关无需牺牲性能即能满足这一要求。
科斯达开关厂的 KSD-PTS645V SMT 轻触开关非常适合各种市场的各类应用。从电动工具、仪器仪表应用、高端消费和通信与网络应用, 到家庭安防、工厂自动化系统, 这款 IP67 轻触开关的用途广泛, 并且可以根据您的需求进行量身定制。
领先的高质量机电开关制造商 &科斯达开关厂扩展其 KSD-PTS645V SMT 系列防水轻触开关, 新增 IP67 密封版本。通过为 KSD-PTS645V 系列添加防水版本, 让您拥有可以在户外条件下运行的高性能开关。
KSD-PTS-645V series Technical characteristics
Standard specification for KSD-PTS645V tactile switch series products with IP67 waterproof rating
Maximum voltage: 12V DC
Maximum current: 50mA
Dielectric strength: 100 V AC (1 mm)
Contact resistance: ≤ 100 m Ω
Insulation resistance: ≥ 100 M Ω
Bounce time: ≤ 10ms
standard
Function: Instantaneous action
Contact arrangement: 1 contact=SPST, N.O.
Terminal: G-type for SMT
Journey: 0.25 millimeters+0.2/-0.1 millimeters
Service life: 100000 cycles
The environment
Working temperature: -40 ° C to 85 ° C
Storage temperature: -40 ° C to 85 ° C
technological process
Welding: This component is suitable for the following methods:
Infrared reflow soldering complies with IEC61760-1
Suggested solder paste thickness ≥ 15 µ m
packing
650 pieces per roll
The drum size complies with EIA 481B
Outer diameter 330 millimeters
Note:
The above specifications are applicable to switches with standard options. For reference on specific and customized switches, please consult the customer service center.
The PTS series has not been certified for automotive applications and does not have PPAP. However, in certain automotive parts and specific applications, PTS is widely used in 2-wheel and 3-wheel vehicles and is very suitable. Please contact K representative from Costa Switch Factory to discuss your application and the best switch solution.
The KSD-PTS-645V side mounted tactile switch series from Costa Switch Factory is highly suitable for consumer electronics and industrial applications that require sturdy and durable momentary action switches. The KSD-PTS645V SMT switch also offers different product heights (1.3mm, 1.9mm) and operating forces (100gf, 160gf, 260gf, 320gf).
Nowadays, there are more and more applications that require waterproof components to ensure the service life of products. The KSD-PTS645V tactile switch can meet this requirement without sacrificing performance.
The KSD-PTS645V SMT tactile switch from Costa Switch Factory is very suitable for various markets and applications. From power tools, instrumentation applications, high-end consumer and communication and network applications, to home security and factory automation systems, this IP67 touch switch has a wide range of uses and can be customized according to your needs.
Leading high-quality electromechanical switch manufacturer&Costa Switch Factory expands its KSD-PTS645V SMT series waterproof tactile switch, adding an IP67 sealed version. By adding a waterproof version to the KSD-PTS645V series, you have a high-performance switch that can operate under outdoor conditions.
