KSD-RKC2 series 技术特性

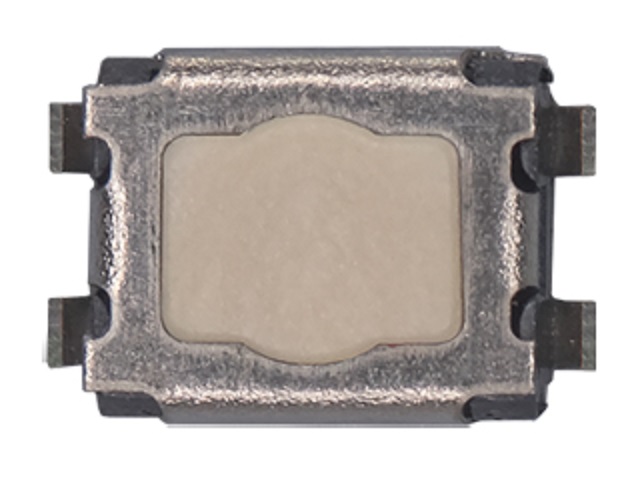

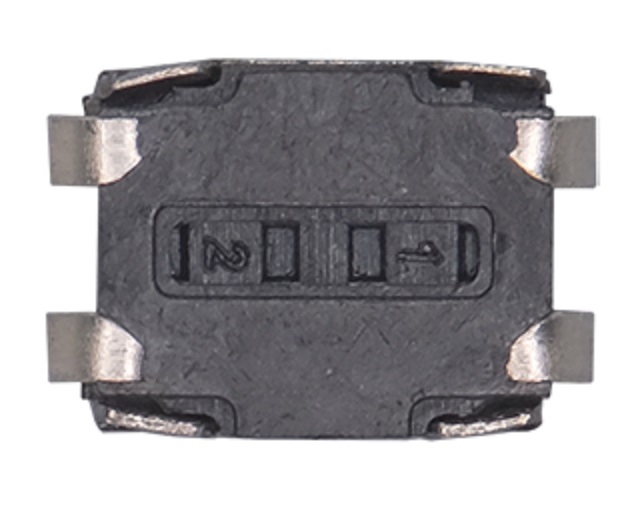

3.5 X 2.7MM 贴片SMT 顶部操作轻触开关
最大电压12 VDC
最大直流电流20mA
接触电阻100 mΩ
最小绝缘电阻为100 mΩ。
绝缘强度250 VA C（1分钟）
反弹时间≤10ms
工作温度-40˚C至85˚C
功能瞬时动作
触点布置1：接触=SPST N.O。
端子SMT端接
行程0.15±0.1毫米
焊接
该组件适用于以下方法：红外回流焊接符合
符合IEC61760-1标准
每卷包装4000件
科斯达开关厂KSD-RKC2 series 小型SMT 顶部操作轻触开关, 具有不同的操作力选择和高达 200k 次使用寿命。KSD-RKC2 迷你型轻触开关非常适合在有限的 PCB 空间中需要高密度组件的应用, 例如车钥匙、高端消费类以及健康和医疗设备。
KSD-RKC2 series Technical characteristics
3.5 X 2.7MM SMT SMT top operation touch switch
Maximum voltage 12 VDC
Maximum DC current 20mA
Contact resistance 100 m Ω
The minimum insulation resistance is 100 m Ω.
Insulation strength 250 VA C (1 minute)
Rebound time ≤ 10ms
Working temperature -40 ° C to 85 ° C
Instantaneous action of function
Contact arrangement 1: Contact=SPST N.O.
Terminal SMT End Connection
Travel distance 0.15 ± 0.1 millimeters
welding
This component is suitable for the following methods: infrared reflow soldering conforms to
Compliant with IEC61760-1 standard
Packaging 4000 pieces per roll
The KSD-RKC2 series small SMT top operated tactile switch from Costa Switch Factory has different operating force options and a lifespan of up to 200k cycles. The KSD-RKC2 mini touch switch is highly suitable for applications that require high-density components in limited PCB space, such as car keys, high-end consumer goods, and health and medical equipment.
Current Rating:DC 12V 20 mA max.
Circuit:SPST-NO
Mounting Type:Surface Mount
Sealing:Unsealed
Illumination:No/None
Switch Function:Off-Mom
Electrical Life Cycles:100,000
Actuator Type:Hard
Actuator Height off PCB, from Pins:1.7mm
Actuator Orientation:Top Actuated
Termination Style:J Lead
Footprint:3.5 x 2.7mm
Illumination Voltage (Nominal):
Illumination Type, Color:
Operating Force:500gf
Additional Features:
Packaging:Tape & Reel
