KSD-PTS850 series 技术特性
5.4 × 5.0 侧面操作SMT轻触开关侧贴
最大电压：12伏直流电
最大直流电流：50 mA
接触电阻：500 mΩ
绝缘电阻：最小100 MΩ
功能：瞬时动作
联系方式：1联系=SPST N.O。
端子：SMT端子
行程：0.2毫米±0.1毫米
寿命：50000次循环
环境的
工作温度：-40˚C至85˚C
储存温度：-30˚C至85˚C
流程
焊接：该组件适用于以下方法：
红外回流焊符合IEC61760-1
包装每卷2000件
注：
KSD-PTS系列未经汽车应用认证，也没有KSD-PPAP。
然而，在某些汽车配件和特定应用的情况下KSD-PTS广泛应用于2轮和3轮车辆，非常适合。请联系
科斯达开关厂代表将讨论您的应用程序和最佳交换机解决方案。
类型驱动力（gf）阀杆颜色备注
PTS850VM18PSMTR LFS 180+80/-40黑色带凸台
PTS850VR18PSMTR LFS 350±80自然带凸台
PTS850VM18SMTR LFS 180+80/-40黑色无凸台
PTS850VR18SMTR LFS 350±80自然无凸台
科斯达开关厂KSD-PTS850 series 系列是超薄小巧的侧面操作轻触开关, 尺寸仅为 5.4 x 5.0 mm, 轻触开关产品在 PCB 上的高度也只有 1.8 mm。
KSD-PTS850 具有超薄设计和小尺寸, 可为设计人员提供灵活性, 选择空出其设计中的空间来增加附加功能, 或缩小 PCB 的整体尺寸。KSD-PTS850 轻触开关系列可提供 180 gf 和 350 gf 的操作力, 带或不带凸台, 这都是市场上最常用的版本。高质量, 小巧的 KSD-PTS850 轻触开关是高端消费类可穿戴和医疗设备市场的完美解决方案。
KSD-PTS850 series Technical characteristics
5.4 × 5.0 Side Operation SMT Touch Switch Side Paste
Maximum voltage: 12V DC
Maximum DC current: 50 mA
Contact resistance: 500 m Ω
Insulation resistance: minimum 100 M Ω
Function: Instantaneous action
Contact information: 1. Contact=SPST N.O.
Terminal: SMT terminal
Travel distance: 0.2 millimeters ± 0.1 millimeters
Lifespan: 50000 cycles
The environment
Working temperature: -40 ° C to 85 ° C
Storage temperature: -30 ° C to 85 ° C
technological process
Welding: This component is suitable for the following methods:
Infrared reflow soldering complies with IEC61760-1
Packaging 2000 pieces per roll
Note:
The KSD-PTS series has not been certified for automotive applications and does not have KSD-PPAP.
However, in certain automotive parts and specific applications, KSD-PTS is widely used in 2-wheel and 3-wheel vehicles and is very suitable. Please contact
Representatives from Costa Switch Factory will discuss your application and the best switch solution.
Type of driving force (gf) Valve stem color Remarks

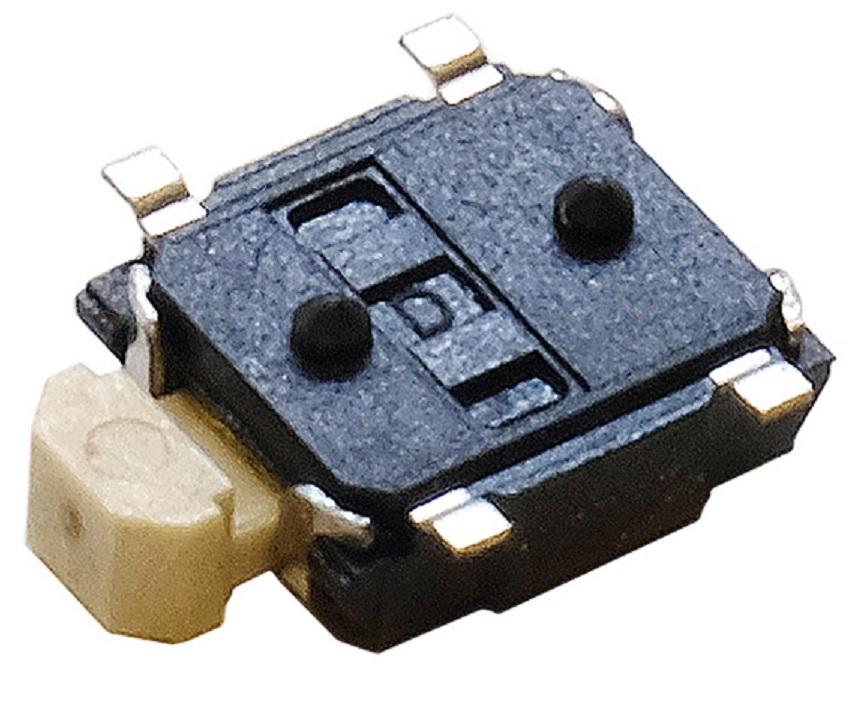

PTS850VM18PSMTR LFS 180+80/-40 black with raised platform

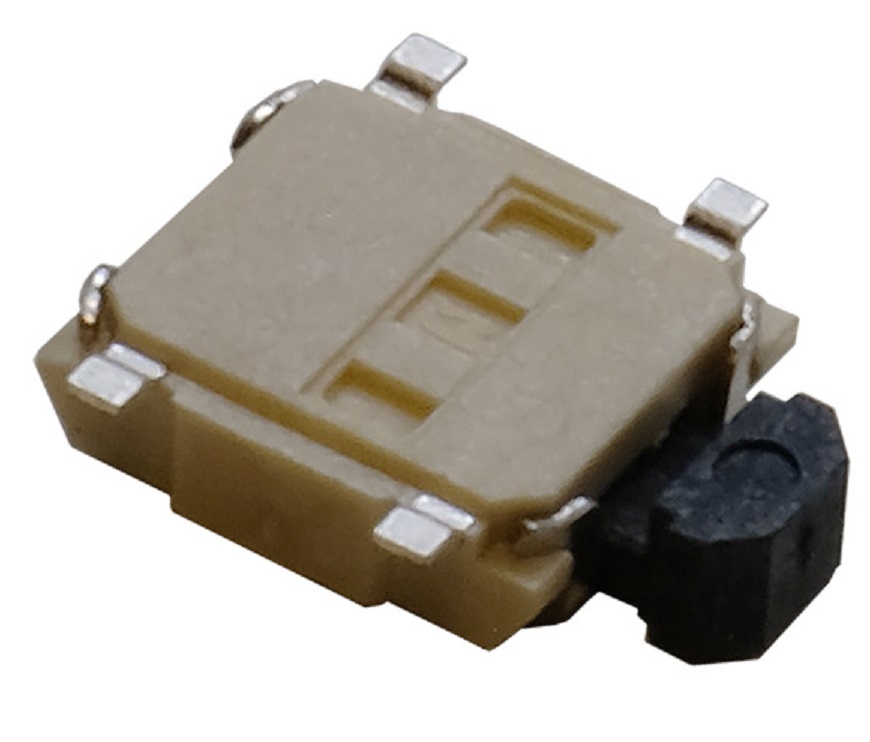

PTS850VR18PSMTR LFS 350 ± 80 natural with convex platform
PTS850VM18SMTR LFS 180+80/-40 black no convex platform
PTS850VR18SMTR LFS 350 ± 80 naturally without protrusions
The KSD-PTS850 series from Costa Switch Factory is an ultra-thin and compact side operated tactile switch with a size of only 5.4 x 5.0 mm, and the height of the tactile switch product on the PCB is only 1.8 mm.
The KSD-PTS850 features an ultra-thin design and small size, providing designers with flexibility to choose to free up space in their design to add additional features or reduce the overall size of the PCB. The KSD-PTS850 tactile switch series provides operating forces of 180 gf and 350 gf, with or without a boss, which are the most commonly used versions on the market. The high-quality and compact KSD-PTS850 tactile switch is the perfect solution for the high-end consumer wearable and medical device market.
