KSD-PTS847 series 技术特性
4.6 X 2.2 MM SMT 侧面操作沉板轻触开关
功能：瞬时动作
联系方式：1联系=SPST N.O。
端子：SMT端子
行程：0.15毫米
寿命：200000次循环
电气
最大电压：15v dc
最大直流电流：20mA
接触电阻：100 mΩ
绝缘电阻：最小100 MΩ。
介质电压：交流250V
环境的
工作温度：-40˚C至85˚C
储存温度：-40˚C至85˚C
流程
焊接：该组件适用于以下方法：
红外回流焊符合IEC61760-1
包装
每卷2500件
注：
KSD-PTS系列未经汽车应用认证，也没有KSD-PPAP。
然而，在某些汽车配件和特定应用的情况下KSD-PTS广泛应用于2轮和3轮车辆，非常适合。请联系
科斯达开关厂代表将讨论您的应用程序和最佳交换机解决方案。
科斯达开关厂KSD-PTS847 series 系列是紧凑型沉板轻触开关, 专为高端消费类和医疗设备而设计。对于有限 PCB 空间的设计, 需要用上更小巧, 更可靠的轻触开关。KSD-PTS847 沉板轻触开关是 科斯达开关厂轻触产品组合的重要补充。开关非常适合运动手表、助听器以及最新的 IoT 便携式设备等应用。
KSD-PTS847 series Technical characteristics

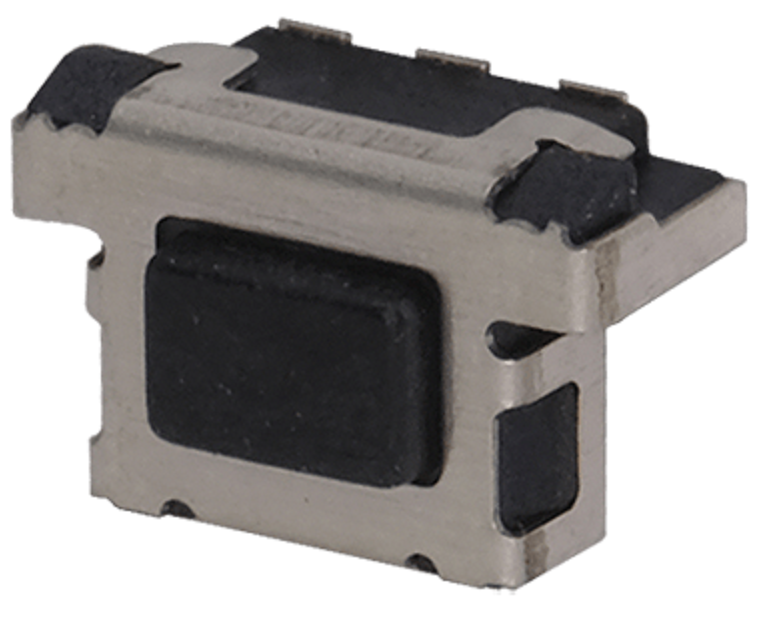

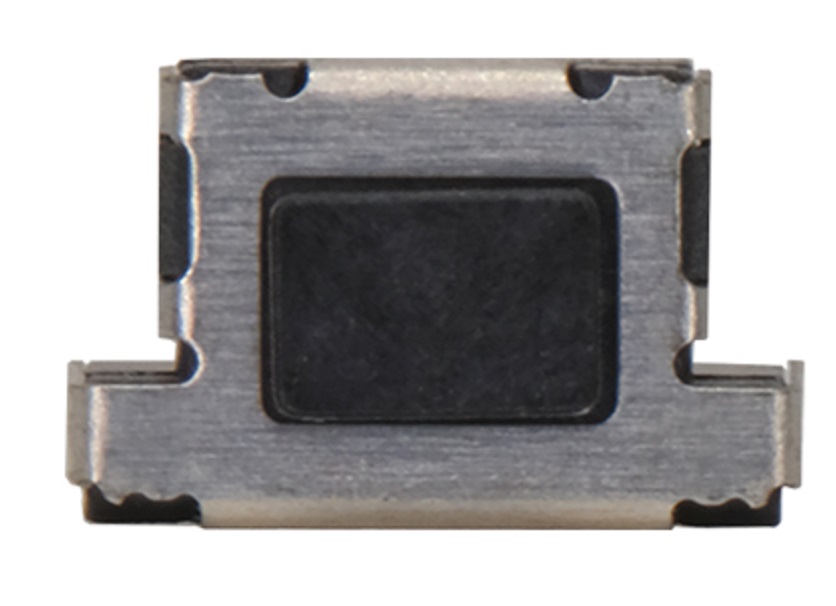

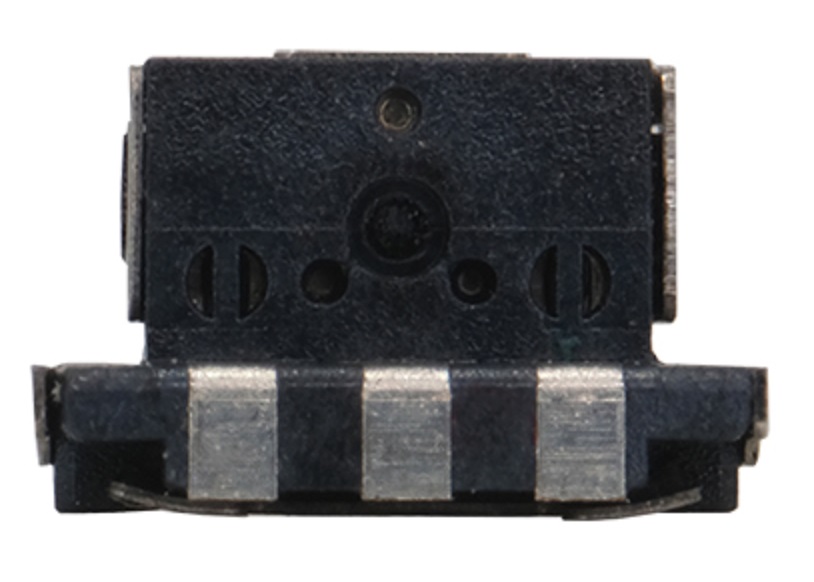

4.6 X 2.2 MM SMT Side Operation Sink Light Touch Switch
Function: Instantaneous action
Contact information: 1. Contact=SPST N.O.
Terminal: SMT terminal
Travel distance: 0.15 millimeters
Lifespan: 200000 cycles
electrical
Maximum voltage: 15V DC
Maximum DC current: 20mA
Contact resistance: 100 m Ω
Insulation resistance: minimum 100 M Ω.
Dielectric voltage: AC 250V
The environment
Working temperature: -40 ° C to 85 ° C
Storage temperature: -40 ° C to 85 ° C
technological process
Welding: This component is suitable for the following methods:
Infrared reflow soldering complies with IEC61760-1
packing
2500 pieces per roll
Note:
The KSD-PTS series has not been certified for automotive applications and does not have KSD-PPAP.
However, in certain automotive parts and specific applications, KSD-PTS is widely used in 2-wheel and 3-wheel vehicles and is very suitable. Please contact
Representatives from Costa Switch Factory will discuss your application and the best switch solution.
The KSD-PTS847 series from Costa Switch Factory is a compact sinking plate touch switch designed specifically for high-end consumer and medical equipment. For designs with limited PCB space, smaller and more reliable tactile switches are needed. The KSD-PTS847 sinking plate tactile switch is an important supplement to the Costa Switch Factory's tactile product portfolio. Switches are highly suitable for applications such as sports watches, hearing aids, and the latest IoT portable devices.
