KSD-CB-0414-11

KSD-CB-0414-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

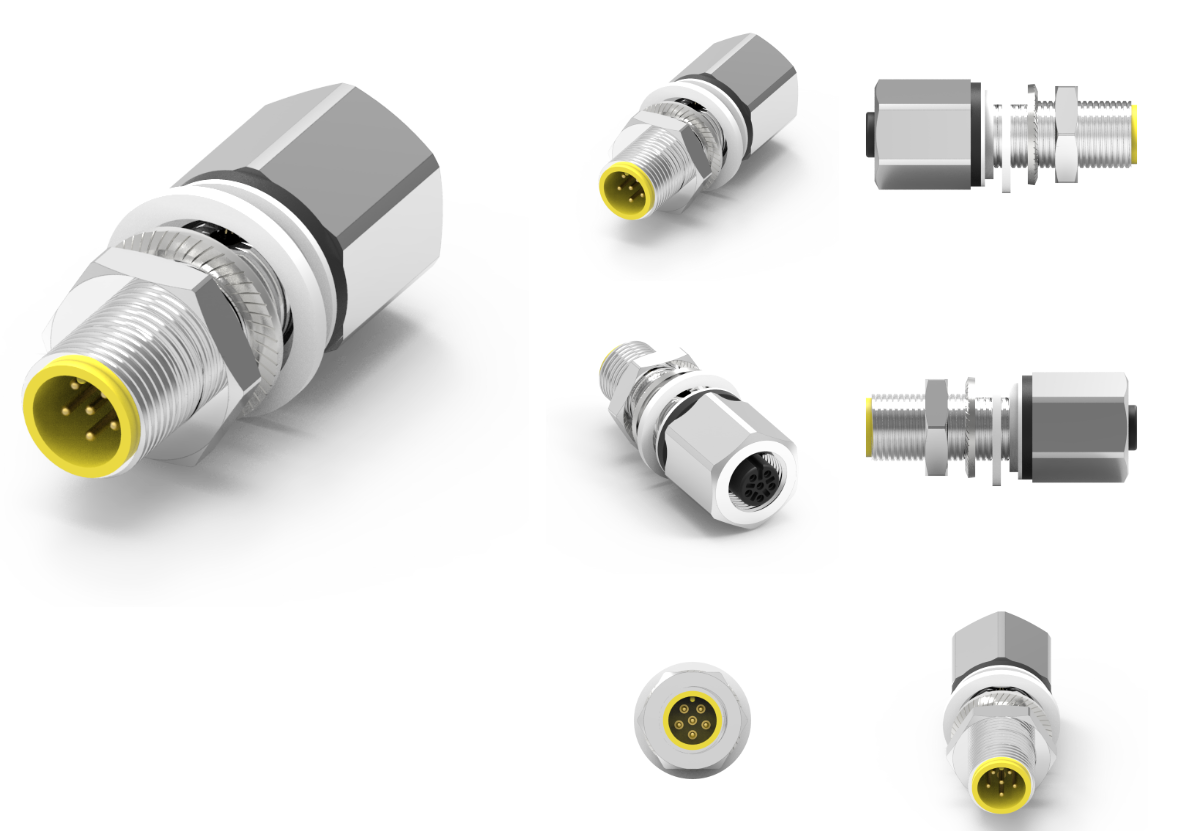

品名：M12 转接头防水连接器
1.材料：
1-1. 外壳：（F）PA66颜色：黑色；（M） PBT颜色：黄色
1-2.触点：黄铜
1-3.外壳：黄铜
1-4. 螺母：黄铜
1-5. 隔离器：POM
1-6.O型圈：硅胶；颜色：黑色。
1-7. 垫圈：中碳钢
2.完成：
2-1.触点：整体镀金
2-2.外壳：镀镍
2-3. 螺母：镀镍
2-4.垫圈：防锈处理
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：60V
3-3.防水等级：IP68
4.环境：
4-1.工作温度：-40℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞


M12 转接头防水连接器
M12 转接头防水连接器 是一种用于连接和转换 M12 连接器的设备，广泛应用于工业自动化、传感器技术、机器人、交通系统等领域。它的主要特点是提供防水和防尘的保障，确保在恶劣环境中连接的可靠性和稳定性。

主要特点
1.防水防尘设计：
高防护等级：通常具备 IP67 或更高的防护等级，有效防止水和尘土的渗入，适合工业和户外环境。
密封性能：采用密封圈和其他保护材料，确保在各种气候条件下的安全连接。

2.丰富的连接选项：
多样化接口：可将 M12 公头连接到不同类型的插座（母头）或其他类型的连接器，灵活适应不同的连接需求。
不同的引脚配置：提供多针脚选项（例如 3 针、4 针、5 针、8 针），可根据具体的电气需求进行选择。

3.耐用和可靠：
优质材料：制造材料通常为工业标准的塑料或金属，能耐高温、抗腐蚀，适应苛刻的使用环境。
抗震动设计：具备良好的机械强度，能够承受机械冲击和振动，确保连接稳定。

4.紧凑且易于安装：
小巧设计：占用空间小，易于在有限空间内进行安装。
便捷的连接方式：采用插拔式设计，简化了安装和维护流程，节省人力和时间成本。

5.广泛兼容性：
多领域应用：适用于传感器、执行器、工业设备和其他自动化装置的互连，具有极高的适应性。
标准化接口：符合国际连接器标准，方便与多种设备进行结合。

应用领域
1.工业自动化：连接控制器、传感器和 PLC，确保系统的稳定性和可靠性。

2.机器人技术：用于各种机器人系统之间的电气连接。

3.智能家居：与各类智能设备和传感器连接，保证设备的运行稳定。

4.通信与交通：在铁路、公交和其他交通设备中，实现快速和可靠的连接。

5.医疗设备：在医疗仪器中用于确保安全电气连接及数据传输。

使用注意事项
1.安装注意事项：
确保转接头的密封结构完好无损，以保持防水性能。
在连接过程中避免过大力气，以免损坏连接器。

2.电气负载：
注意各连接器的额定电压和电流，防止连接过载。
定期检查和维护以避免接触不良。

3.维护保养：
定期清洁连接器，不使用腐蚀性清洁剂。
确保没有灰尘或杂质损伤到密封性能。

4.检测和替换：
定期检查转接头的性能，如果发现磨损或老化，及时替换以避免故障。

总结
M12 转接头防水连接器 为各种设备之间提供了灵活而可靠的连接解决方案。它不仅具有优良的防水性能和机械强度，还在工业和自动化领域中得到广泛应用。如果您对 M12 转接头防水连接器有更多问题或需要进一步的信息，欢迎联系技术员！



Product Name: M12 Adapter Waterproof Connector
1. Materials:
1-1.  Shell: (F) PA66 Color: Black; (M) PBT color: yellow
1-2. Contact: Brass
1-3. Shell: Brass
1-4.  Nut: Brass
1-5.  Isolator: POM
1-6. O-ring: Silicone; Color: Black.
1-7.  Gasket: Medium carbon steel
2. Complete:
2-1. Contact: Whole gold plating
2-2. Shell: Nickel plated
2-3.  Nut: Nickel plated
2-4. Gasket: Rust prevention treatment
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IP68
4. Environment:
4-1. Working temperature:- 40℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M12 adapter waterproof connector
M12 adapter waterproof connector is a device used for connecting and converting M12 connectors, widely used in industrial automation, sensor technology, robotics, transportation systems and other fields. Its main feature is to provide waterproof and dustproof protection, ensuring the reliability and stability of the connection in harsh environments.

main features
1. Waterproof and dustproof design:
High protection level: usually with an IP67 or higher protection level, effectively preventing the infiltration of water and dust, suitable for industrial and outdoor environments.
Sealing performance: Using sealing rings and other protective materials to ensure safe connection under various weather conditions.

2. Rich connection options:
Diversified interfaces: M12 male connectors can be connected to different types of sockets (female connectors) or other types of connectors, flexibly adapting to different connection requirements.
Different pin configurations: Provides multi pin options (such as 3-pin, 4-pin, 5-pin, 8-pin), which can be selected according to specific electrical requirements.

3. Durable and reliable:
High quality materials: The manufacturing materials are usually industrial standard plastics or metals, which can withstand high temperatures, resist corrosion, and adapt to harsh usage environments.
Anti vibration design: With good mechanical strength, it can withstand mechanical impact and vibration, ensuring stable connection.

4. Compact and easy to install:
Compact design: takes up little space and is easy to install in limited spaces.
Convenient connection method: adopting a plug-in design, simplifying the installation and maintenance process, saving manpower and time costs.

5. Wide compatibility:
Multi domain applications: suitable for interconnection of sensors, actuators, industrial equipment, and other automation devices, with extremely high adaptability.
Standardized interface: Complies with international connector standards, facilitating integration with various devices.

application area
1. Industrial automation: Connect controllers, sensors, and PLCs to ensure system stability and reliability.

2. Robotics technology: used for electrical connections between various robot systems.

3. Smart Home: Connected with various smart devices and sensors to ensure stable operation of the devices.

4. Communication and Transportation: Achieve fast and reliable connections in railways, buses, and other transportation equipment.

5. Medical equipment: Used in medical devices to ensure safe electrical connections and data transmission.

Precautions for use
1. Installation precautions:
Ensure that the sealing structure of the adapter is intact and undamaged to maintain its waterproof performance.
Avoid excessive force during the connection process to prevent damage to the connector.

2. Electrical load:
Pay attention to the rated voltage and current of each connector to prevent connection overload.
Regularly inspect and maintain to avoid poor contact.

3. Maintenance and upkeep:
Regularly clean the connector without using corrosive cleaning agents.
Ensure that no dust or impurities damage the sealing performance.

4. Detection and replacement:
Regularly check the performance of the adapter, and if wear or aging is found, replace it promptly to avoid malfunctions.

summary
The M12 adapter waterproof connector provides a flexible and reliable connection solution between various devices. It not only has excellent waterproof performance and mechanical strength, but also has been widely used in the fields of industry and automation. If you have any further questions or need further information about the M12 adapter waterproof connector, please feel free to contact the technician!
