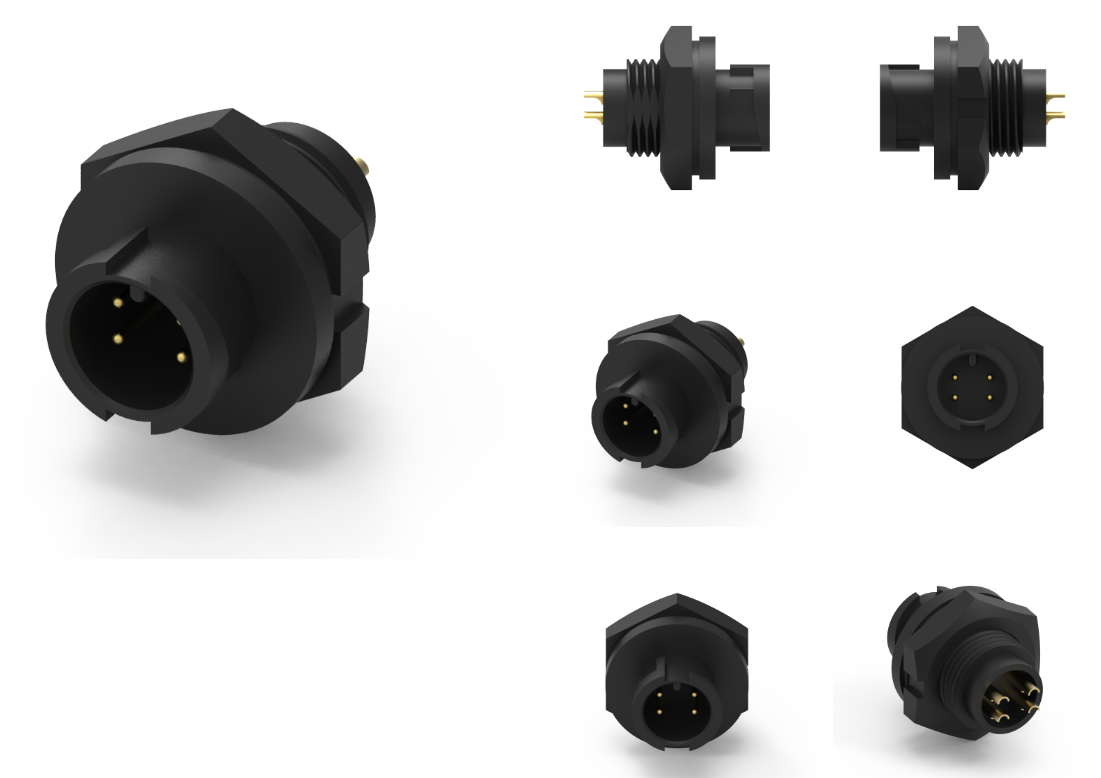

品名：A Size (公身公针) 后锁焊线式防水连接器(快锁式)
1.材料
1-1.外壳：PA66
1-2.触点：黄铜
1-3.垫片：硅胶
1-4. 六角螺母：PA66
2.完成：
2-1.触点：镀金
3.电气规格：
3-1.额定电流：5A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞
A Size (公身公针) 后锁焊线式防水连接器（快锁式）是一种专为快速方便连接而设计的连接器，广泛应用于需要可靠防水性能和自动锁定功能的电气连接。以下是该连接器的一些详细信息和技术特点：
1. 产品特点
a. 快锁设计
便捷性：快锁机制使得连接与断开更加高效，用户只需简单操作即可完成连接，无需额外工具。
快速组装：适用于生产线或现场维护时的快速连接，提升工作效率。
b. 防水性能
密封设计：采用专用的密封圈设计，确保连接器在潮湿或恶劣环境中拥有良好的防水性能，通常具有IP67或更高的防护等级。
防尘能力：同时可以有效地防止灰尘和其他杂质的侵入，保护内部电路。
c. 材质与耐用性能
优质材料：连接器通常使用耐温、耐腐蚀的工程塑料，增强其在多种环境下的耐用性。
焊线工艺：后锁焊线式设计，使得连接更加牢固，减少因振动或拉扯引起的接触不良。
d. 兼容性
公身公针设计：能与相应的母头连接器配合，通常用于多种电气设备的连接。
2. 应用领域
汽车电子：在准备车载电子设备、电控单元（ECU）等方面使用，确保连接的安全性与稳定性。
工业自动化：广泛应用于工业设备、传感器、控制系统中，具有良好的防护性能。
户外设备：如LED照明、监控摄像机等，在户外环境中提供可靠的电气连接。
电力和能源：用于各种电力设备的连接，满足高防护要求。
3. 使用注意事项
确保连接牢固：在安装连接器时，确保其完全锁定，避免松动。
检查密封性：定期检查密封圈或密封件的状态，确保没有老化或损坏，维持防水性能。
清洁接触面：在焊接或连接前，确保连接器的接触面干净，以保证良好的电气接触。
遵循安装指南：根据制造商的说明进行安装和使用，确保正确的操作方法。
4. 总结
A Size (公身公针) 后锁焊线式防水连接器（快锁式）因其高效性和可靠的防水性能，成为许多行业应用中的优选方案。它不仅能够确保良好的电气连接，还能在恶劣环境下保护设备的运行。如果您有关于该连接器的具体需求或技术问题，欢迎联系技术员！
Product Name: A Size (Male Body Male Pin) Rear Lock Solder Wire Waterproof Connector (Quick Lock Type)
1. Materials
1-1. Shell: PA66
1-2. Contact: Brass
1-3. Gasket: Silicone
1-4. Hexagon nut: PA66
2. Complete:
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 5A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
A Size (male body male pin) rear lock welding wire waterproof connector (quick lock type) is a connector designed for quick and convenient connection, widely used in electrical connections that require reliable waterproof performance and automatic locking function. Here are some detailed information and technical features of the connector:
1. Product features
a. Quick lock design
Convenience: The quick lock mechanism makes connection and disconnection more efficient, and users only need simple operations to complete the connection without the need for additional tools.
Quick assembly: suitable for quick connection during production line or on-site maintenance, improving work efficiency.
b. Waterproof performance
Sealing design: Adopting a dedicated sealing ring design to ensure that the connector has good waterproof performance in humid or harsh environments, usually with a protection level of IP67 or higher.
Dustproof ability: It can effectively prevent the intrusion of dust and other impurities, protecting the internal circuit.
c. Material and durability performance
High quality materials: Connectors typically use heat-resistant and corrosion-resistant engineering plastics to enhance their durability in various environments.
Wire bonding process: The rear locking wire bonding design makes the connection more secure and reduces poor contact caused by vibration or pulling.
d. Compatibility
Male body and male pin design: can be matched with corresponding female connectors, usually used for connecting various electrical equipment.
2. Application Fields
Automotive electronics: Used in the preparation of onboard electronic devices, electronic control units (ECUs), and other aspects to ensure the safety and stability of connections.
Industrial automation: widely used in industrial equipment, sensors, and control systems, with good protective performance.
Outdoor equipment, such as LED lighting, surveillance cameras, etc., provide reliable electrical connections in outdoor environments.
Electricity and energy: used for connecting various electrical equipment to meet high protection requirements.
3. Precautions for use
Ensure secure connection: When installing the connector, make sure it is fully locked to avoid loosening.
Check sealing: Regularly inspect the condition of sealing rings or components to ensure they are not aging or damaged, and maintain waterproof performance.
Clean contact surface: Before welding or connecting, ensure that the contact surface of the connector is clean to ensure good electrical contact.
Follow the installation guide: Install and use according to the manufacturer's instructions to ensure correct operation methods.
4. Summary
A Size (male body and male pin) rear lock welding wire waterproof connector (quick lock type) has become the preferred solution in many industry applications due to its high efficiency and reliable waterproof performance. It not only ensures good electrical connections, but also protects the operation of equipment in harsh environments. If you have specific requirements or technical questions about this connector, please feel free to contact the technician!
