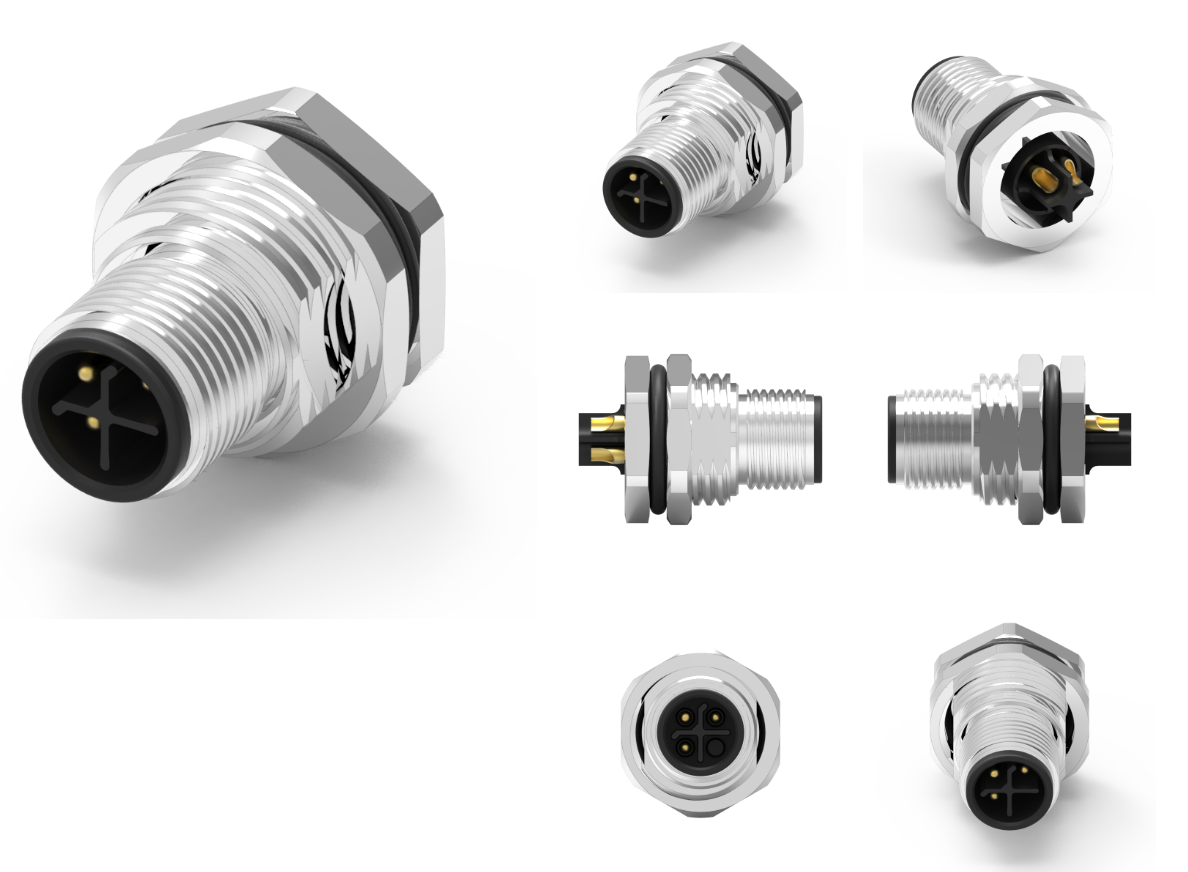

品名：M12 公头防水连接器
1.材料：
1-1.外壳：见表A UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3. 螺母：见表A
1-4. O型圈：EPDM；颜色：黑色
1-5.外壳：见表A
2.完成：
2-1.触点：见表A
底板：镍
2-2. 螺母：见表A
2-3.外壳：见表A
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：2PIN~4PIN 250V；5PIN 6OV
3-3.防水等级：IP68
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
M12 公头防水连接器
M12 公头防水连接器 是一种广泛应用于工业自动化和电子设备的连接器，因其优良的防水防尘性能而受到青睐。M12 连接器通常用于连接传感器、执行器、PLC 以及其他自动化设备，特别是在恶劣环境中。
主要特点
1.防水防尘设计：
高防护等级：通常符合 IP67 标准，能够有效防止水和灰尘进入连接器内部，适合潮湿或多尘的环境。
密封设计：配备密封圈和防护外壳，增强密封性能，确保长时间使用的可靠性。
2.耐用性：
优质材料：采用高强度的塑料和金属材料，具有耐高温和耐腐蚀的特性，确保在严酷条件下的稳定性。
抗机械应力：设计考虑到机械冲击和震动，能够提供稳固的物理连接。
3.多样的引脚配置：
针脚选项：常见的针脚数包括 3 针、4 针、5 针、8 针等，灵活满足不同设备的电气需求。
标准化接口：符合国际标准，方便与多种设备互换和集成。
4.紧凑型设计：
小巧轻便：M12 的设计相对紧凑，适用于空间有限的应用场景。
易于安装：简单的插拔式设计，方便用户快速连接和断开。
5.广泛的兼容性：
多领域应用：可用于传感器、伺服电机、机器人、PLC 和其他工业设备，适应性强。
标准化产品：便于与不同厂家和品牌的设备进行连接，降低系统集成的复杂性。
应用领域
1.工业自动化：用于自动化生产线的传感器和控制器之间的连接，保证设备的稳定运行。
2.机器人技术：广泛应用于工业和服务机器人，用于连接传感器和驱动单元。
3.交通运输：在铁路、公共交通等领域，为设备提供安全稳定的电气连接。
4.医疗设备：符合医用标准的设计，确保在医疗环境中的电气安全性。
5.智能家居：在智能硬件和传感器中提供稳定的电气连接，适应复杂环境。
使用注意事项
1.安装注意：
确保在安装时密封圈完整无损，增强防水性能。
在进行连接和断开时，避免剧烈拉扯或扭动。
2.电气负载：
遵循制造商的电气参数，确保电压和电流在允许范围内。
定期检查连接器，确保无接触不良的问题。
3.定期维护：
定期清洁连接器表面，避免污垢和水分影响连接效果。
检查密封性能，确保没有磨损或老化。
4.避免惰性气体和化学品接触：
避免连接器接触腐蚀性材料，保护连接器的长期使用。
总结
M12 公头防水连接器 以其出色的防水性能、灵活的设计和广泛的应用适应性，在工业自动化和电子设备中发挥着重要作用。无论是在生产线还是在机器人技术中，它都能保证可靠的电气连接。如果您需要更多关于 M12 公头防水连接器的详细信息或产品建议，欢迎联系技术员！
Product Name: M12 Male Waterproof Connector
1. Materials:
1-1. Shell: Refer to Table A UL94V-0; Color: Black
1-2. Contact: Brass
1-3. Nut: see Table A
1-4. O-ring: EPDM； Color: Black
1-5. Shell: see Table A
2. Complete:
2-1. Contact: See Table A
Bottom plate: Nickel
2-2. Nut: see Table A
2-3. Shell: see Table A
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 2PIN~4PIN 250V; 5PIN 6OV
3-3. Waterproof grade: IP68
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
M12 male waterproof connector
M12 male waterproof connector is a widely used connector in industrial automation and electronic equipment, and is favored for its excellent waterproof and dustproof performance. M12 connectors are commonly used to connect sensors, actuators, PLCs, and other automation equipment, especially in harsh environments.
main features
1. Waterproof and dustproof design:
High protection level: usually compliant with IP67 standard, it can effectively prevent water and dust from entering the interior of the connector, suitable for humid or dusty environments.
Sealed design: equipped with sealing rings and protective shells to enhance sealing performance and ensure long-term reliability.
2. Durability:
High quality materials: Made of high-strength plastic and metal materials, with high temperature resistance and corrosion resistance, ensuring stability under harsh conditions.
Anti mechanical stress: The design takes into account mechanical impact and vibration, providing a stable physical connection.
3. Diverse pin configurations:
Pin options: Common pin numbers include 3, 4, 5, 8, etc., which can flexibly meet the electrical needs of different devices.
Standardized interface: Complies with international standards, facilitating interchangeability and integration with various devices.
4. Compact design:
Compact and lightweight: The design of M12 is relatively compact, suitable for applications with limited space.
Easy to install: Simple plug-in design, convenient for users to quickly connect and disconnect.
5. Wide compatibility:
Multi domain applications: can be used for sensors, servo motors, robots, PLCs, and other industrial equipment, with strong adaptability.
Standardized products: easy to connect with devices from different manufacturers and brands, reducing the complexity of system integration.
application area
1. Industrial automation: used for connecting sensors and controllers in automated production lines to ensure stable operation of equipment.
2. Robotics technology: widely used in industrial and service robots for connecting sensors and drive units.
3. Transportation: Provide safe and stable electrical connections for equipment in fields such as railways and public transportation.
4. Medical equipment: Designed in accordance with medical standards to ensure electrical safety in medical environments.
5. Smart Home: Provides stable electrical connections in smart hardware and sensors to adapt to complex environments.
Precautions for use
1. Installation precautions:
Ensure that the sealing ring is intact and undamaged during installation to enhance waterproof performance.
When connecting and disconnecting, avoid vigorous pulling or twisting.
2. Electrical load:
Follow the manufacturer's electrical parameters to ensure that the voltage and current are within the allowable range.
Regularly check the connectors to ensure there are no issues with poor contact.
3. Regular maintenance:
Regularly clean the surface of the connector to avoid dirt and moisture affecting the connection effect.
Check the sealing performance to ensure there is no wear or aging.
4. Avoid contact with inert gases and chemicals:
Avoid contact with corrosive materials to protect the connector from long-term use.
summary
The M12 male waterproof connector plays an important role in industrial automation and electronic equipment due to its excellent waterproof performance, flexible design, and wide application adaptability. Whether on the production line or in robot technology, it can ensure reliable electrical connections. If you need more detailed information or product recommendations about M12 male waterproof connectors, please feel free to contact our technicians!
