KSD-ZMT series 技术特性
标准规范
0.1RA 125/250VACμT85 1E4 3RA 24VDCμT85 5e4；3RA 125/250VACμT85 1E4 3RA 24VDCμT85 5e4；5RA 125/250VACμT85 1E4 3RA 24VDCμT85 1 e4
电气寿命：10000@5A
绝缘电阻：最小100 MΩ。
绝缘强度：带电部件之间最小500VAC（50-60HZ）/分钟；带电部件和非带电金属部件之间的最小1500VAC（50-60HZ）/分钟
工作温度：-40ºC至85ºC
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA
科斯达开关厂的KSD-ZMT series系列密封微动开关通常用于需要通过防水微动开关进行检测机制的汽车内部应用。科斯达开关厂非常适用于 PCB 检测开关、通信设备和各种类型的测试设备。KSD-ZMT 系列密封开关具有紧凑的尺寸和 IP67 密封等级（空间有限时的理想选择）, 为应用提供较长的电气和机械寿命, 确保它们经得起重复使用。
KSD-ZMT series technical features
standard specification
0.1RA 125/250VACμT85 1E4 3RA 24VDCμT85 5e4； 3RA 125/250VACμT85 1E4 3RA 24VDCμT85 5e4； 5RA 125/250VACμT85 1E4 3RA 24VDCμT85 1 e4
Electrical lifespan: 10000@5A
Insulation resistance: minimum 100 M Ω.
Insulation strength: minimum 500VAC (50-60HZ) per minute between live parts; Minimum 1500VAC (50-60HZ) per minute between live parts and non live metal parts
Working temperature: -40 º C to 85 º C
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA

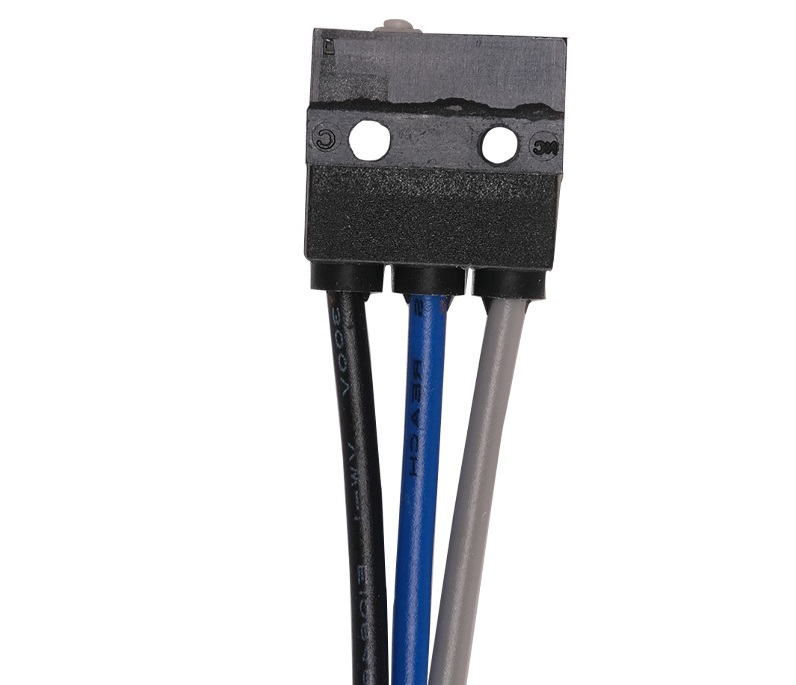

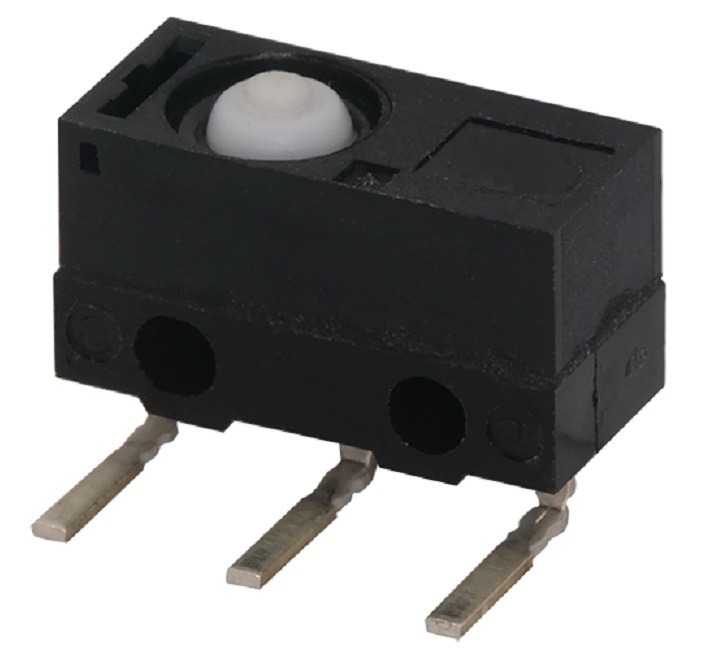

The KSD-ZMT series sealed microswitches from Costa Switch Factory are typically used for automotive interior applications that require a waterproof microswitch detection mechanism. Kosda Switch Factory is highly suitable for PCB inspection switches, communication equipment, and various types of testing equipment. The KSD-ZMT series sealed switches have a compact size and IP67 sealing rating (ideal for limited space), providing applications with a longer electrical and mechanical lifespan, ensuring they can withstand repeated use.
Current Rating:0.1A
Circuit:SPST
Mounting Type:PCB
Sealing:Sealed - IP67
Illumination:No/None
Switch Function:Snap Acting
Electrical Life Cycles:10,000
Voltage Rating - AC:250V
Voltage Rating - DC:24 VDC
Actuator Type:Button
Termination Style:PC Thru Hole
Additional Features:Oper Pos (7.0 +/- 0.2)
Operating Force, Torque:100
Release Force:25
Pretravel:0.5
Differential Travel:0.12
Overtravel:0.2
Packaging:Tray
