KSD-KMR7 series技术特性
微型 SMT 顶部操作轻触开关标准规范
电气银金
最大功率：1瓦0.2瓦
最大电压：32伏直流32伏直流
最低电压：20mVDC 20mVDC
最大电流：50 mA 10 mA
最小电流：1mA*1mA*
介电强度：≥250 Vrms
接触电阻：≤100 mΩ
绝缘电阻：≥1GΩ
弹跳时间：≤3ms
*对于ULC版本，1.8 VDC时的最小电流为1µA
环保银金
工作温度：-40℃至85℃-40℃至125℃
储存温度：-55˚C至85˚C-55˚C至125˚C
流程
焊接：无铅回流焊接工艺符合
IEC 61760-1标准。
包装
每卷6000件
外径330毫米±2毫米
注：以上列出的规格适用于具有标准选项的开关。
有关特定和自定义开关的信息，请咨询客户服务中心
规范
功能：瞬时动作
接触布置：1接触=SPST，N.O。
端子：用于SMT的鸥翼型
机械规格
功能：瞬时动作
接触布置：1接触=SPST，N.O。
端子：用于SMT的鸥翼型
机械
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA
产品应用：医疗电器、航模、无人机、灯具照明、通讯、控制手柄、速控设备、新能源、航模设备、仪表仪器、小家电、汽车等领域

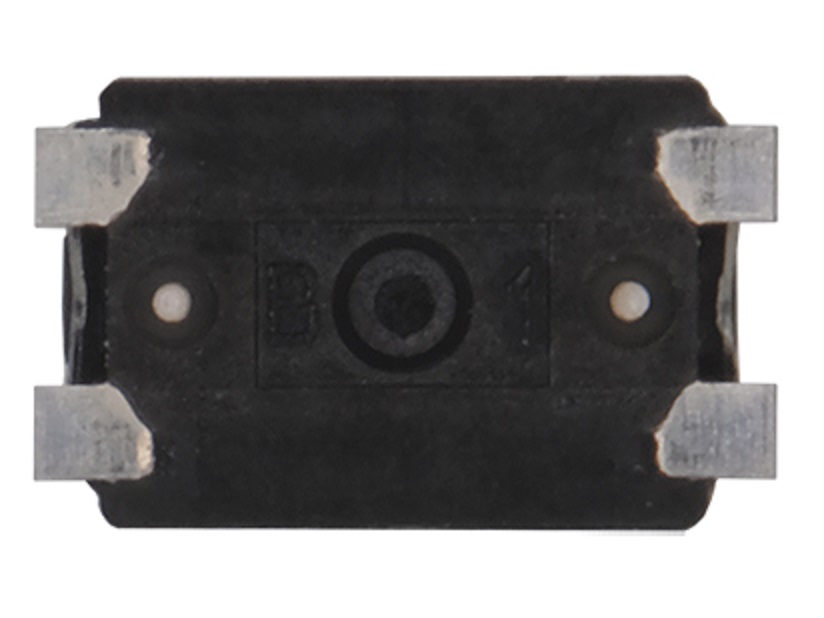

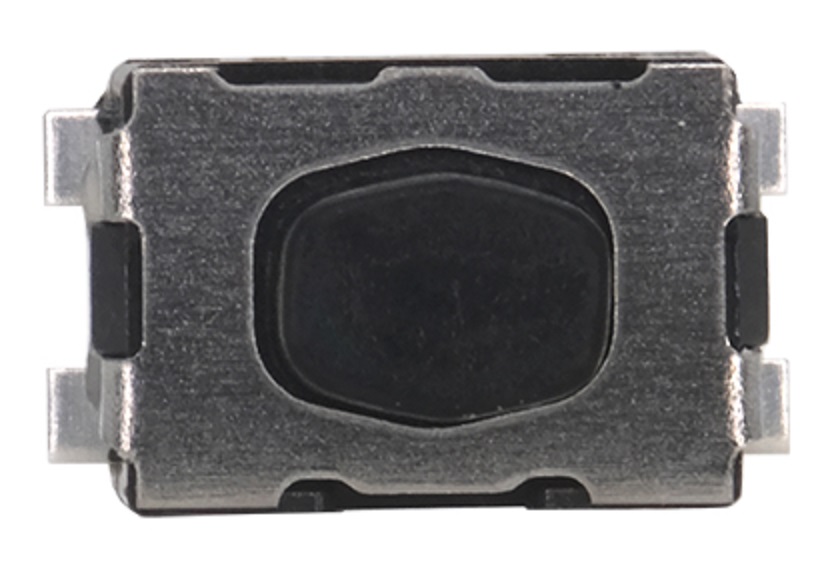

科斯达开关厂KSD-KMR7 series 贴片开关经久耐用的 KSD-KMR7 系列微型SMT触觉开关顶部操作轻触开关足够坚固, 是常规使用和在持续接触不同元素的环境下工作的工业、医疗和汽车应用的理想选择。KSD-KMR7 有出色的触感, 是具有超低电流性能的 IP67 等级轻触开关。
Technical features of KSD-KMR7 series
Standard specification for micro SMT top operation tactile switch
Electrical Silver Gold
Maximum power: 1 watt 0.2 watts
Maximum voltage: 32 volts DC 32 volts DC
Minimum voltage: 20mVDC 20mVDC
Maximum current: 50 mA, 10 mA
Minimum current: 1mA * 1mA*
Dielectric strength: ≥ 250 Vrms
Contact resistance: ≤ 100 m Ω
Insulation resistance: ≥ 1G Ω
Bounce time: ≤ 3ms
*For the ULC version, the minimum current at 1.8 VDC is 1 µ A
Environmental Protection Silver Gold
Working temperature: -40 ℃ to 85 ℃ -40 ℃ to 125 ℃
Storage temperature: -55 ° C to 85 ° C -55 ° C to 125 ° C
technological process
Welding: lead-free reflow soldering process meets the requirements
IEC 61760-1 standard.
packing
6000 pieces per roll
Outer diameter 330 millimeters ± 2 millimeters
Note: The specifications listed above apply to switches with standard options.
For information on specific and custom switches, please consult the customer service center
standard
Function: Instantaneous action
Contact arrangement: 1 contact=SPST, N.O.
Terminal: gull wing shaped for SMT
Mechanical specifications
Function: Instantaneous action
Contact arrangement: 1 contact=SPST, N.O.
Terminal: gull wing shaped for SMT
Mechanics
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA
Product applications: medical appliances, model aircraft, drones, lighting fixtures, communication, control handles, speed control equipment, new energy, model aircraft equipment, instrumentation, small appliances, automobiles and other fields
KSD-KMR7 series SMT tactile switches from Kosda Switch Factory are durable. The KSD-KMR7 series micro SMT tactile switches are sturdy enough for top operation and are ideal for industrial, medical, and automotive applications that require regular use and continuous exposure to different elements. KSD-KMR7 has excellent tactile feedback and is an IP67 rated tactile switch with ultra-low current performance.
Current Rating:50mA @ 32VDC
Circuit:SPST-NO
Mounting Type:Surface Mount
Sealing:Sealed - IP67
Illumination:No/None
Switch Function:Off-Mom
Electrical Life Cycles:100,000
Actuator Type:Standard
Actuator Height off PCB, from Pins:
Actuator Orientation:Top Actuated
Termination Style:Gull Wing
Footprint:4,2 mm x 2,8 mm
Illumination Voltage (Nominal):
Illumination Type, Color:
Operating Force:120 gf
Additional Features:
Packaging:Tape & Reel
