KSD-KMR8 series技术特性
轻触开关迷你型 SMT 顶部操作
电子银
最大功率：1瓦
最大电压：32vdc
最低电压：20mVDC
最大电流：50mA
最小电流：1mA*
介电强度：≥250 Vrms
接触电阻：≤100 mΩ
绝缘电阻：≥1GΩ
弹跳时间：≤3ms
*对于ULC版本，1.8 VDC时的最小电流为1µA
环保银
工作温度：-40˚C至85˚C
储存温度：-55˚C至85˚C
流程
焊接：无铅回流焊接工艺符合
IEC 61760-1标准。
包装
卷装7000件
外径330毫米±2毫米
注：以上列出的规格适用于具有标准选项的开关。
有关特定和自定义开关的信息，请咨询客户服务中心。
规范
功能：瞬时动作
接触布置：1接触=SPST，N.O。
端子：用于SMT的鸥翼型
机械
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA
产品应用：医疗电器、航模、无人机、灯具照明、通讯、控制手柄、速控设备、新能源、航模设备、仪表仪器、小家电、汽车等领域
科斯达开关厂KSD-KMR8 series 系列微型 SMD按键开关 顶部操作轻触开关是一个带有 3 种操作力的塑胶触头开关。它为用户提供了极好的触感, 其耐用性使其成为恶劣工作环境的工业、医疗和汽车应用的理想之选。
Technical features of KSD-KMR8 series
Touch switch mini SMT top operation
Electronic silver
Maximum power: 1 watt
Maximum voltage: 32VDC
Minimum voltage: 20mVDC
Maximum current: 50mA
Minimum current: 1mA*
Dielectric strength: ≥ 250 Vrms
Contact resistance: ≤ 100 m Ω
Insulation resistance: ≥ 1G Ω
Bounce time: ≤ 3ms
*For the ULC version, the minimum current at 1.8 VDC is 1 µ A
Environmental Silver
Working temperature: -40 ° C to 85 ° C
Storage temperature: -55 ° C to 85 ° C
technological process
Welding: lead-free reflow soldering process meets the requirements
IEC 61760-1 standard.
packing
Roll up 7000 pieces
Outer diameter 330 millimeters ± 2 millimeters
Note: The specifications listed above apply to switches with standard options.
For information on specific and custom switches, please consult the customer service center.
standard
Function: Instantaneous action
Contact arrangement: 1 contact=SPST, N.O.
Terminal: gull wing shaped for SMT
Mechanics
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA
Product applications: medical appliances, model aircraft, drones, lighting fixtures, communication, control handles, speed control equipment, new energy, model aircraft equipment, instrumentation, small appliances, automobiles and other fields

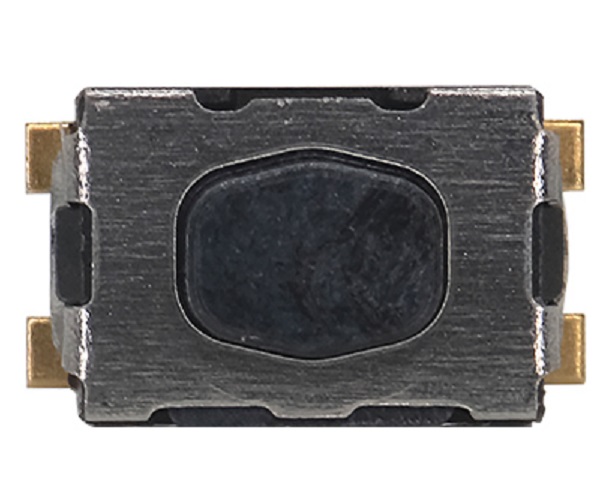

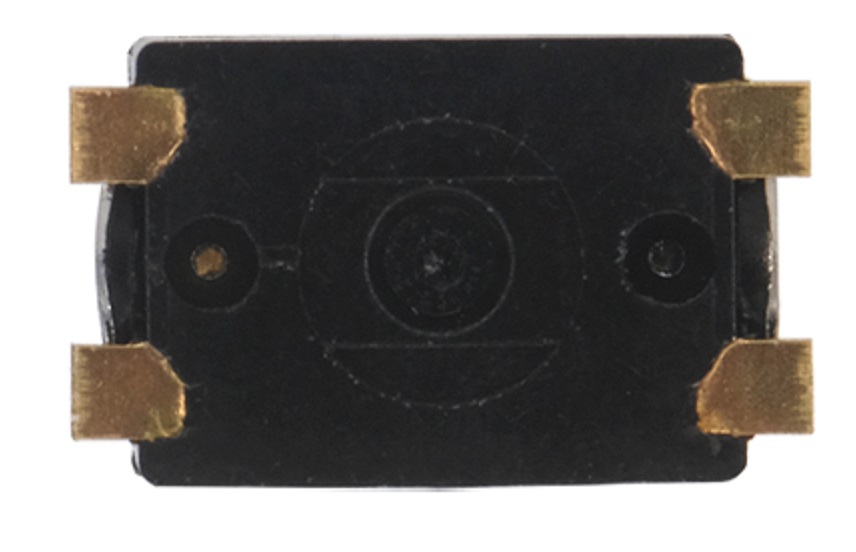

The KSD-KMR8 series micro SMD key switch from Kosda Switch Factory is a top operated tactile switch with three types of operating forces made of plastic contacts. It provides users with excellent tactile experience, and its durability makes it an ideal choice for industrial, medical, and automotive applications in harsh working environments.
Current Rating:50mA @ 32VDC
Circuit:SPST-NO
Mounting Type:Surface Mount
Sealing:Sealed - IP40
Illumination:No/None
Switch Function:Off-Mom
Electrical Life Cycles:200,000
Actuator Type:Standard
Actuator Height off PCB, from Pins:1.90mm
Actuator Orientation:Top Actuated
Termination Style:
Gull Wing
Footprint:4.60mm x 2.80mm
Illumination Voltage (Nominal):
Illumination Type, Color:
Operating Force:120gf
Additional Features:Grounding Pin
Packaging:Tape & Reel
